Battery Negative Cable Replacement

Battery Negative Cable Replacement

Removal Procedure

1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection).

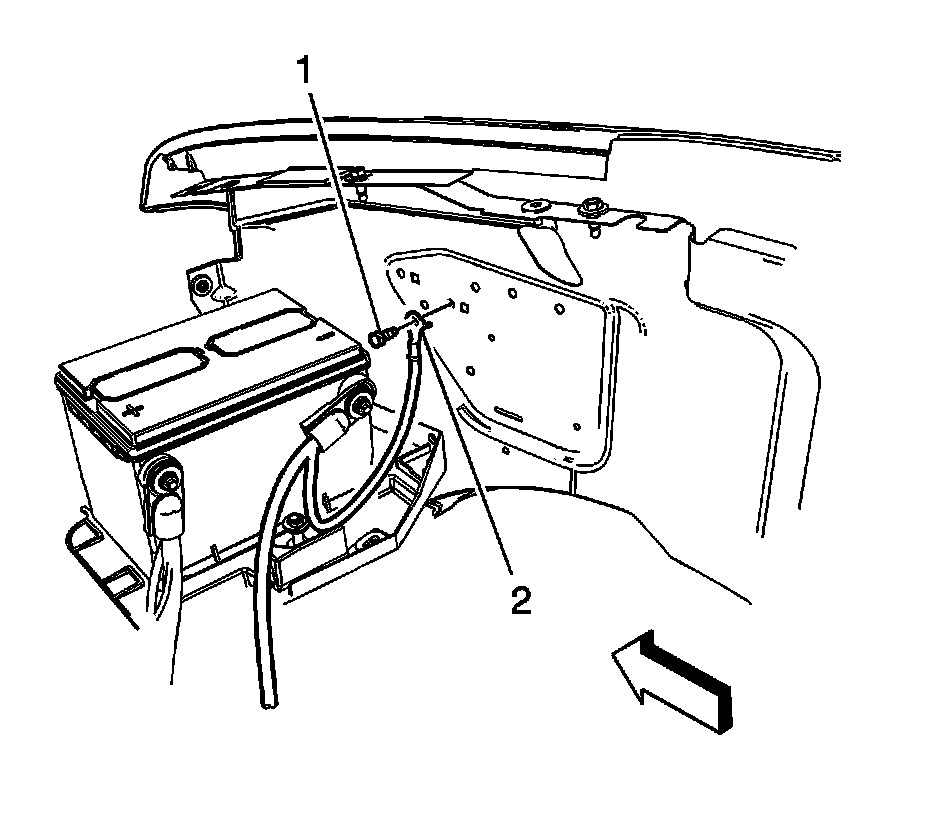

2. Remove the battery negative cable ground bolt (1) and terminal (2), from the inner fender panel.

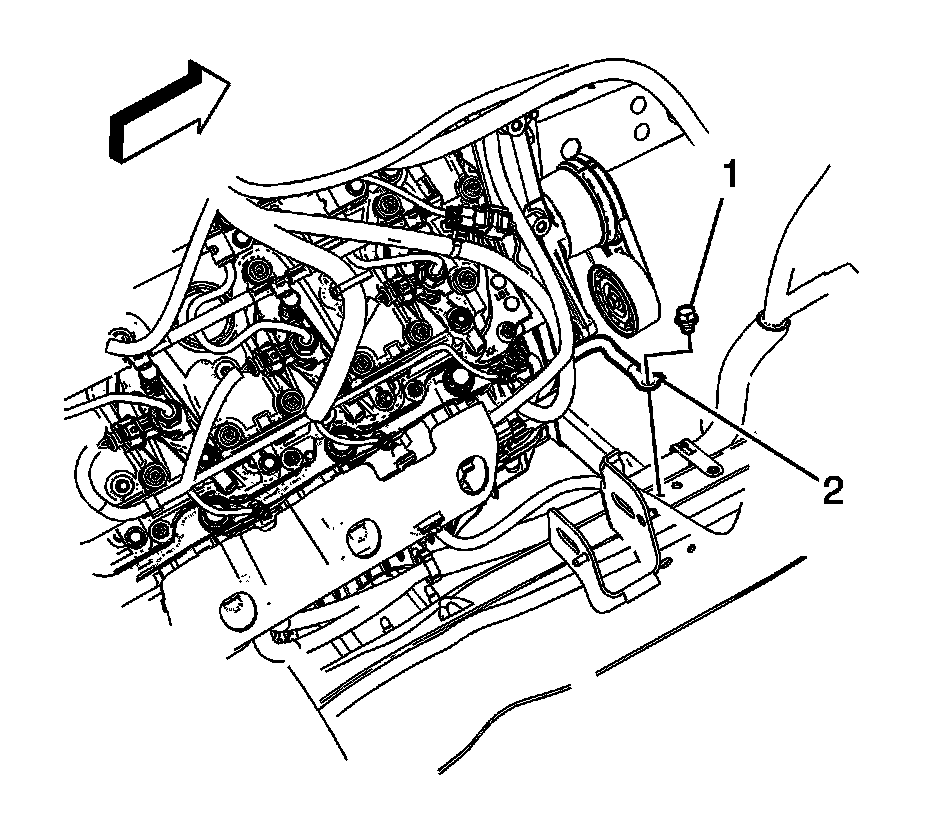

3. Remove the battery negative frame ground bolt (1) and terminal (2), from the right chassis frame.

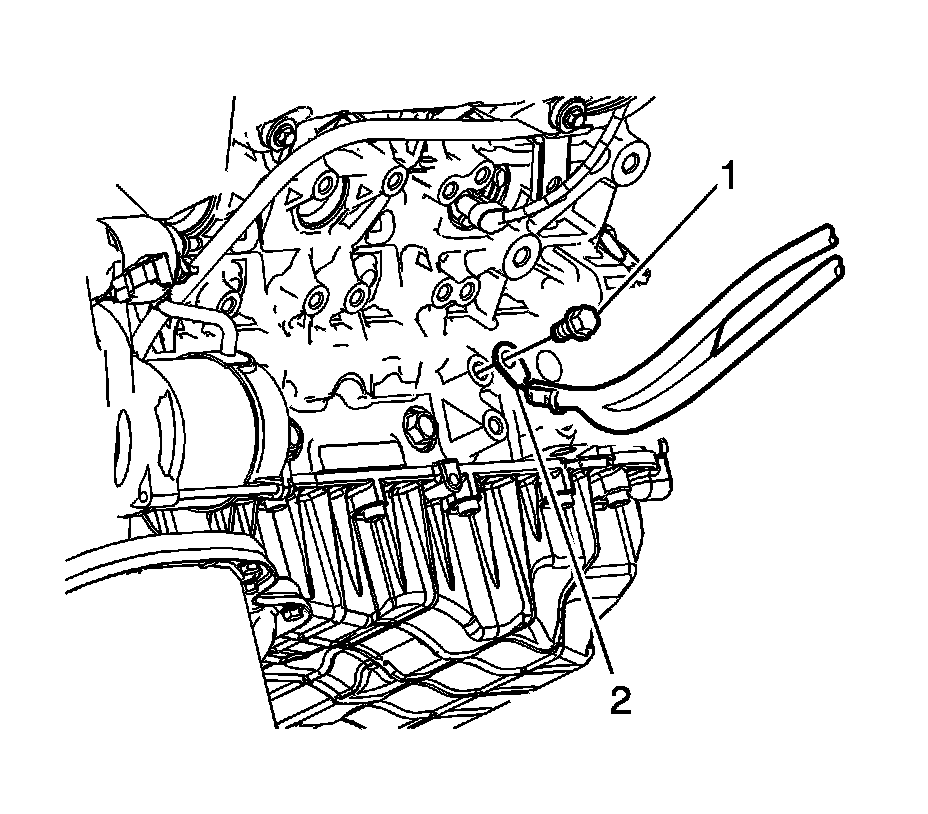

4. Disconnect the battery negative cable engine ground bolt (1) and terminal (2) from the right side engine block.
5. Remove the battery negative cable from the vehicle.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the battery negative terminal (2) to the right frame rail and tighten bolt (1) to 25 Nm (18 lb ft)




2. Connect the battery negative cable lead (2) to the engine block and tighten bolt (1) to 25 Nm (18 lb ft).




3. Install the battery negative cable terminal (2) to the right inner fender and tighten bolt (1) to 14 Nm (9 lb ft)
4. Connect the negative cable to the battery. Refer to Battery Negative Cable Disconnection and Connection (Battery Negative Cable Disconnection and Connection).
