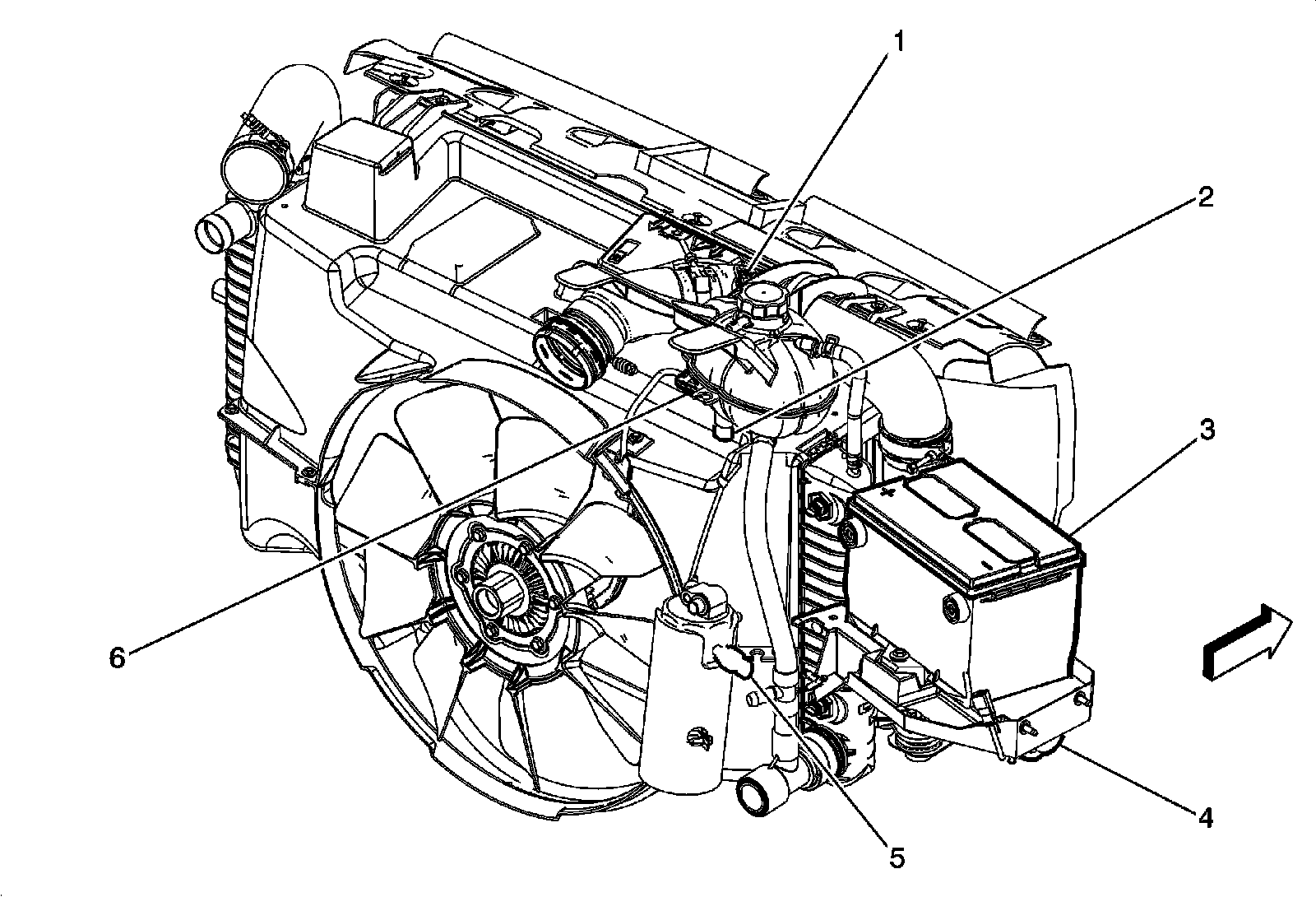

Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

Front of Engine Compartment Components (LGH)




1 - Charge Air Cooler Outlet Temperature Sensor
2 - Engine Coolant Level Switch
3 - Battery
4 - Vacuum Pump
5 - A/C Low Pressure Switch (C60)
6 - X142
