Top of Engine




Powertrain Component Views

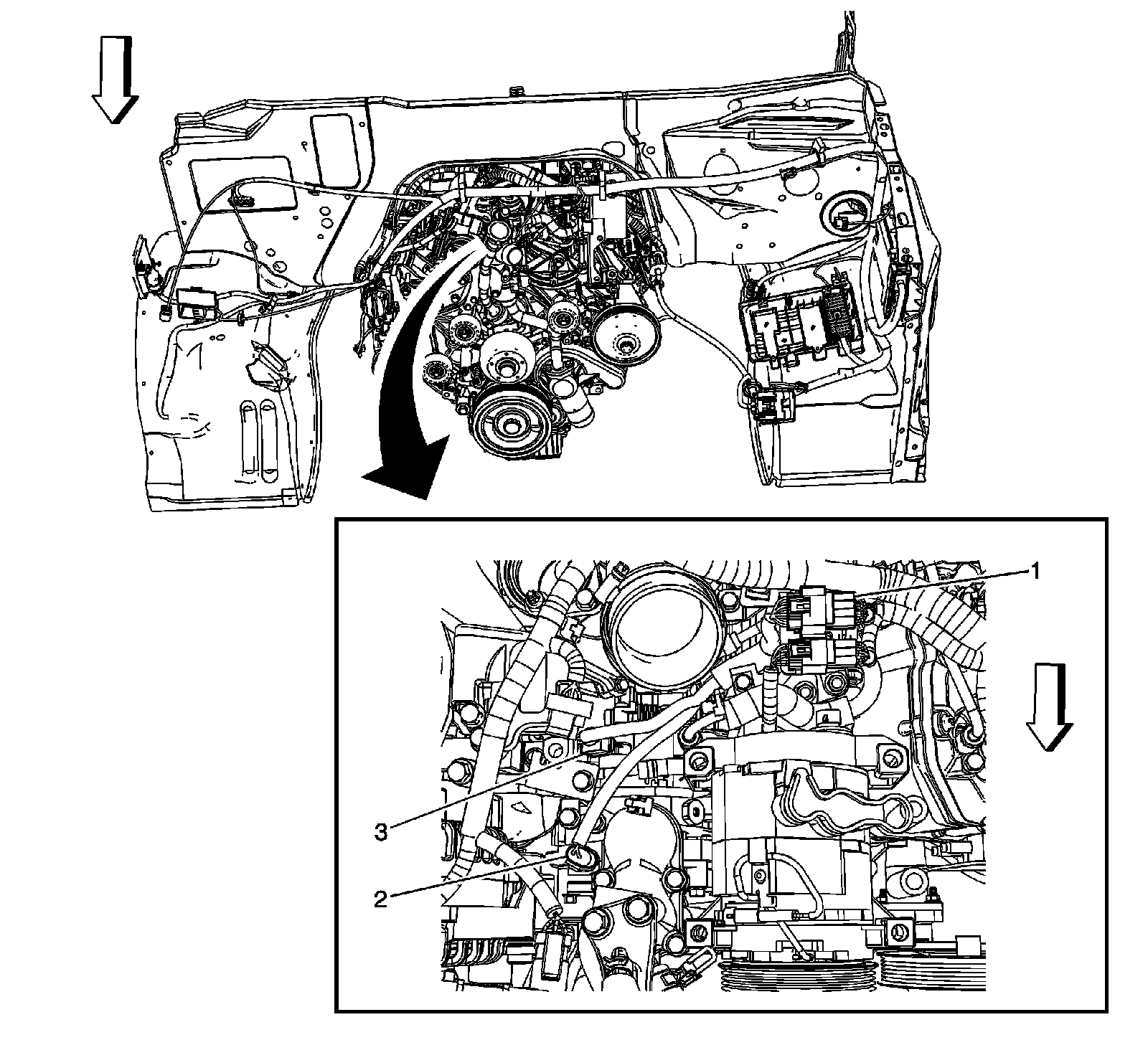

Top of Engine (LMM)




1 - X111
2 - Engine Coolant Temperature (ECT) Sensor
3 - Fuel Pressure Regulator
