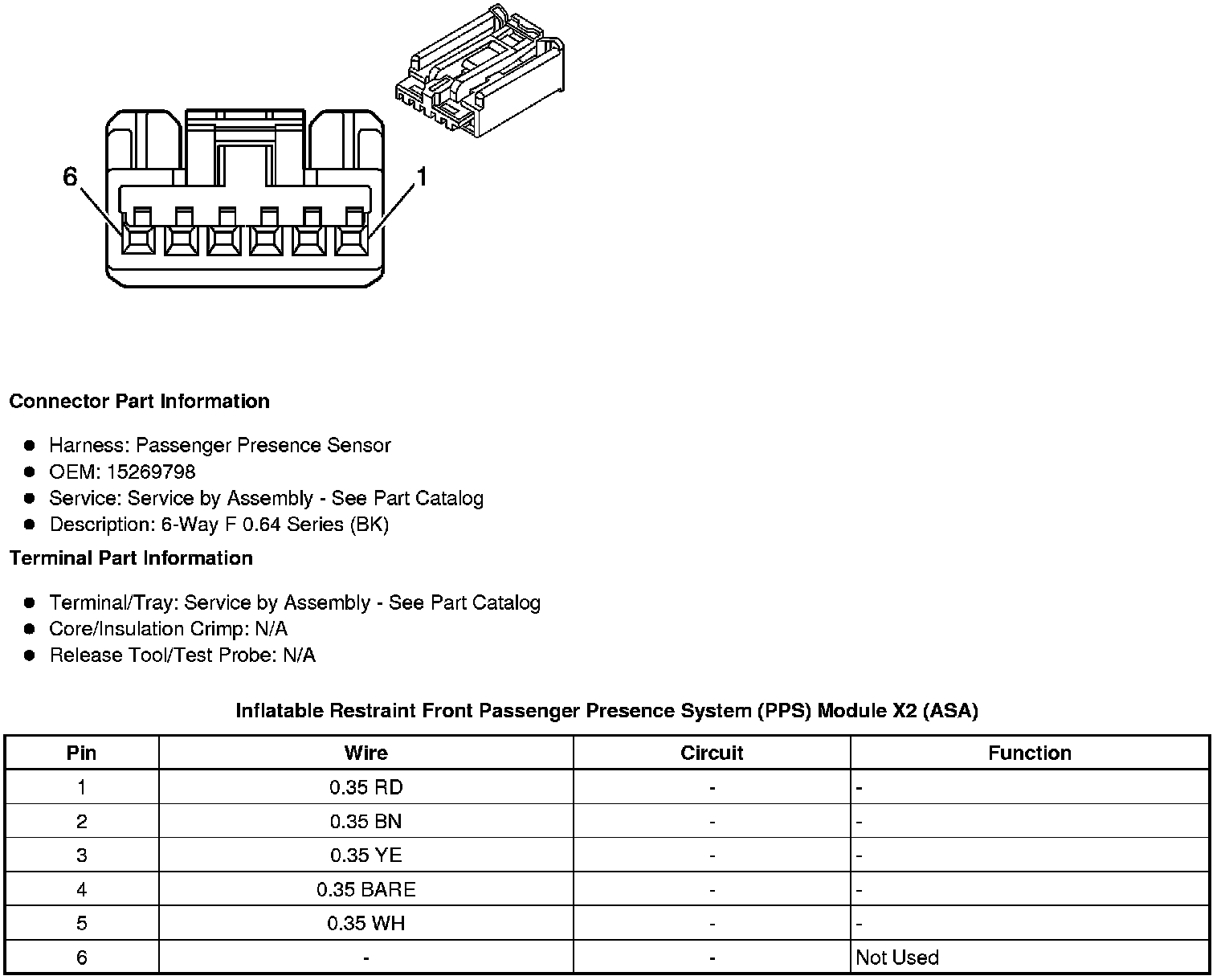

Inflatable Restraint Front Passenger Presence System (PPS) Module X2 (ASA)




Component Connector End Views

Inflatable Restraint Front Passenger Presence System (PPS) Module X2 (ASA)
