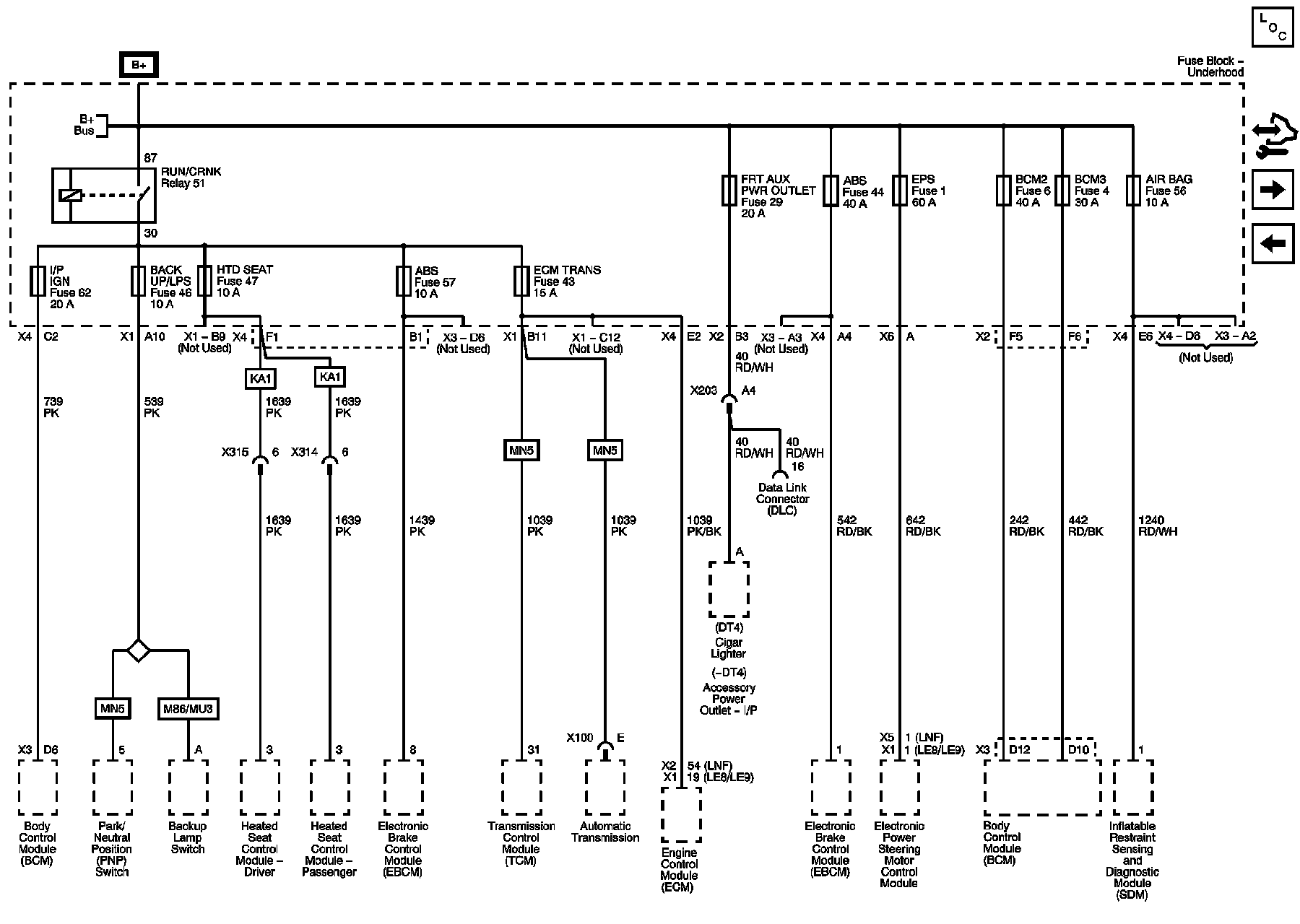

Power Distribution Schematic 2
Power Distribution Schematics
ABS (10A), ABS (40A), AIR BAG, BACK UP/LPS, BCM2, BCM3, ECM TRANS, EPS, FRT AUX PWR OUTLET, HTD SEAT, and I/P IGN Fuses
