Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Schematics
>>
Power Distribution Schematic 4
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Distribution Schematic 4
Power Distribution Schematics

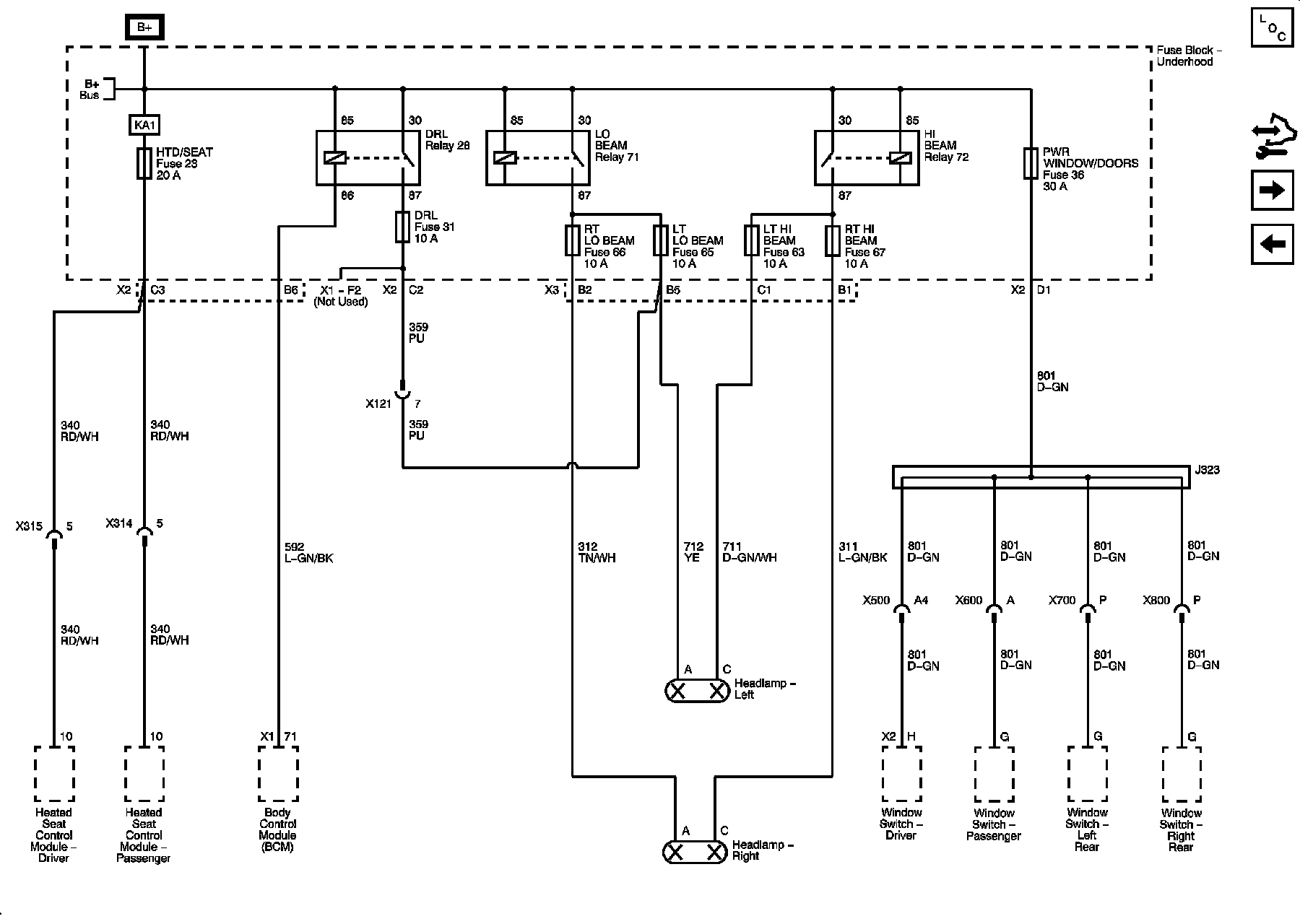

DRL, HTD/SEAT, LT HI BEAM, LT LO BEAM, PWR WINDOW/DOORS, RT HI BEAM, and RT LO BEAM Fuses
