Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Schematics
>>
Power Distribution Schematic 5
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Distribution Schematic 5
Power Distribution Schematics

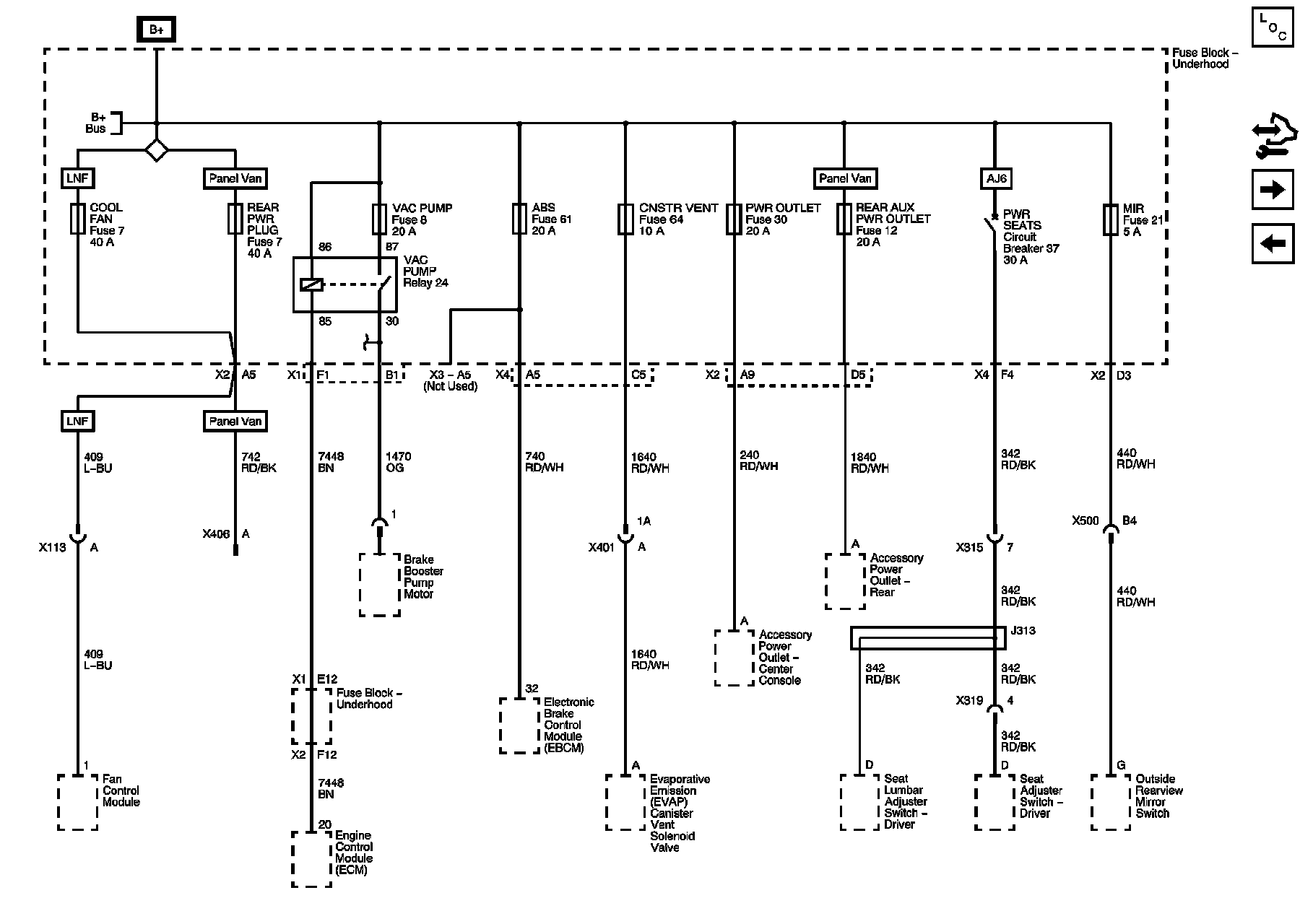

ABS (20A), CNSTR VENT, COOL FAN, MIR, PWR OUTLET, REAR AUX PWR OUTLET, REAR PWR PLUG, and VAC PUMP Fuses
