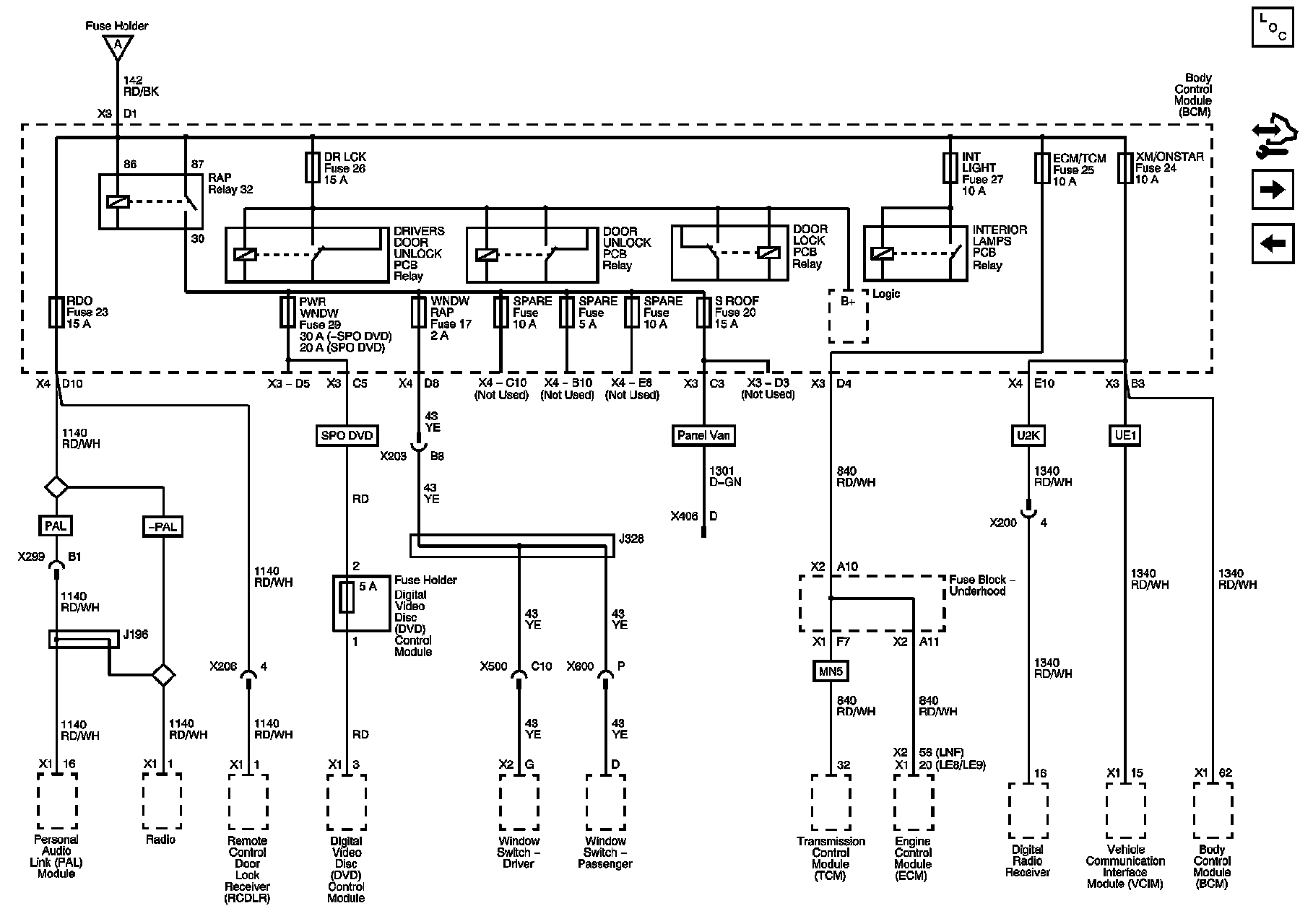

Power Distribution Schematic 6




Power Distribution Schematics

DR LCK, ECM/TCM, INT LIGHT, PWR WINDW, RDO, SPARE, S ROOF, WNDW RAP, and XM/ONSTAR Fuses
