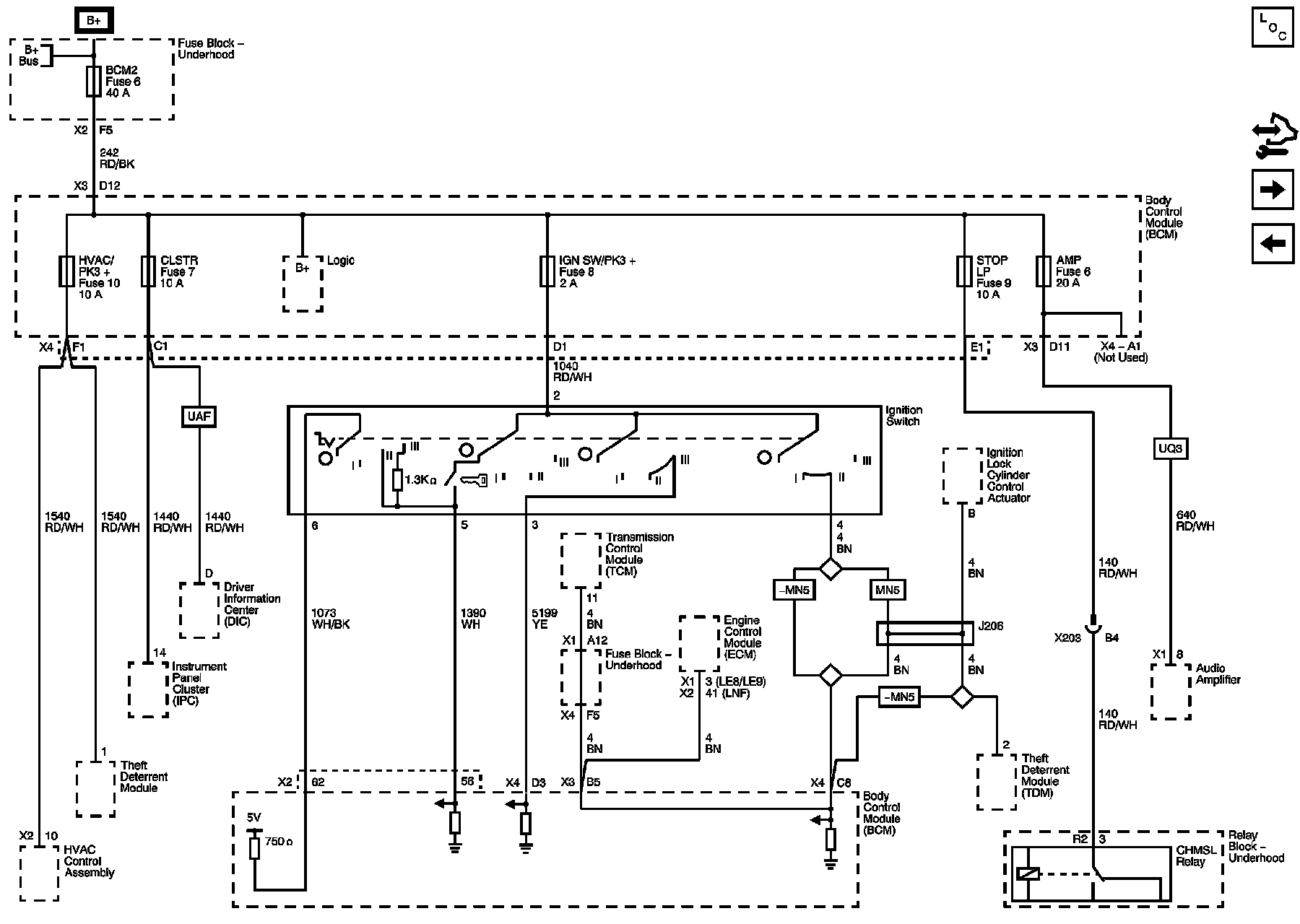

Power Distribution Schematic 7




Power Distribution Schematics

AMP, BCM2, CLSTR, HVAC/PK3+, IGN SW/PK3+, and STOP LP Fuses
