Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1

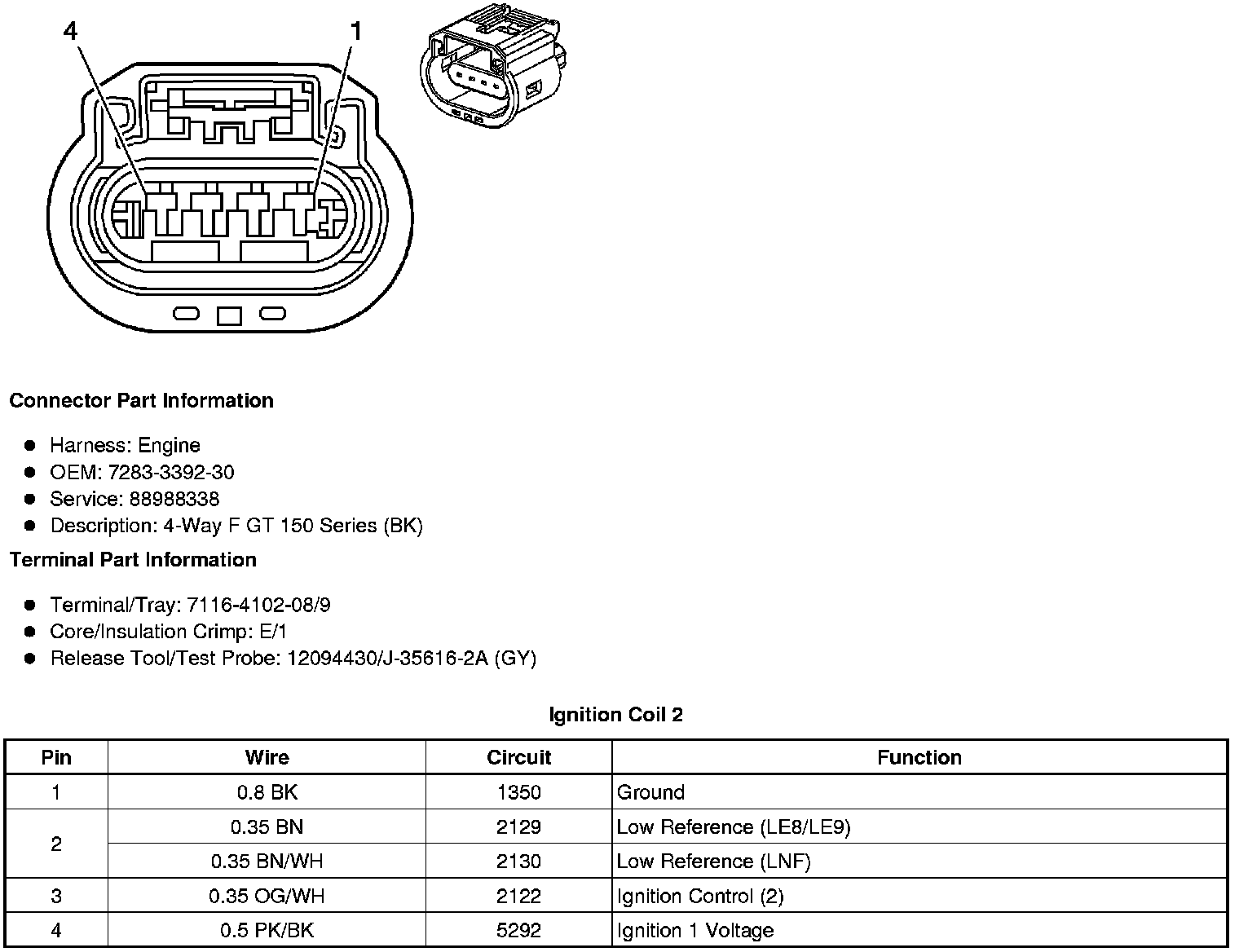

Ignition Coil 2

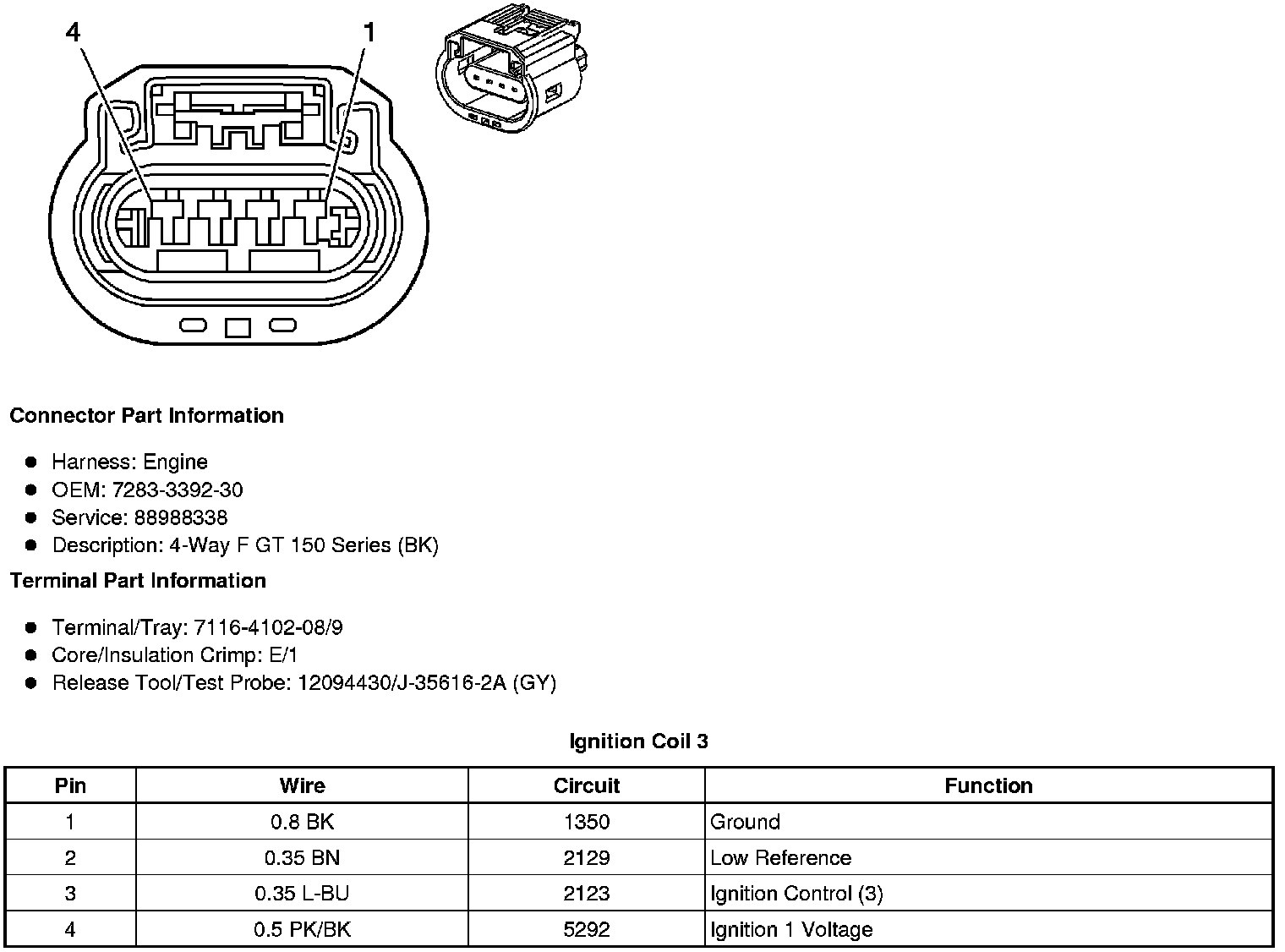

Ignition Coil 3

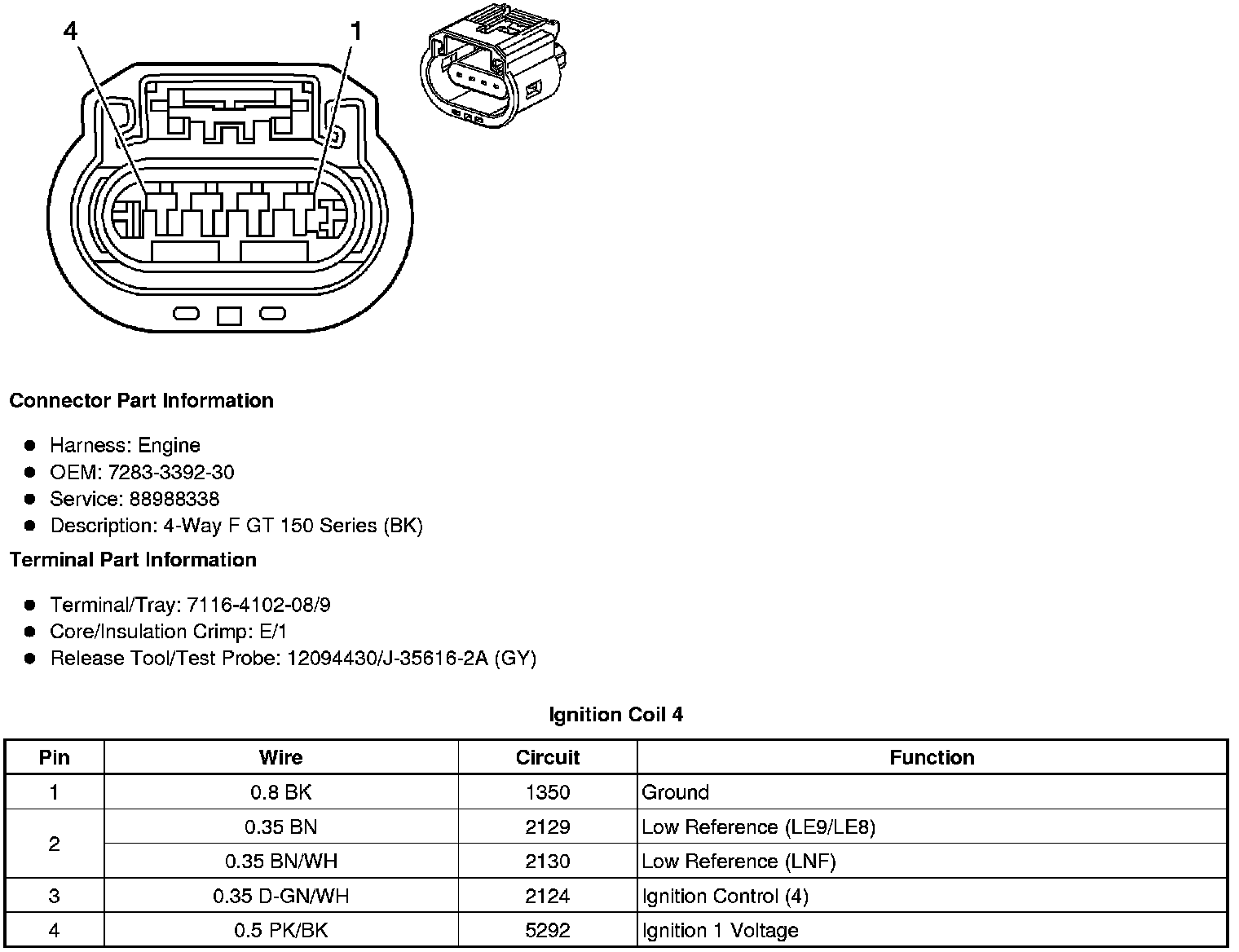

Ignition Coil 4
