Engine Control Module
Component Connector End Views

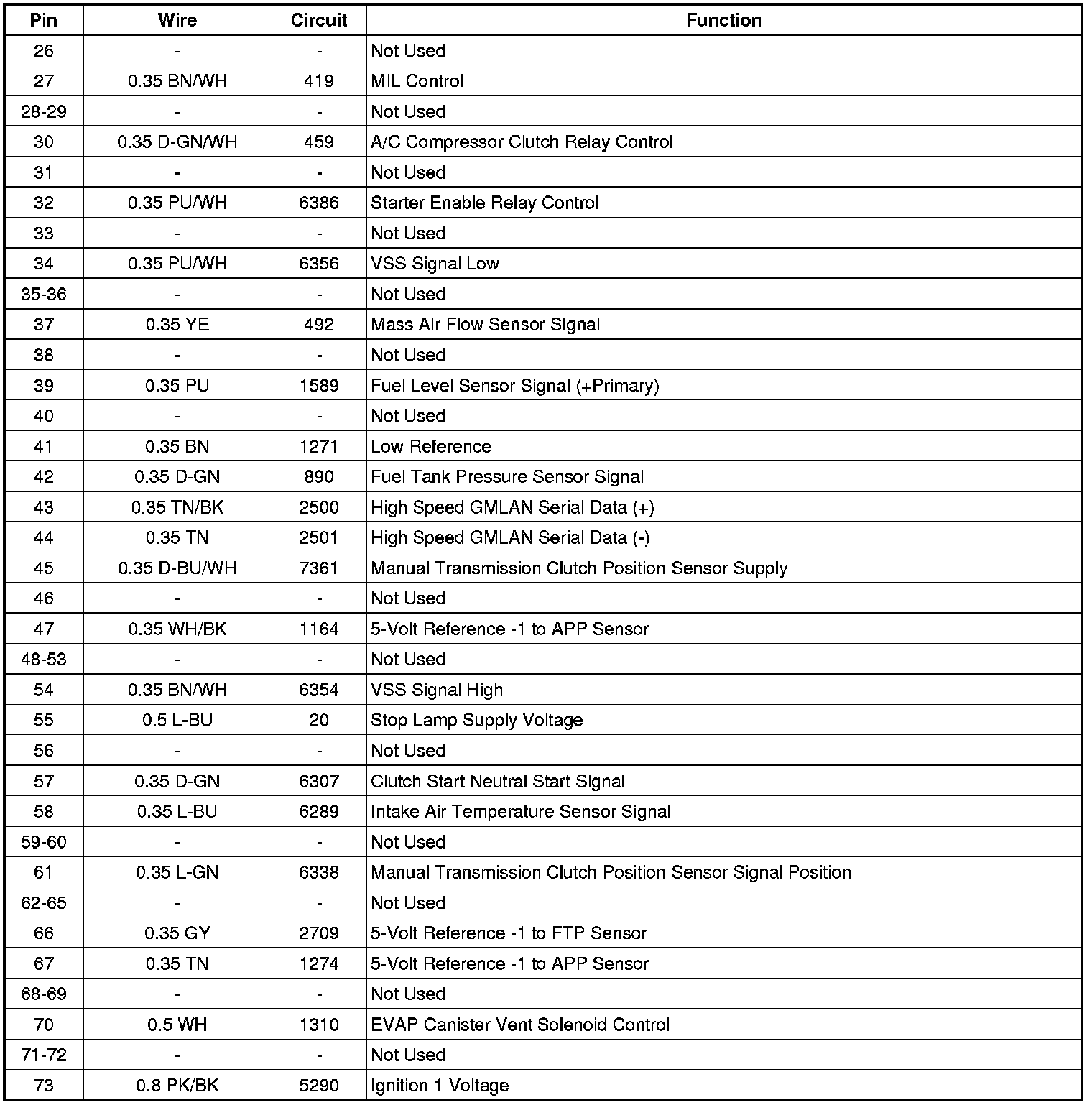

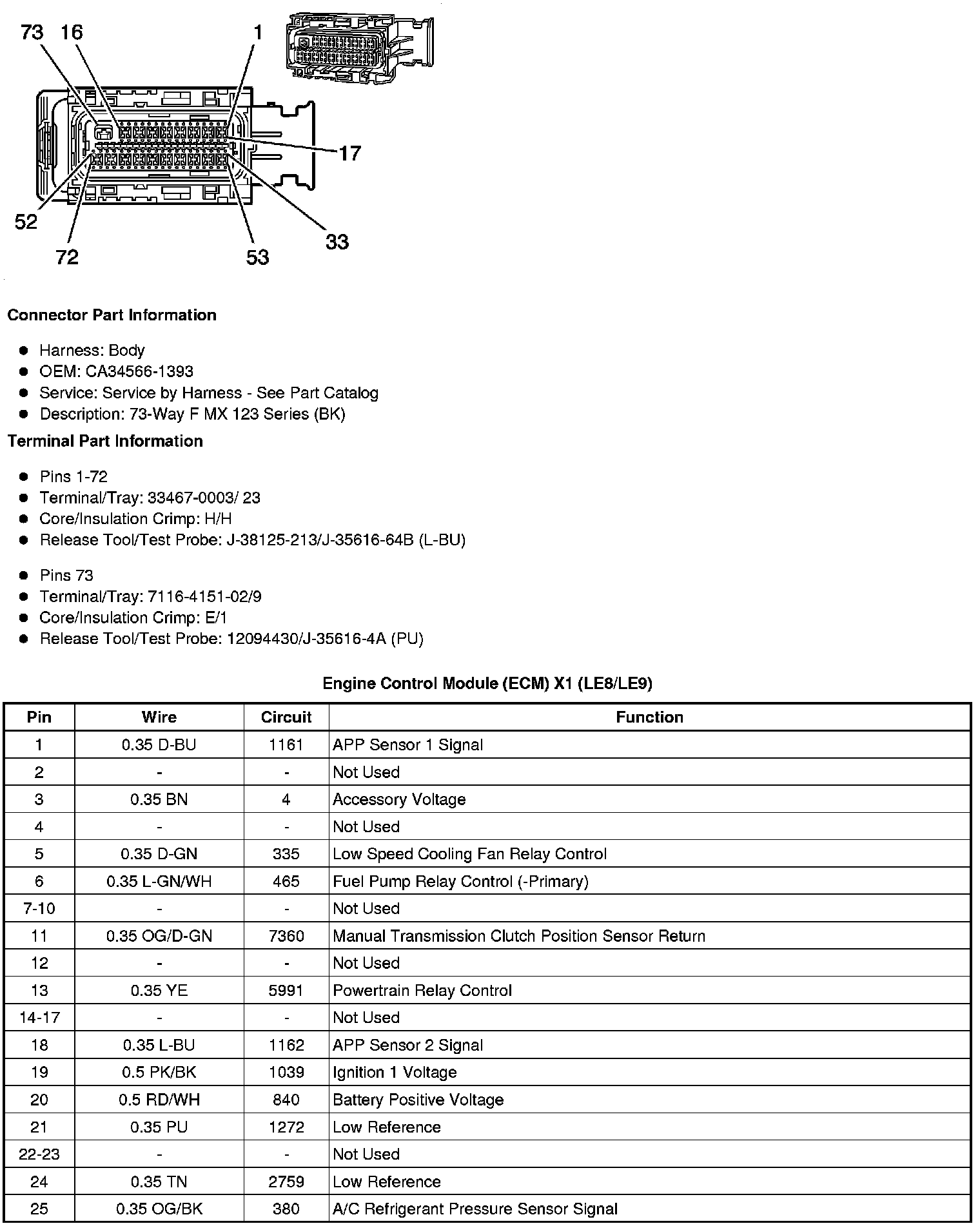

Engine Control Module (ECM) X1 (LE8/LE9)

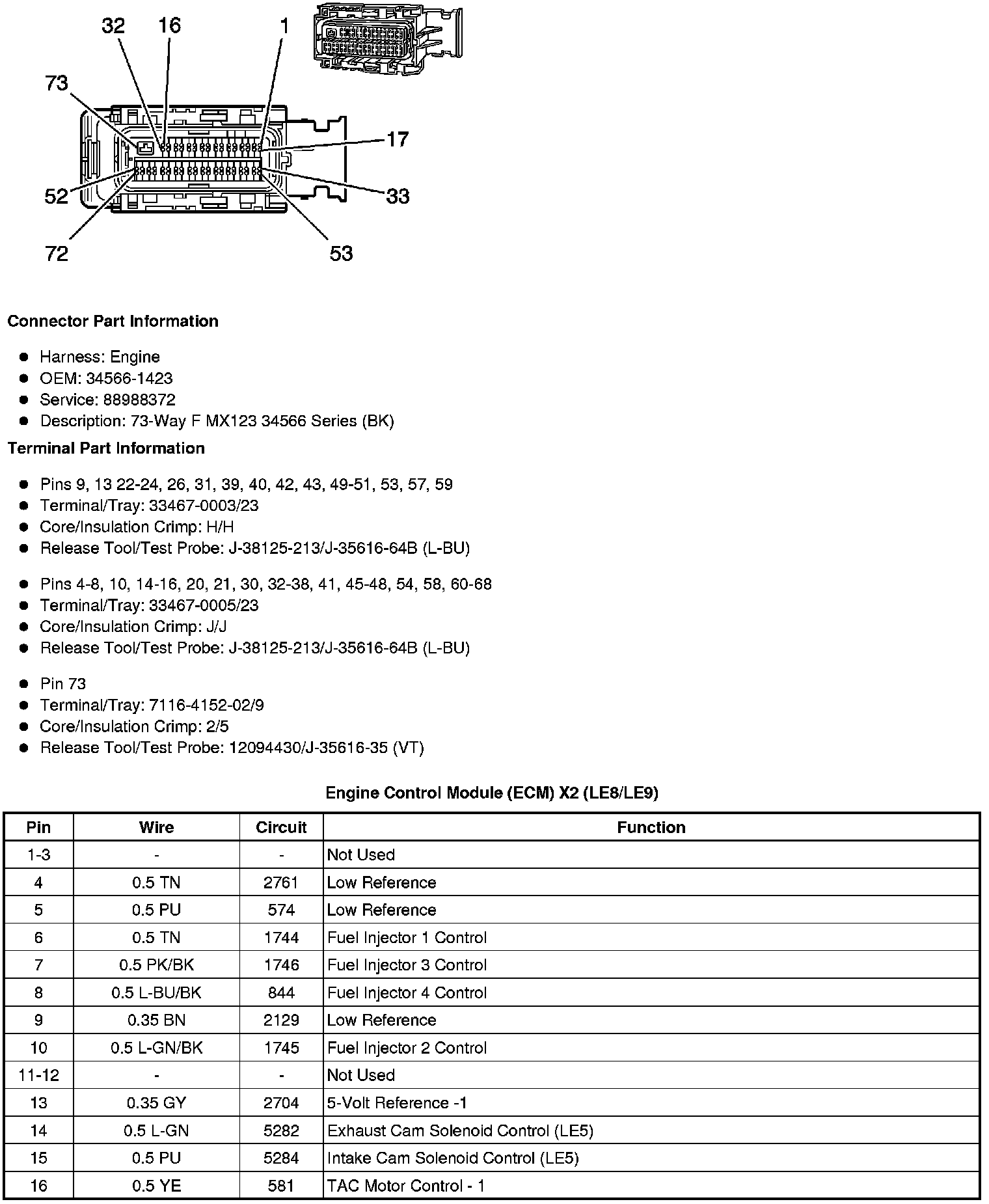

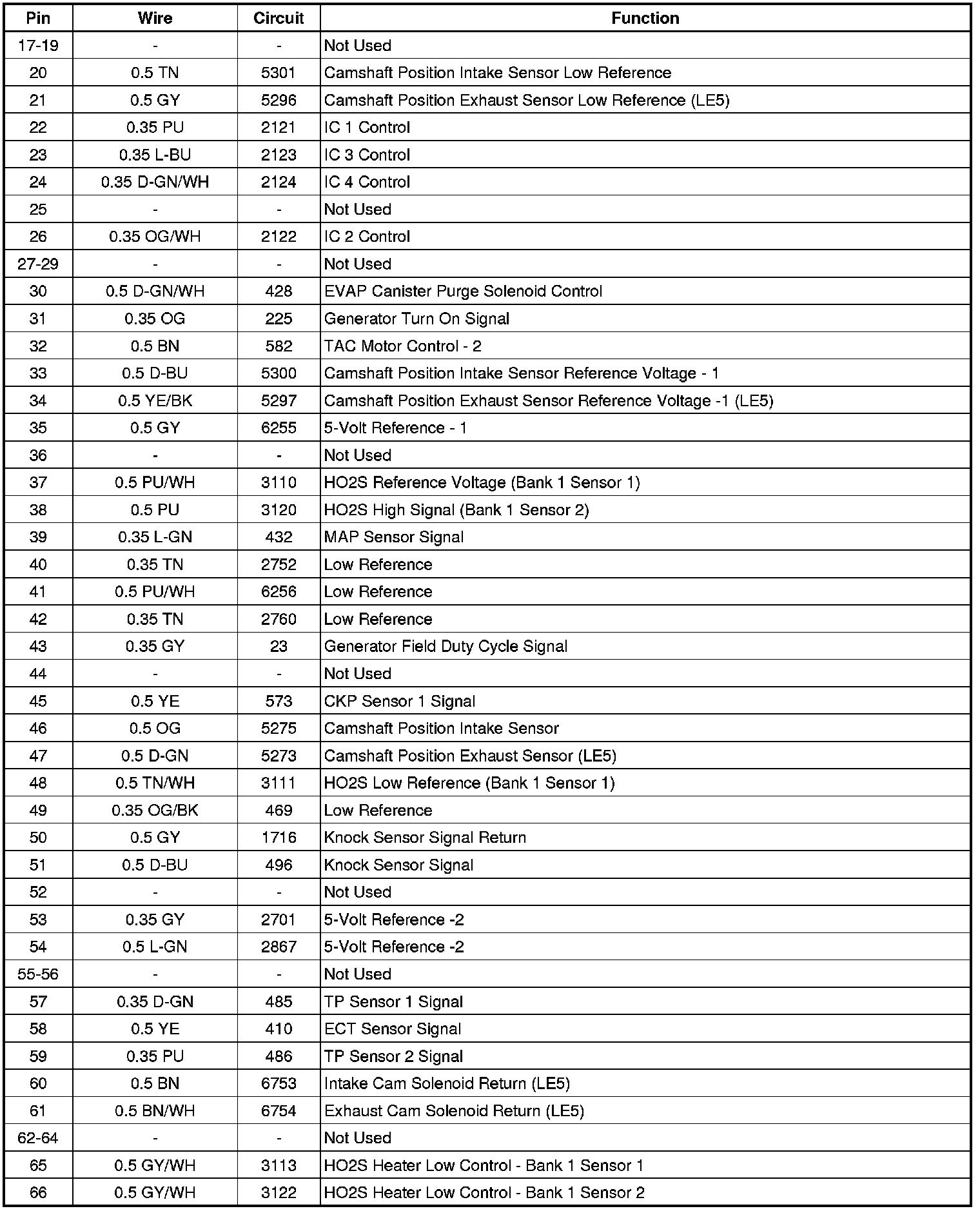

Engine Control Module (ECM) X2 (LE8/LE9)
