Front Side Door Window Switch Replacement

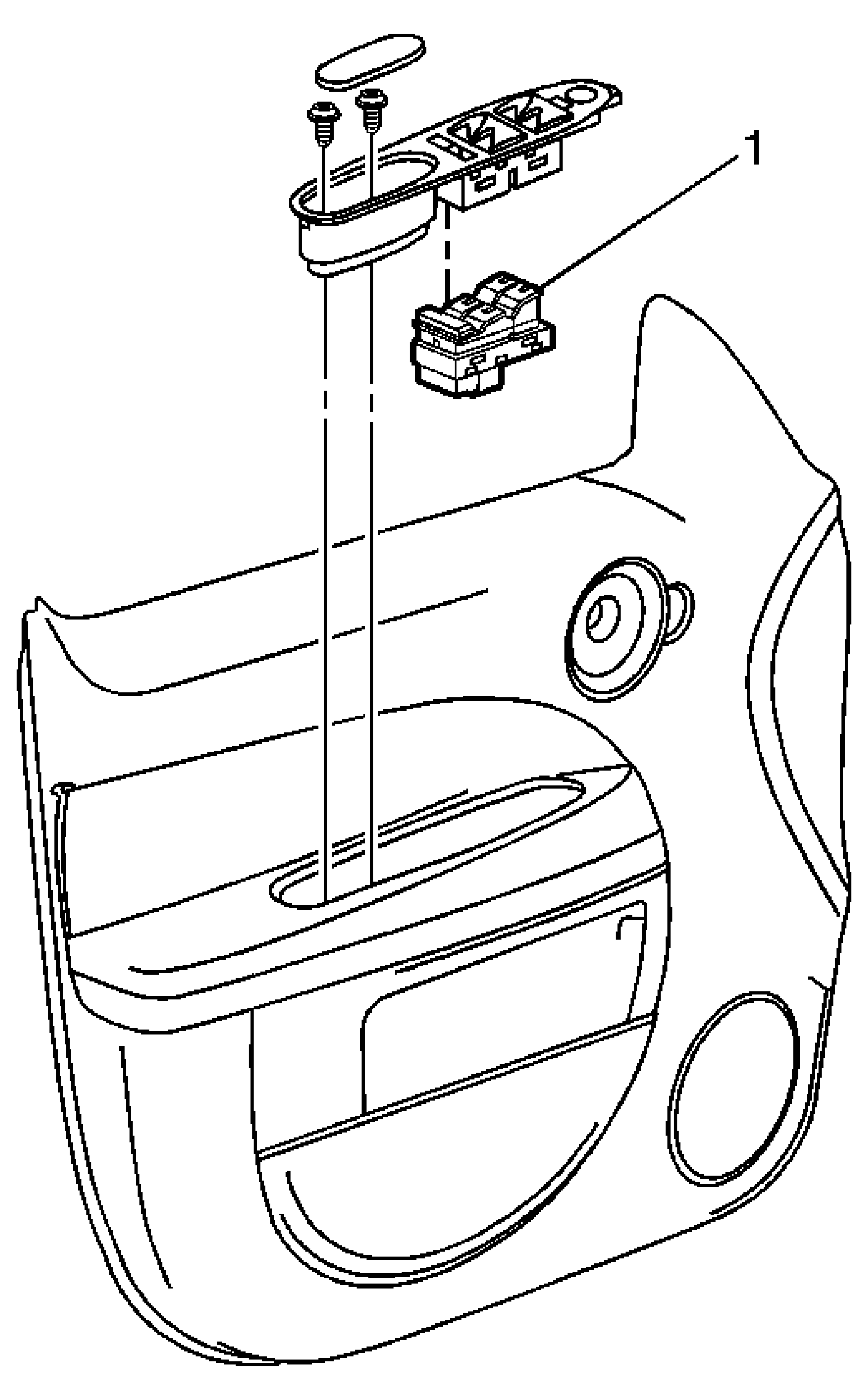

Fig 1: Front Side Door Window Switch
GM2105274Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement .
1 Power Window Switch
