Moveable Window Wiring Schematics: Front

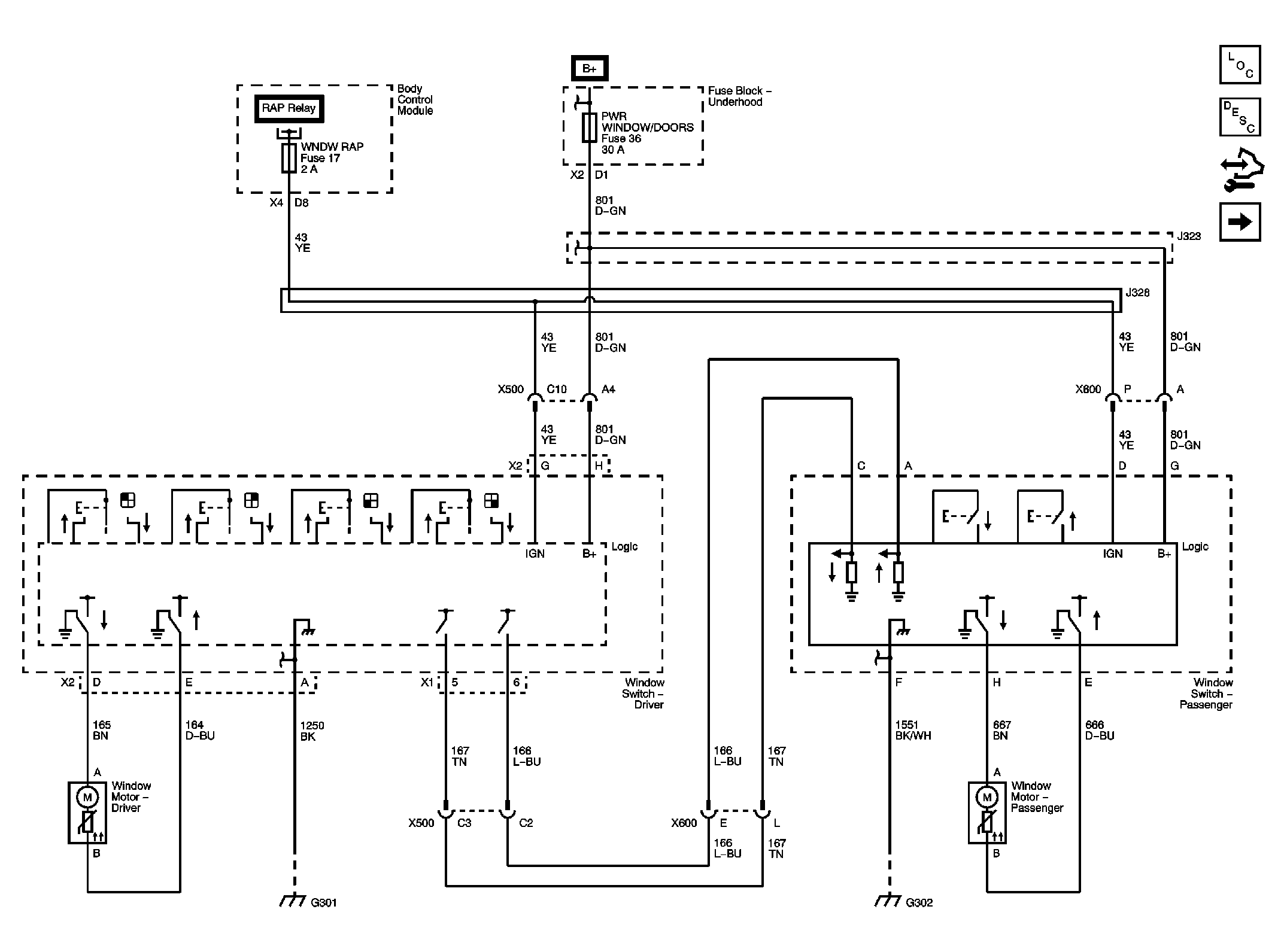

Fig 1: Front Wiring Schematic
GM2376764Courtesy of GENERAL MOTORS COMPANY
