Rear of the Engine Components

Rear of the Engine Components

Component Name Callout
Heated Oxygen Sensor (HO2S) 1 1
Crankshaft Position (CKP) Sensor 2
Knock Sensor (KS) 1 3

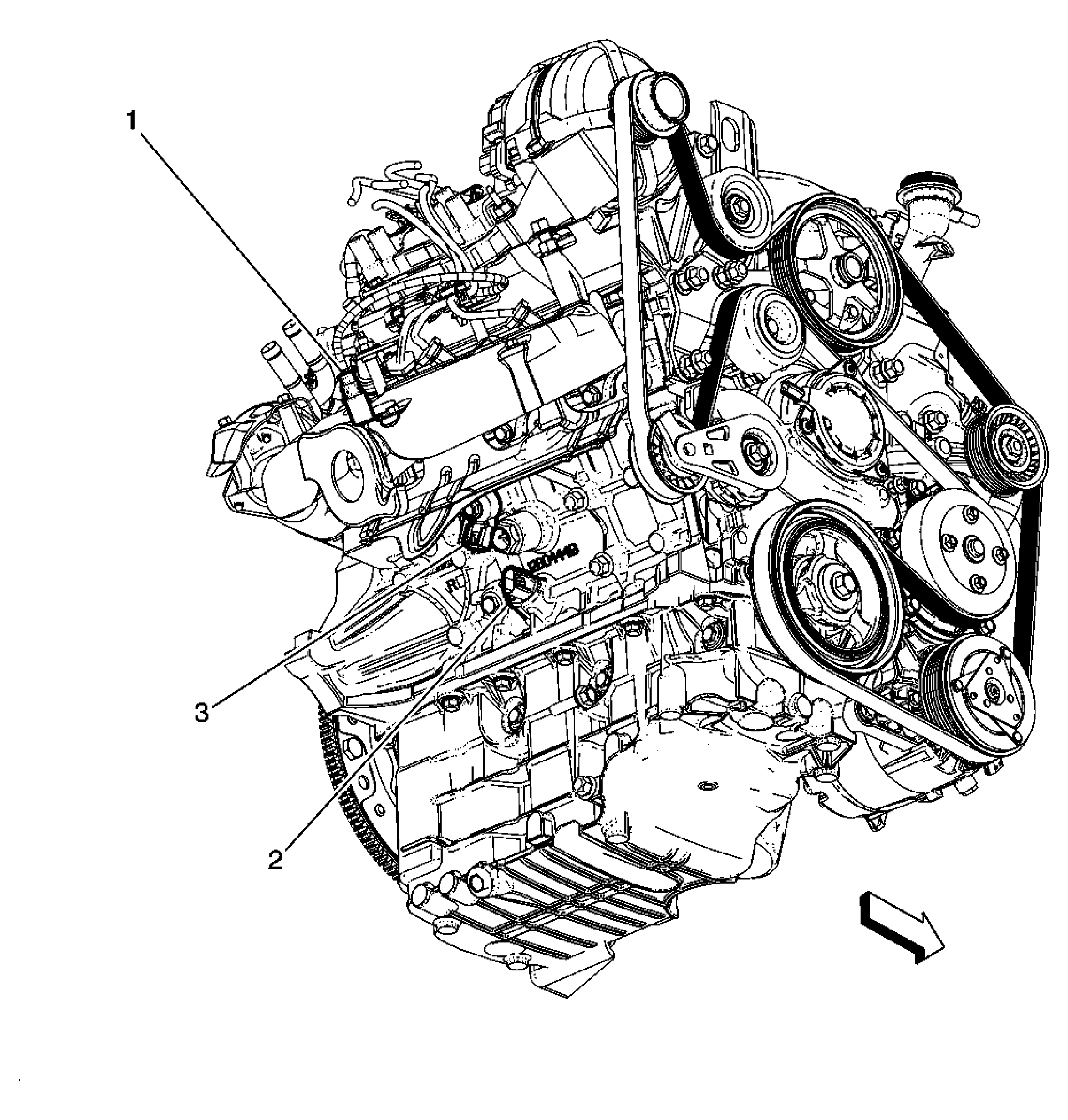

Fig 1: Rear of the Engine Components
GM2330270Courtesy of GENERAL MOTORS CORP.
