Above the Windshield Components

Passenger Compartment/Roof Component Views

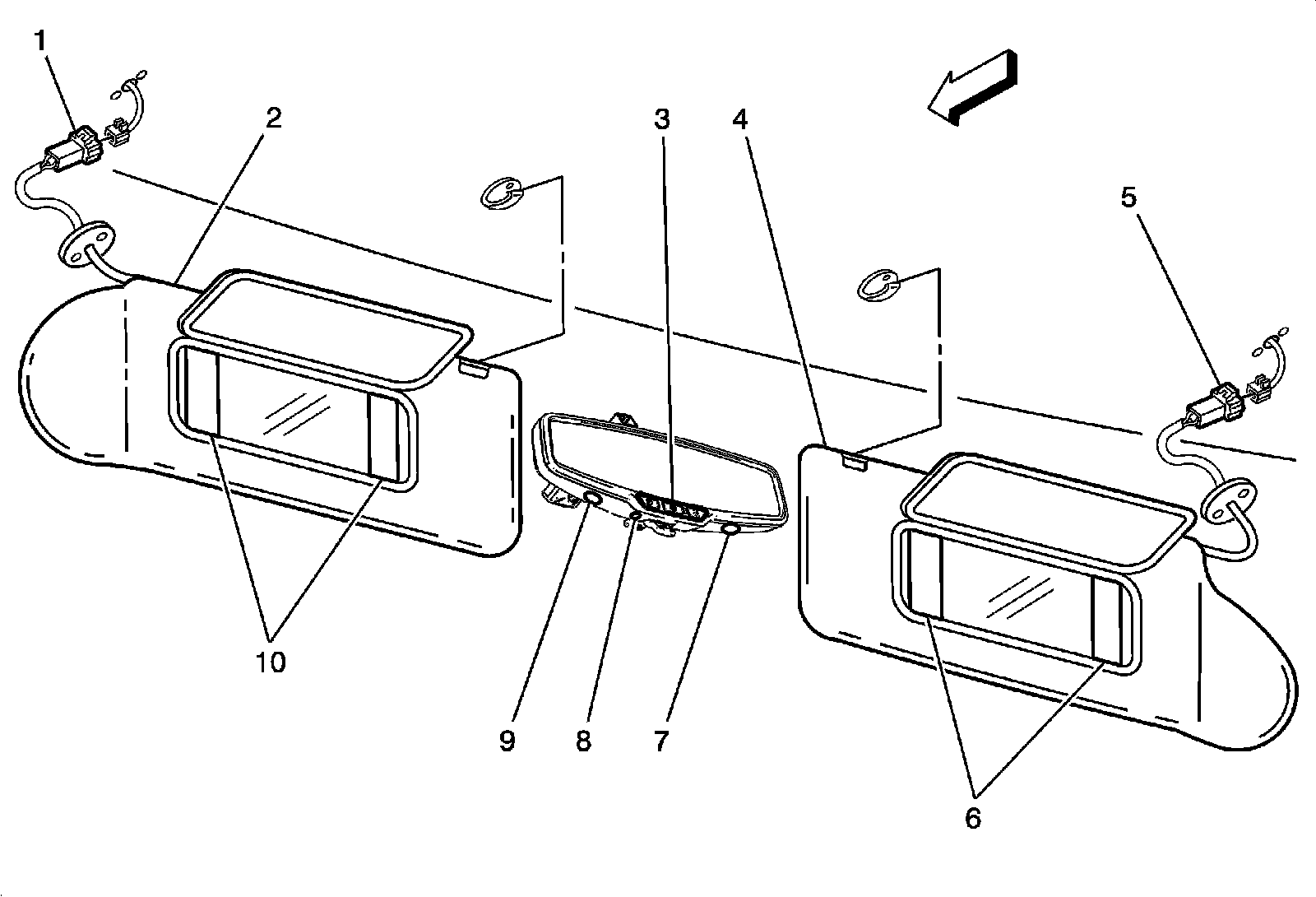

Above the Windshield Components




1 - Sunshade Connector - Left (DH6)
2 - Sunshade - Left (DH6)
3 - OnStar Button Assembly
4 - Sunshade - Right (DH6)
5 - Sunshade Connector - Right (DH6)
6 - Sunshade Lamps - Right
7 - Reading Lamp - Right
8 - Inside Rearview Mirror (ISRVM)
9 - Reading Lamp - Left
10 - Sunshade Lamps - Left
