Impala V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Schematics
>>
Power Distribution Schematics 12
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Distribution Schematics 12
Power Distribution Schematics

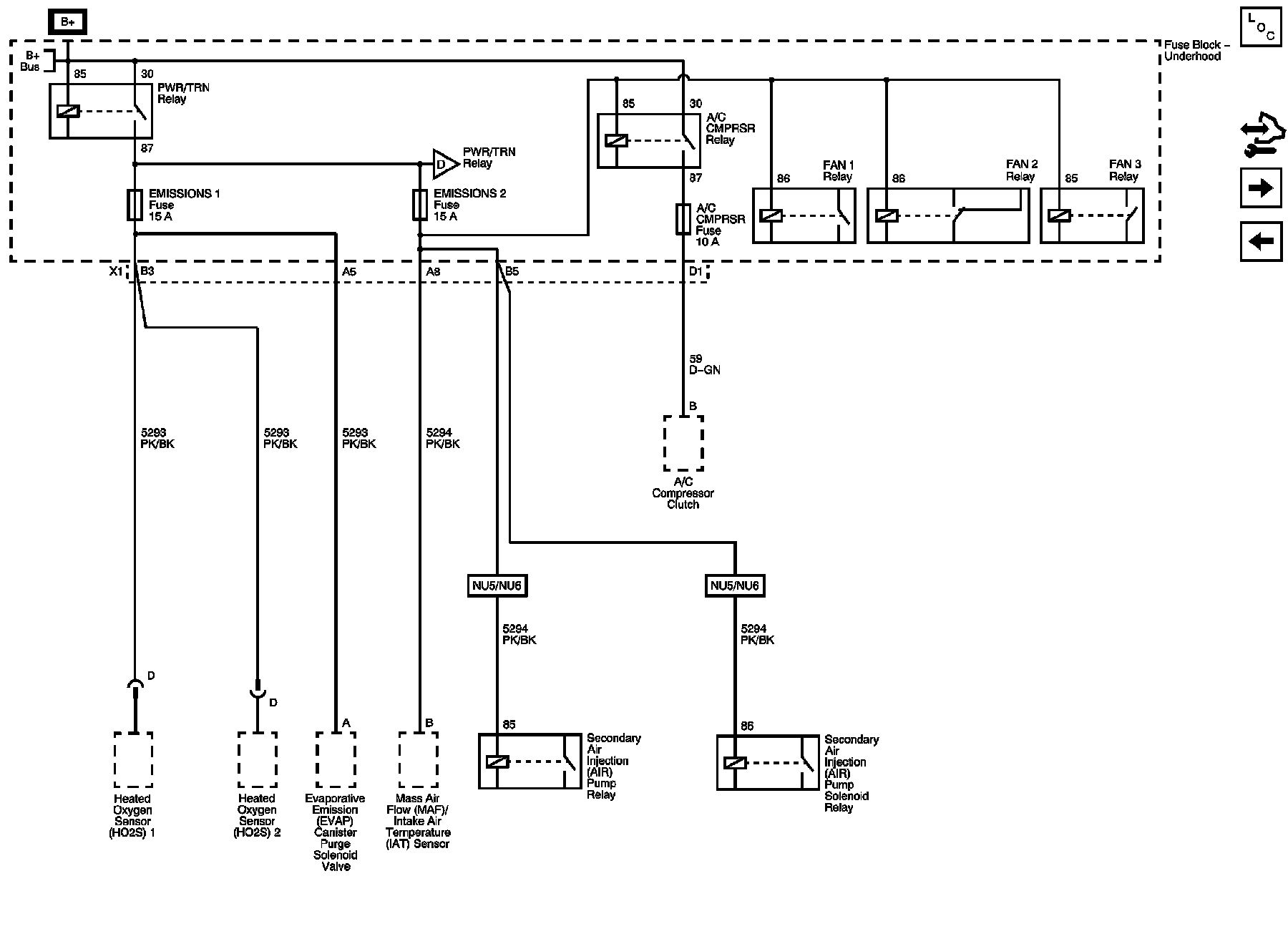

EMISSIONS 1, EMISSIONS 2, A/C CMPRSR Fuses, A/C CMPRSR, FAN 1, FAN 2, and FAN 3 Relays
