Air Injection Pump Relay: Locations

Front of Vehicle/Engine Compartment Component Views

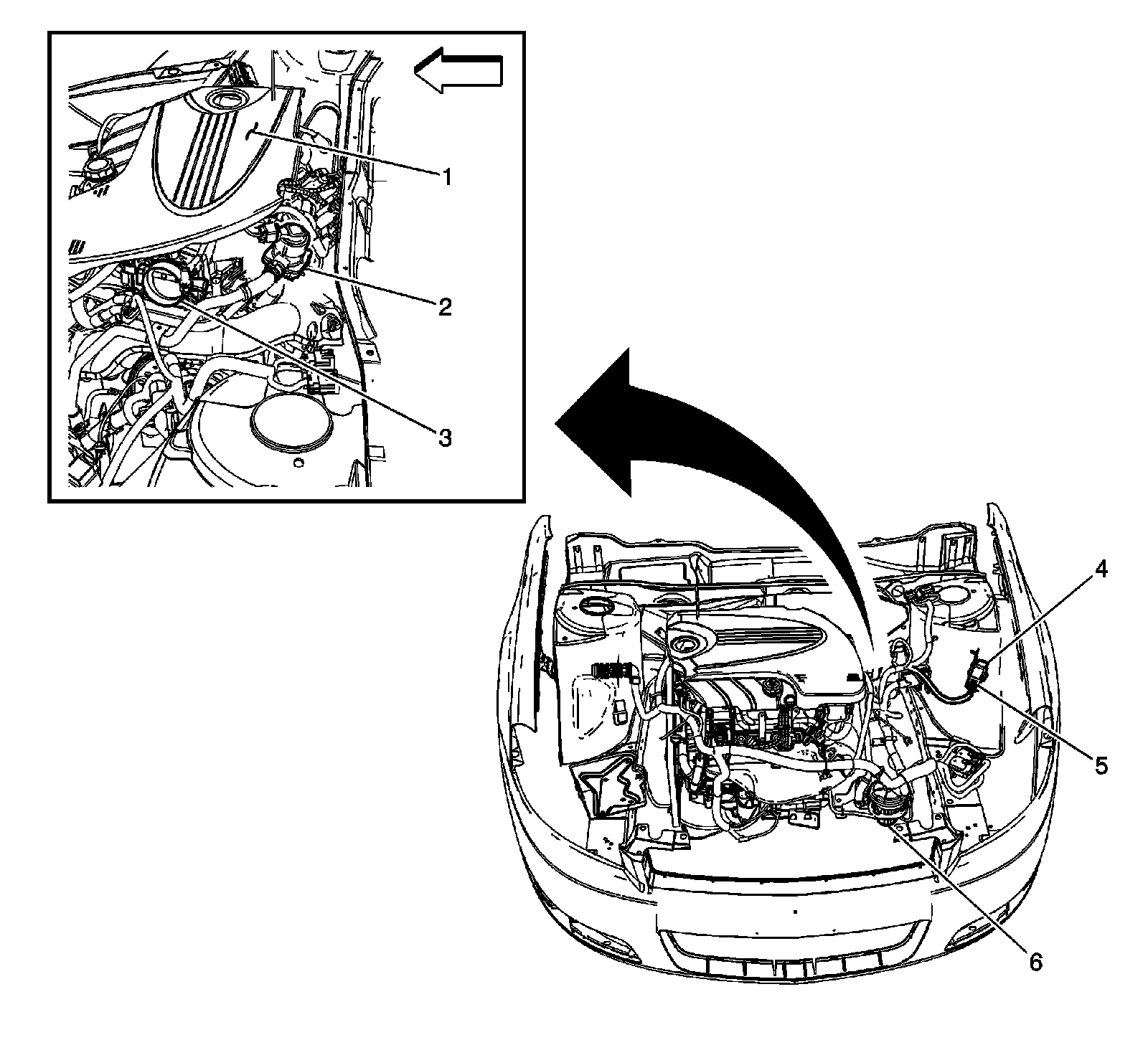

Left Front of the Engine Compartment Components (NU5 or NU6)




1 - Engine Cover
2 - Secondary Air Injection (AIR) Pump Solenoid
3 - Throttle Body
4 - Secondary Air Injection (AIR) Solenoid Relay
5 - Secondary Air Injection (AIR) Pump Relay
6 - Secondary Air Injection (AIR) Pump
