Engine Control Module




Component Connector End Views

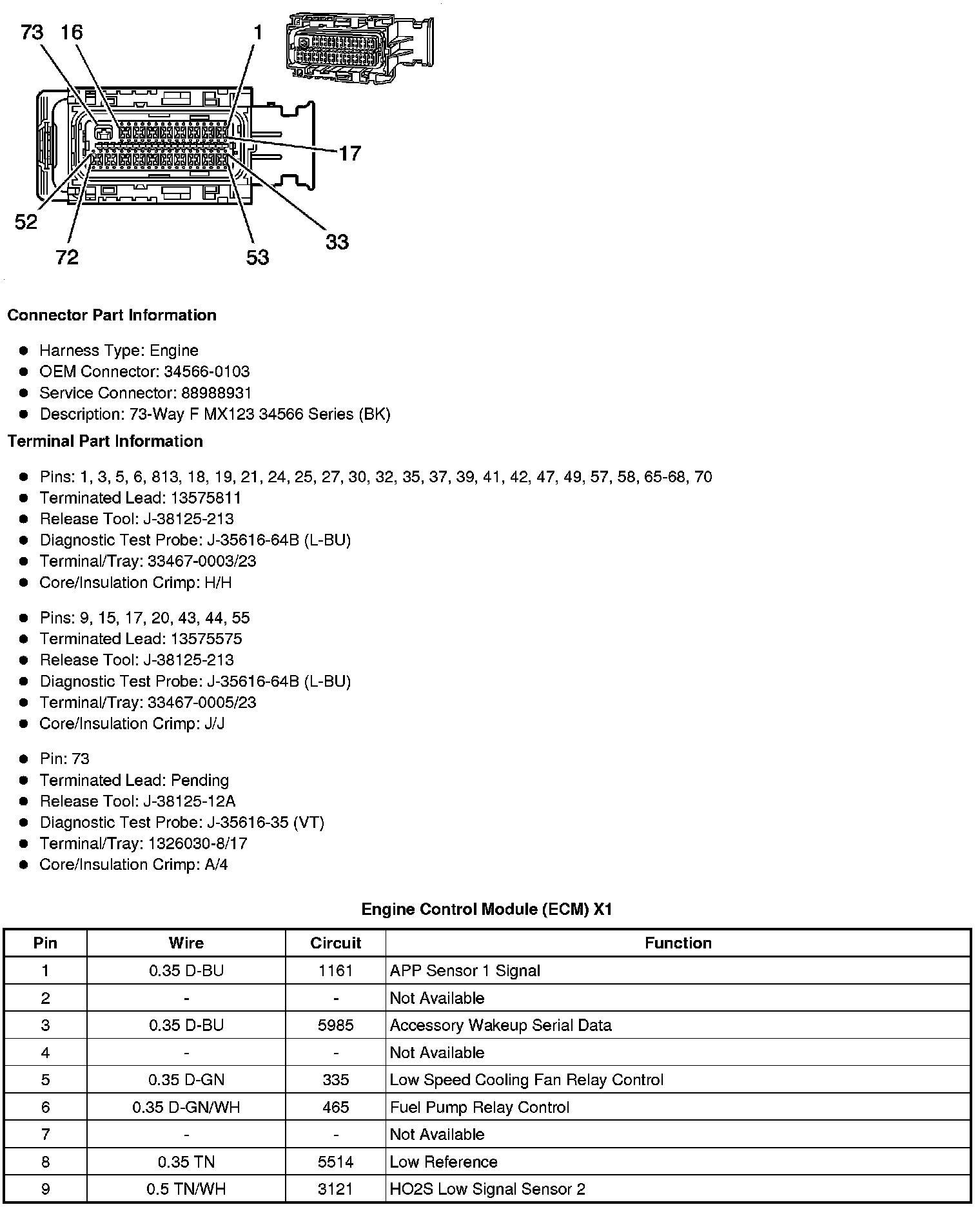

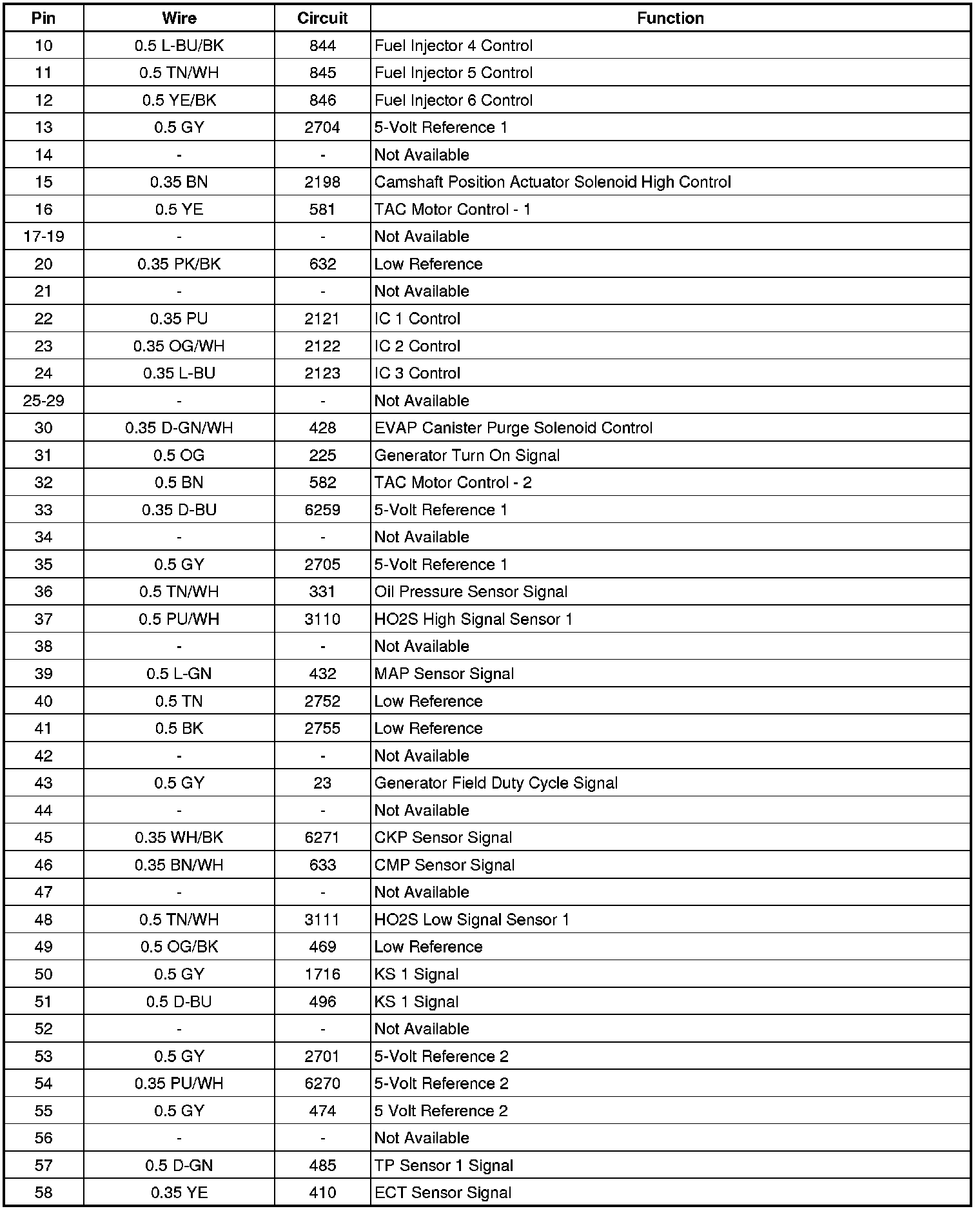

Engine Control Module (ECM) X1

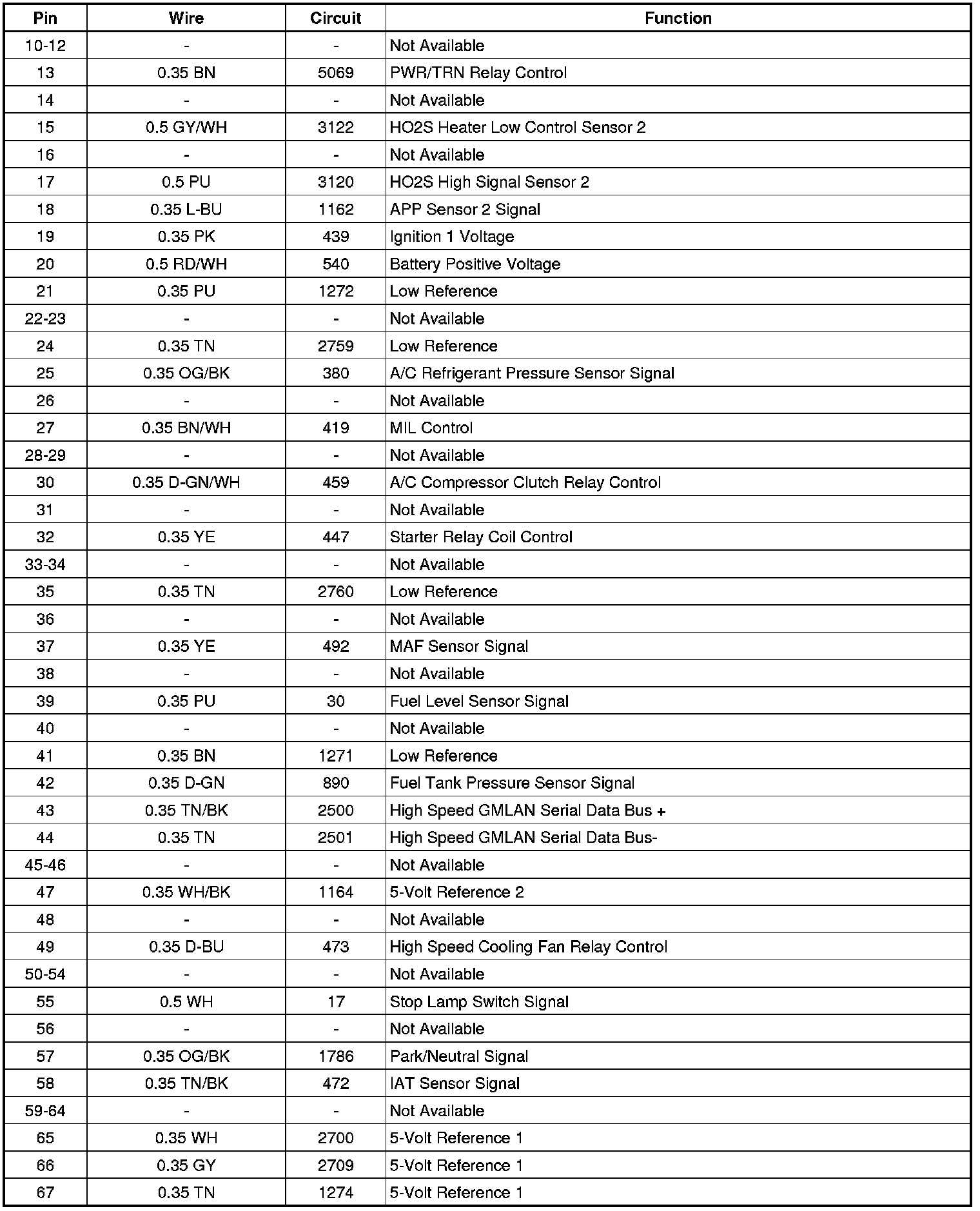

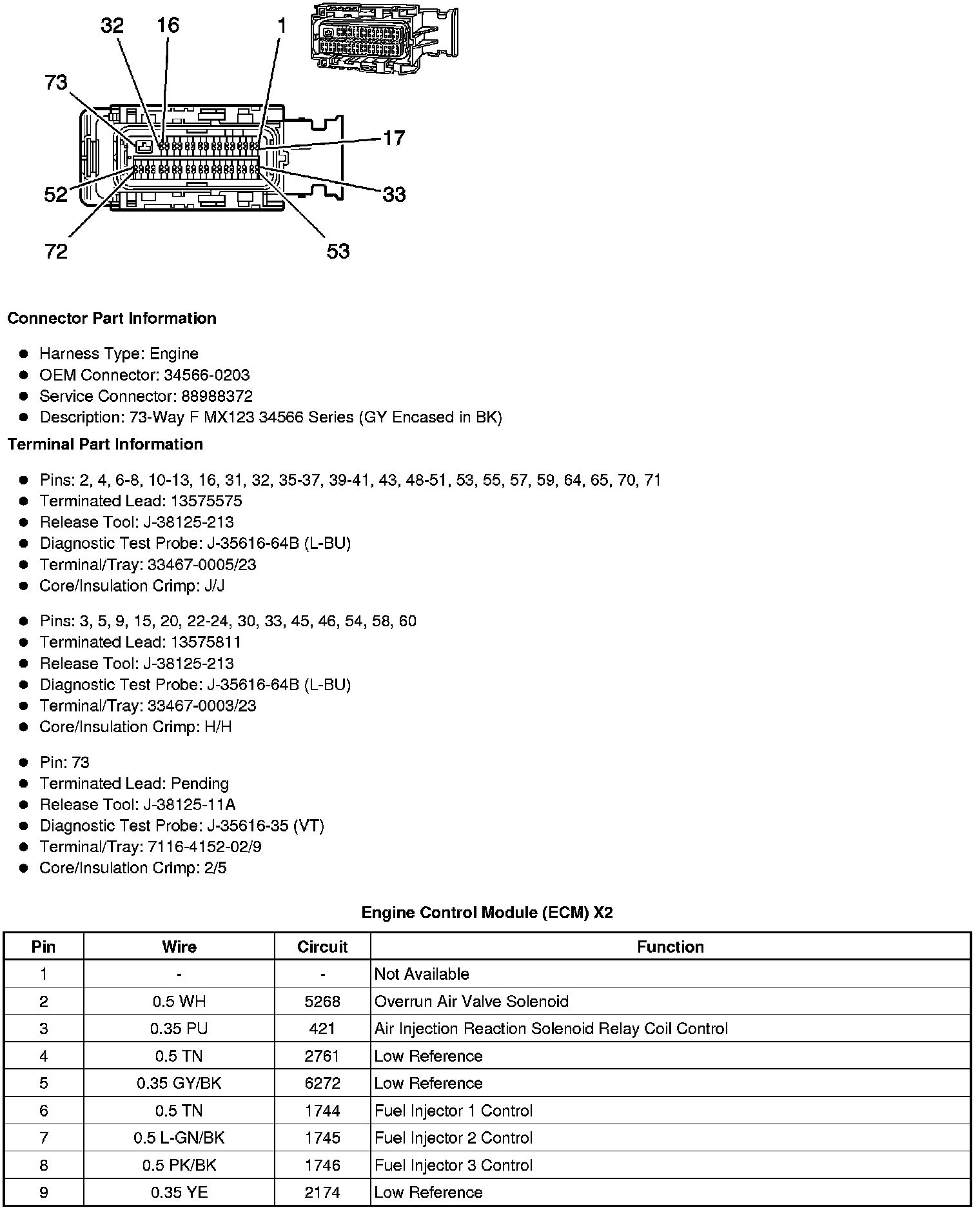

Engine Control Module (ECM) X2
