Fuse Holder




Electrical Center Identification Views

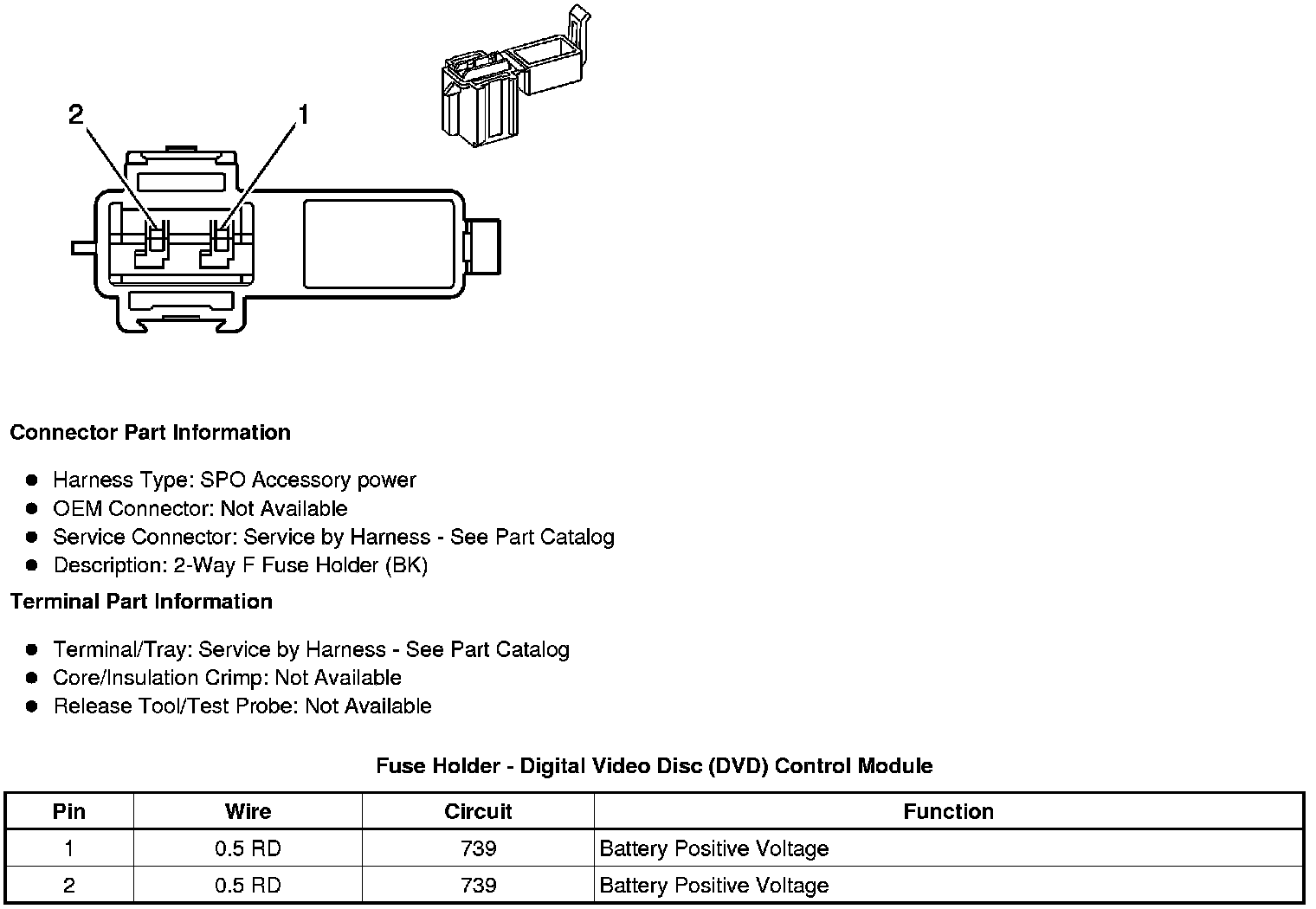

Fuse Holder - Digital Video Disc (DVD) Control Module
