Power Window Motor




Component Connector End Views

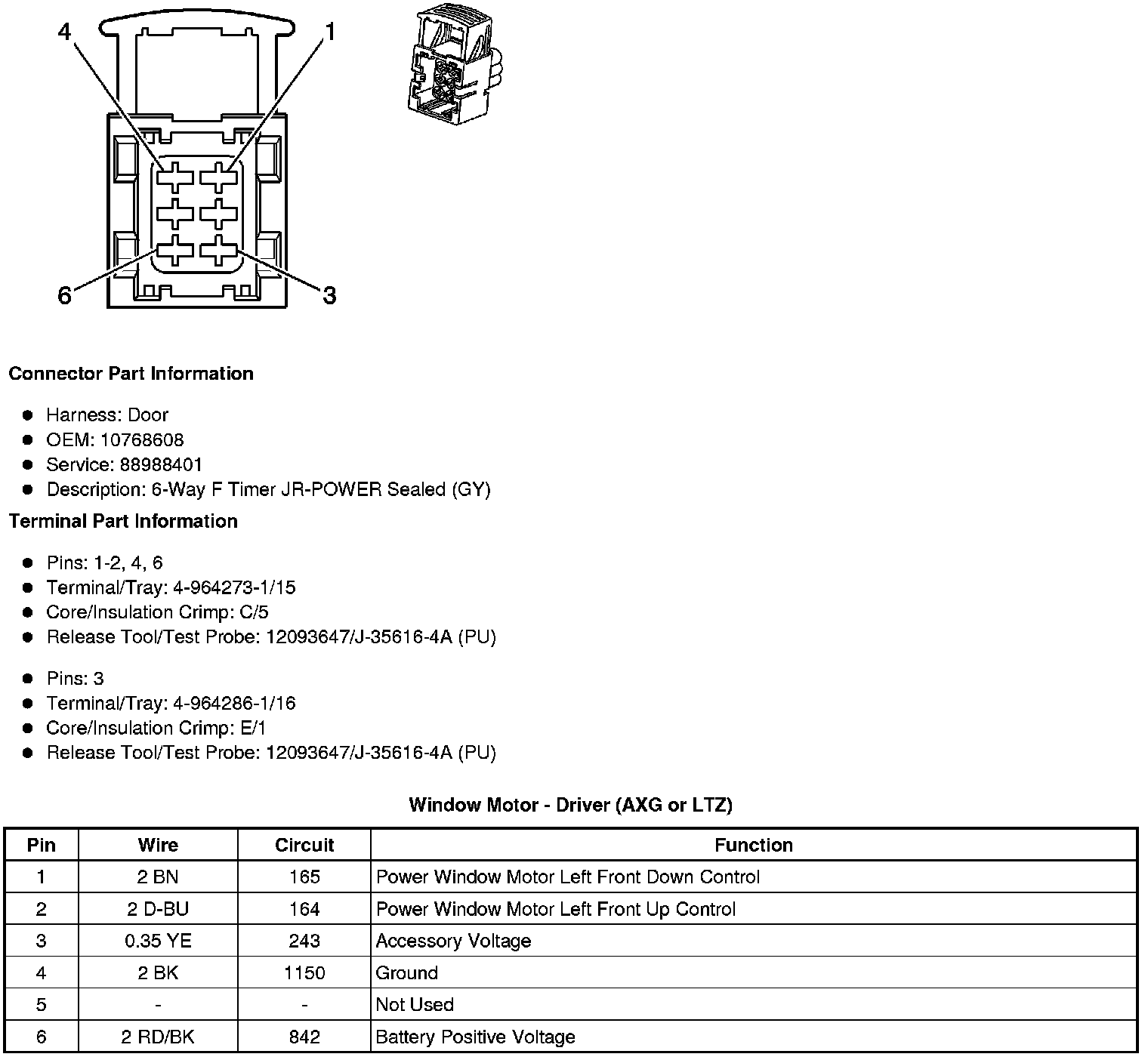

Window Motor - Driver (AXG or LTZ)

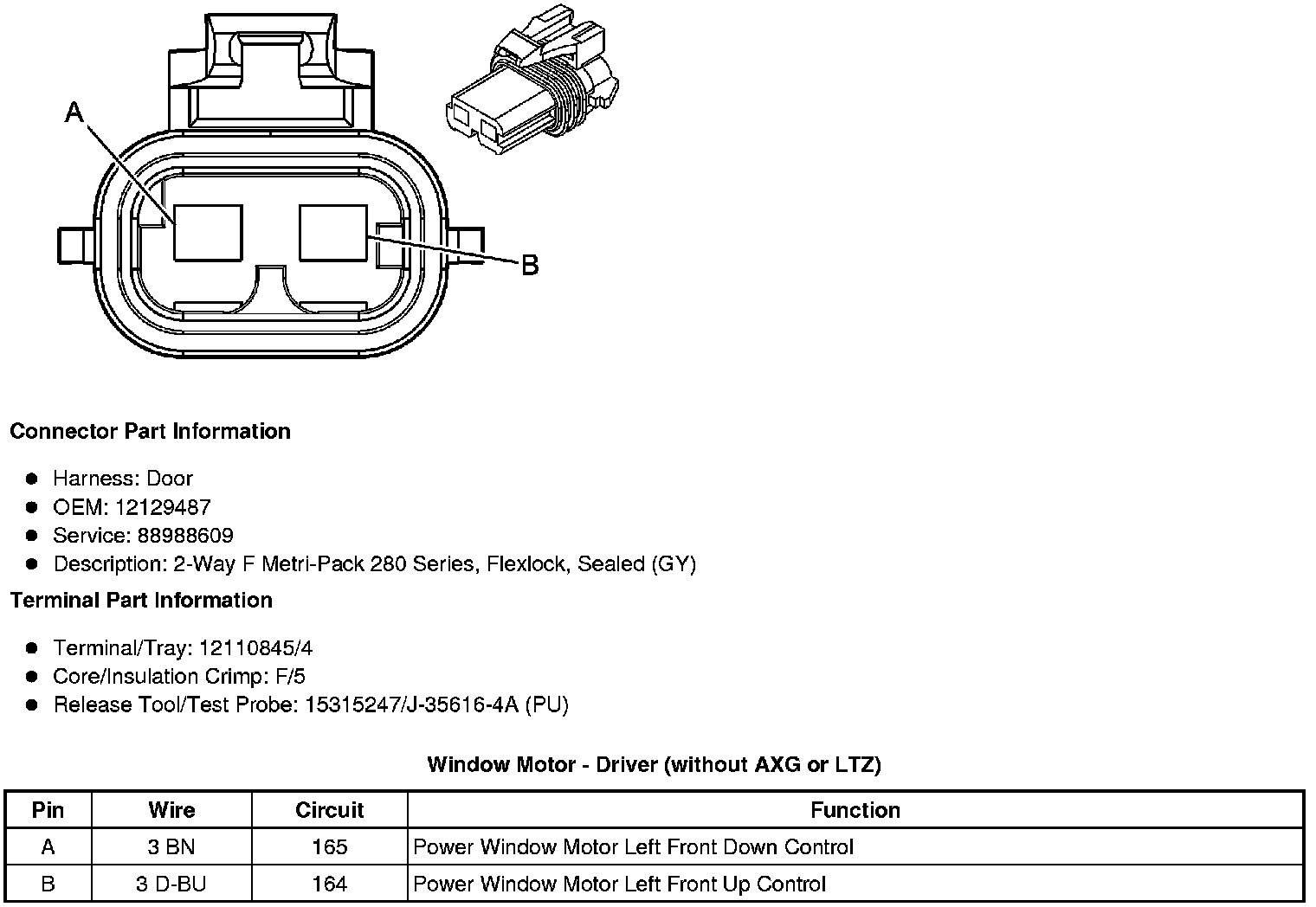

Window Motor - Driver (without AXG or LTZ)





Window Motor - Left Rear





Window Motor - Passenger

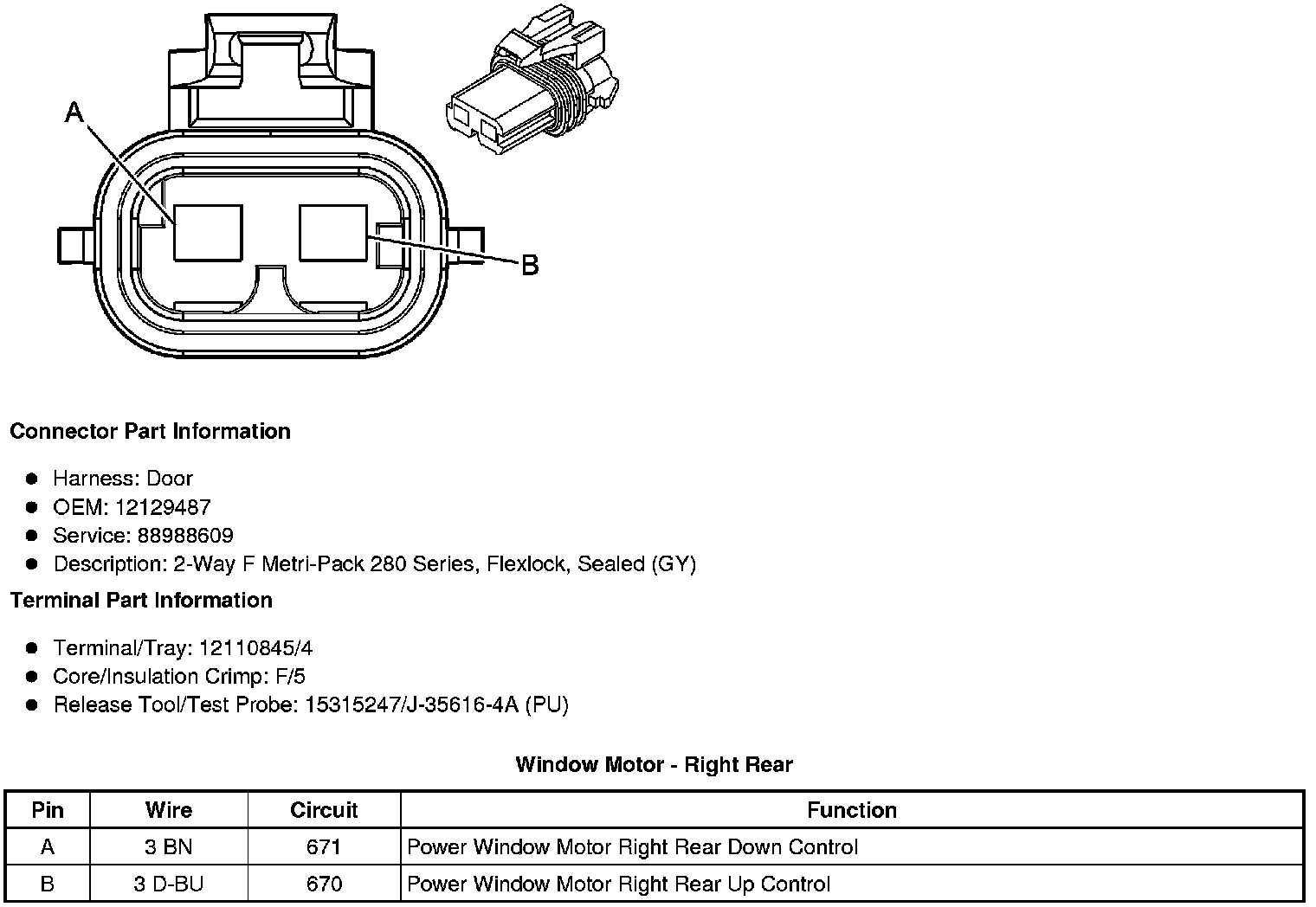

Window Motor - Right Rear
