Oxygen Sensor: Diagrams




Component Connector End Views

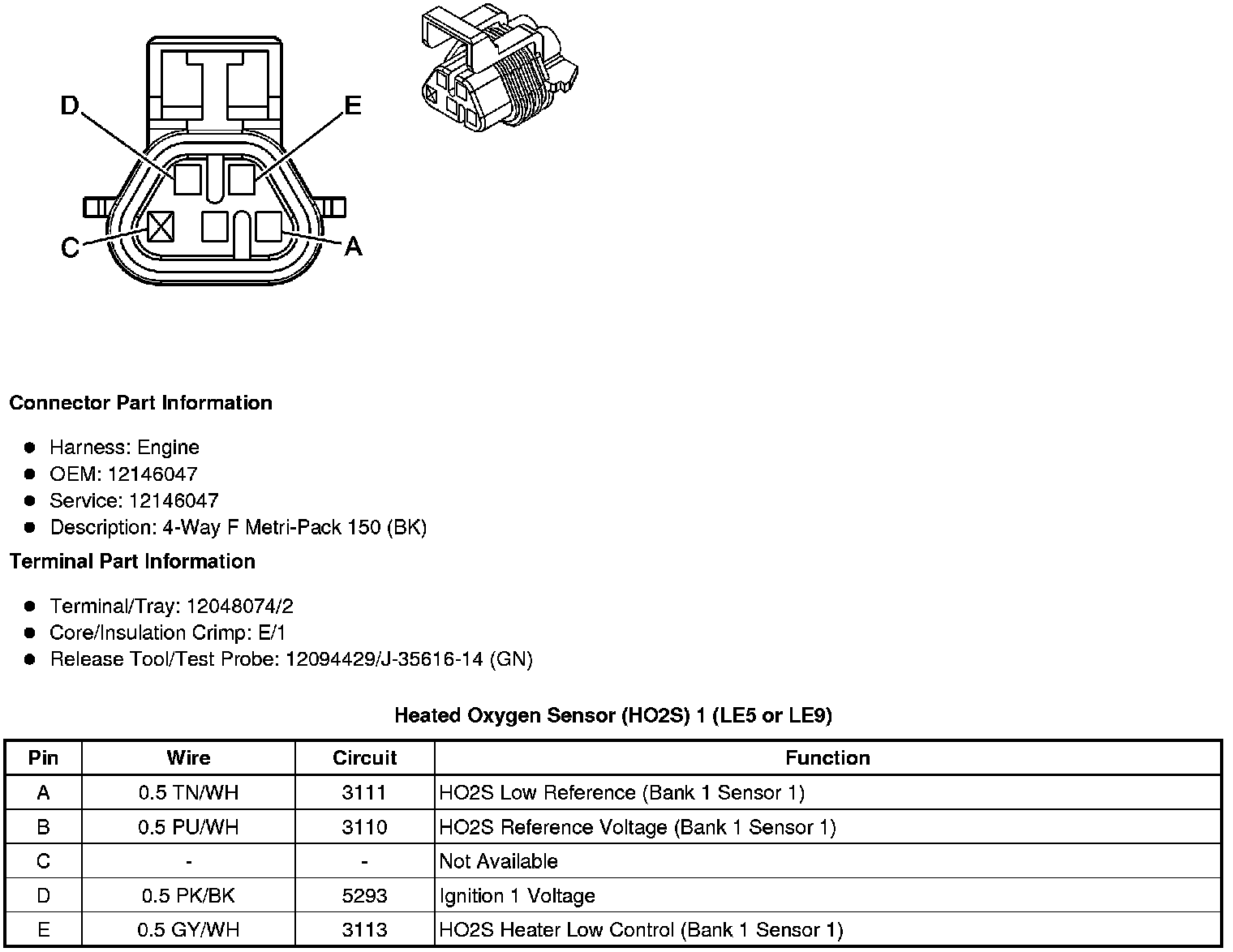

Heated Oxygen Sensor (HO2S) 1 (LE5 or LE9)

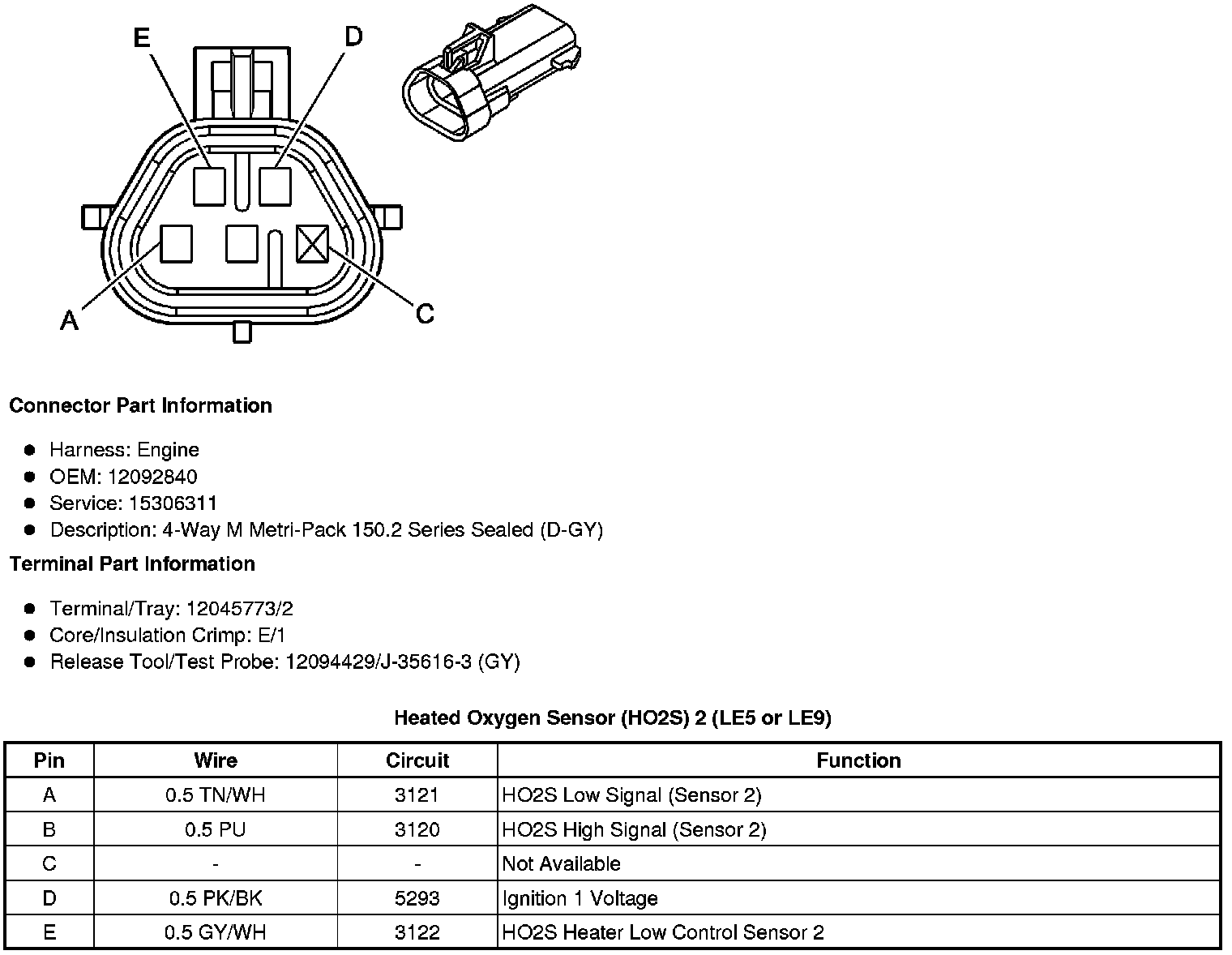

Heated Oxygen Sensor (HO2S) 2 (LE5 or LE9)
