Accessory Control Display




Component Connector End Views

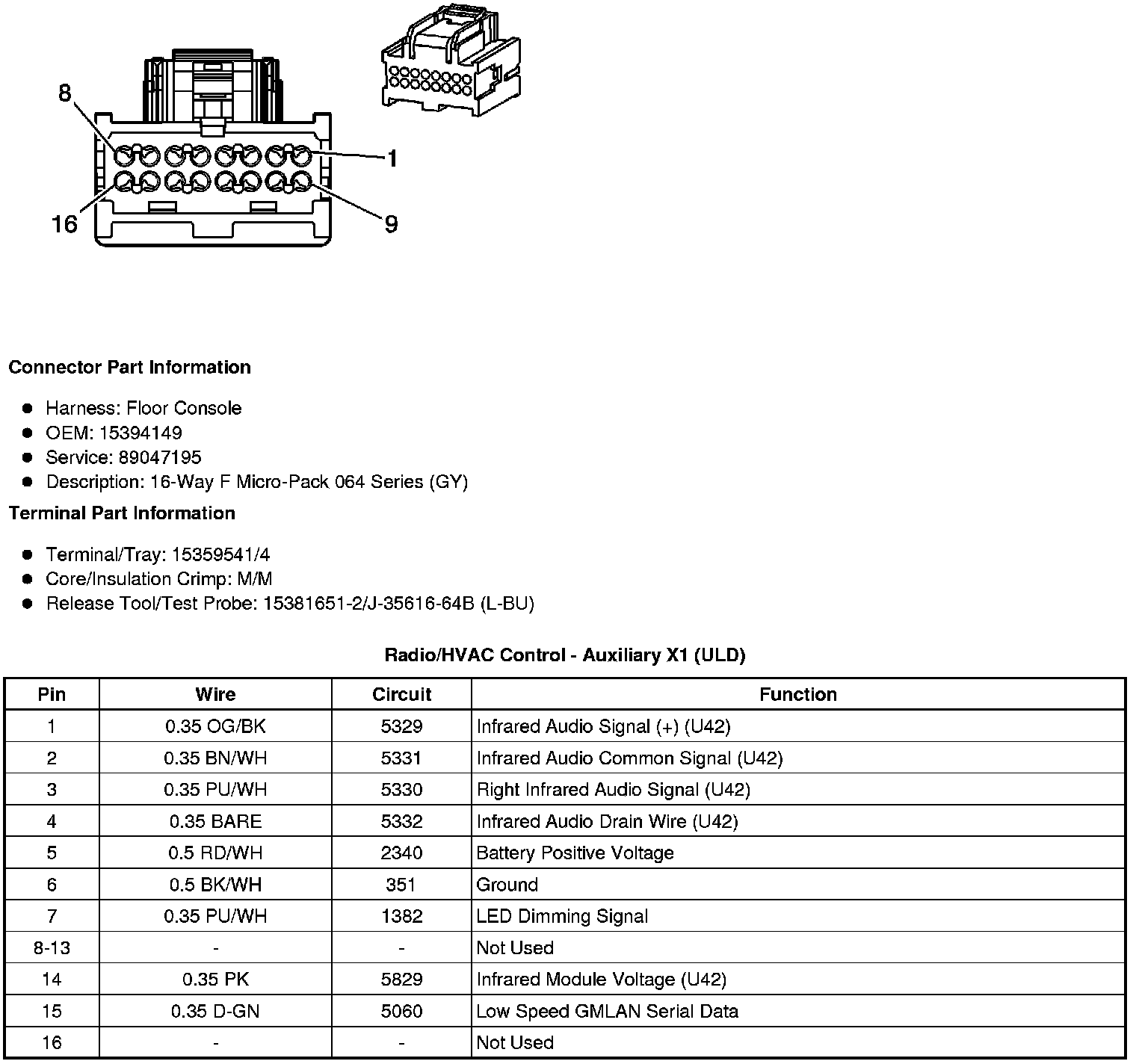

Radio/HVAC Control - Auxiliary X1 (ULD)

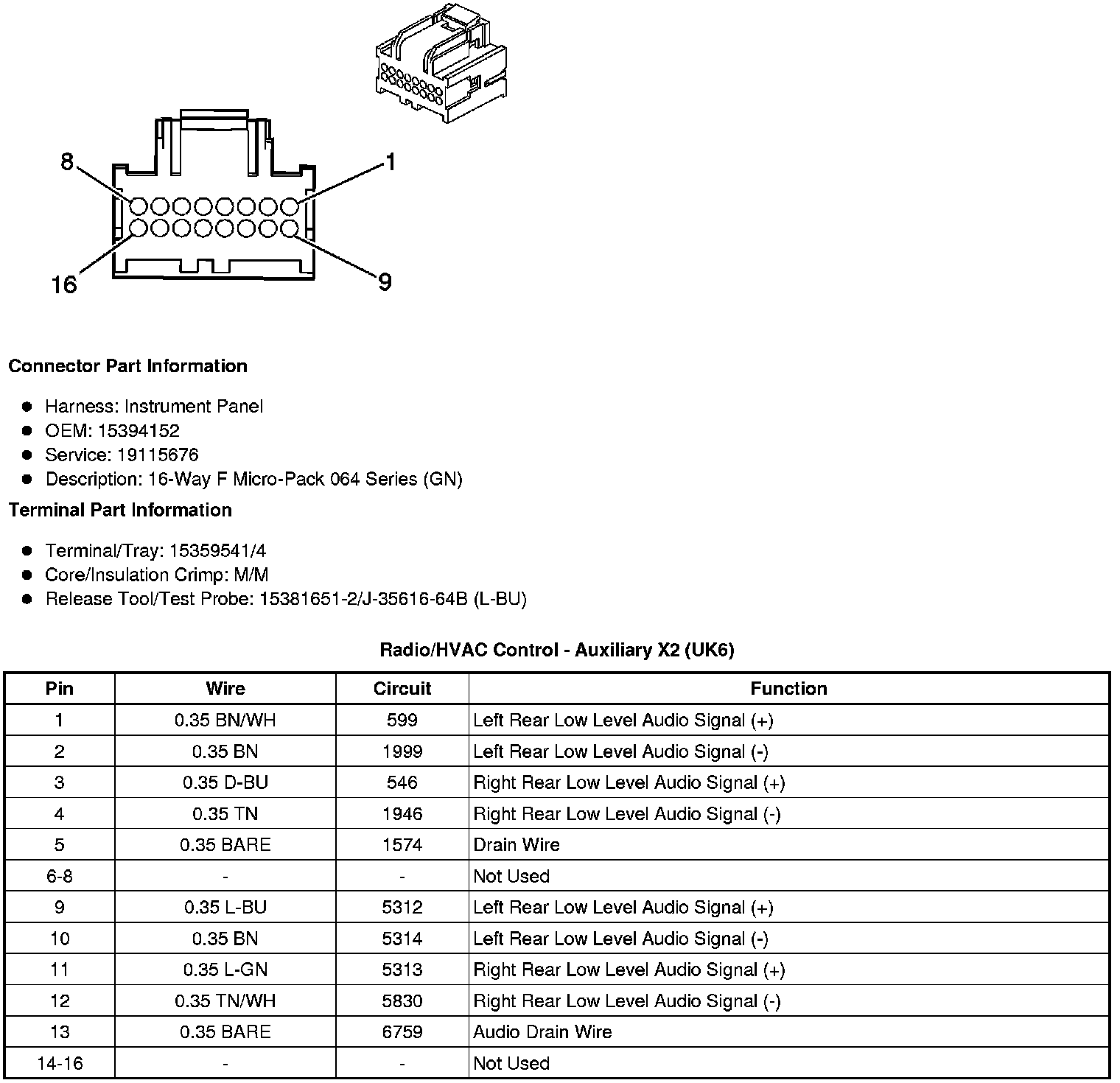

Radio/HVAC Control - Auxiliary X2 (UK6)
