Driver / Vehicle Information Display Switch




Component Connector End Views

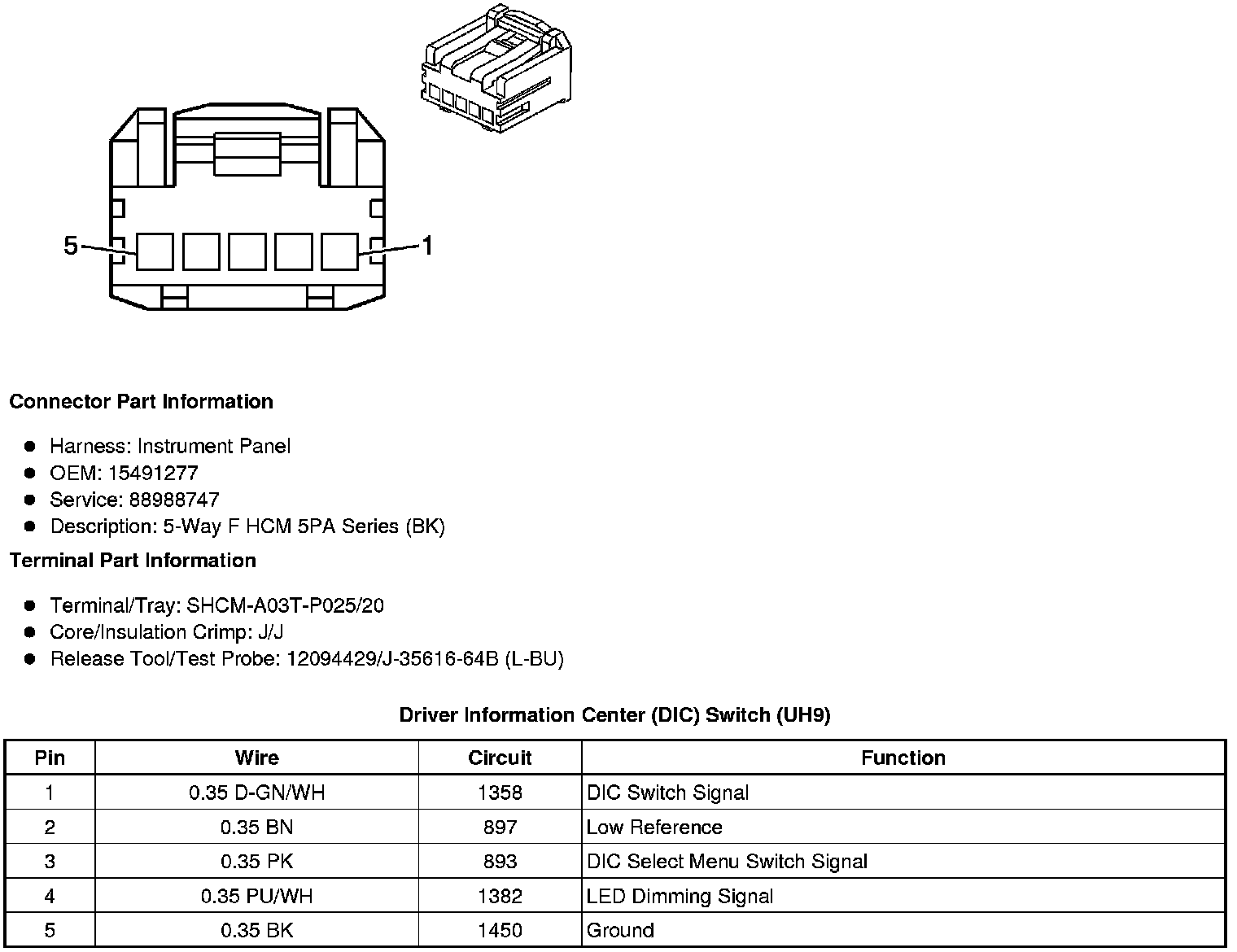

Driver Information Center (DIC) Switch (UH9)

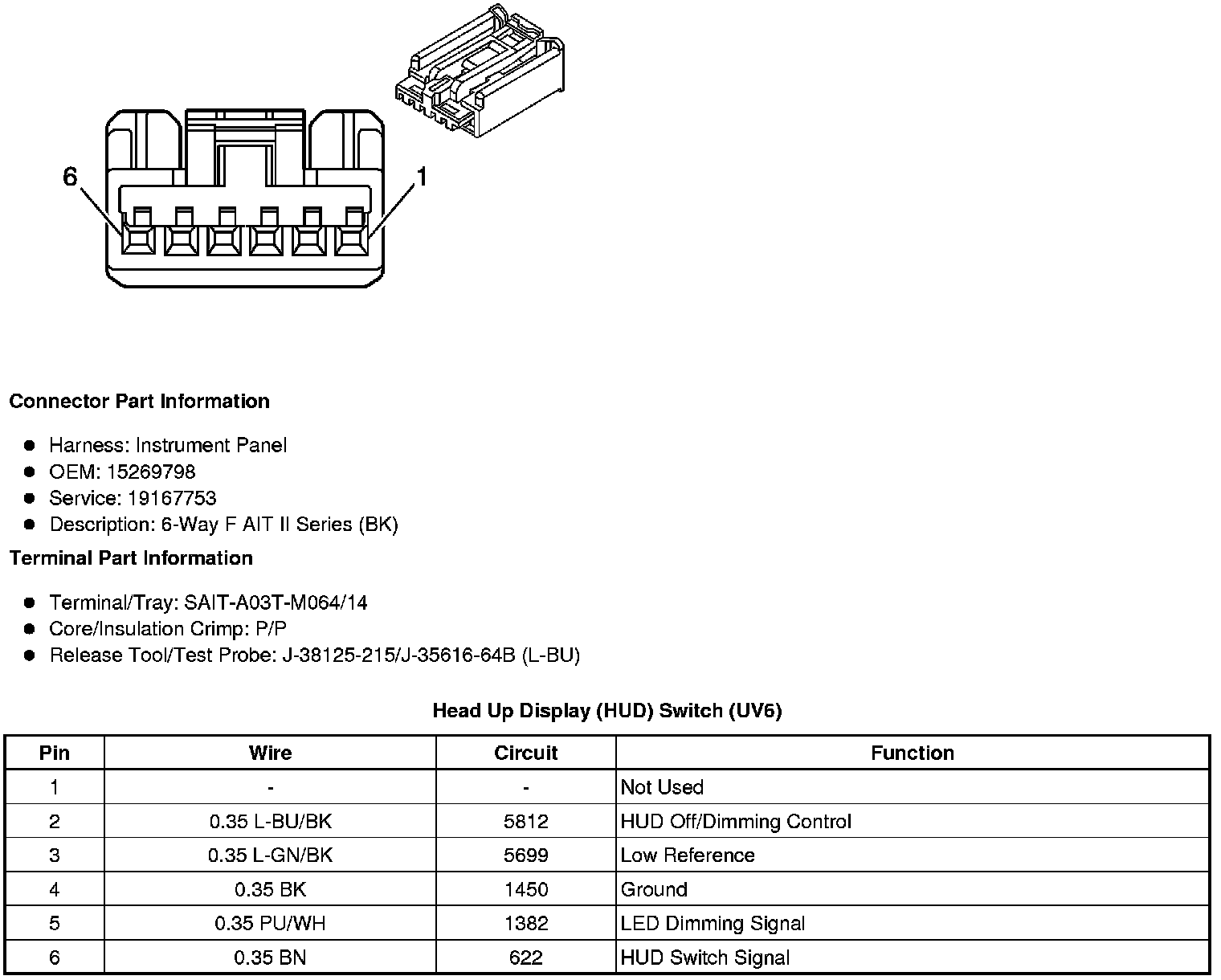

Head Up Display (HUD) Switch (UV6)
