Instrument Cluster / Carrier
Component Connector End Views

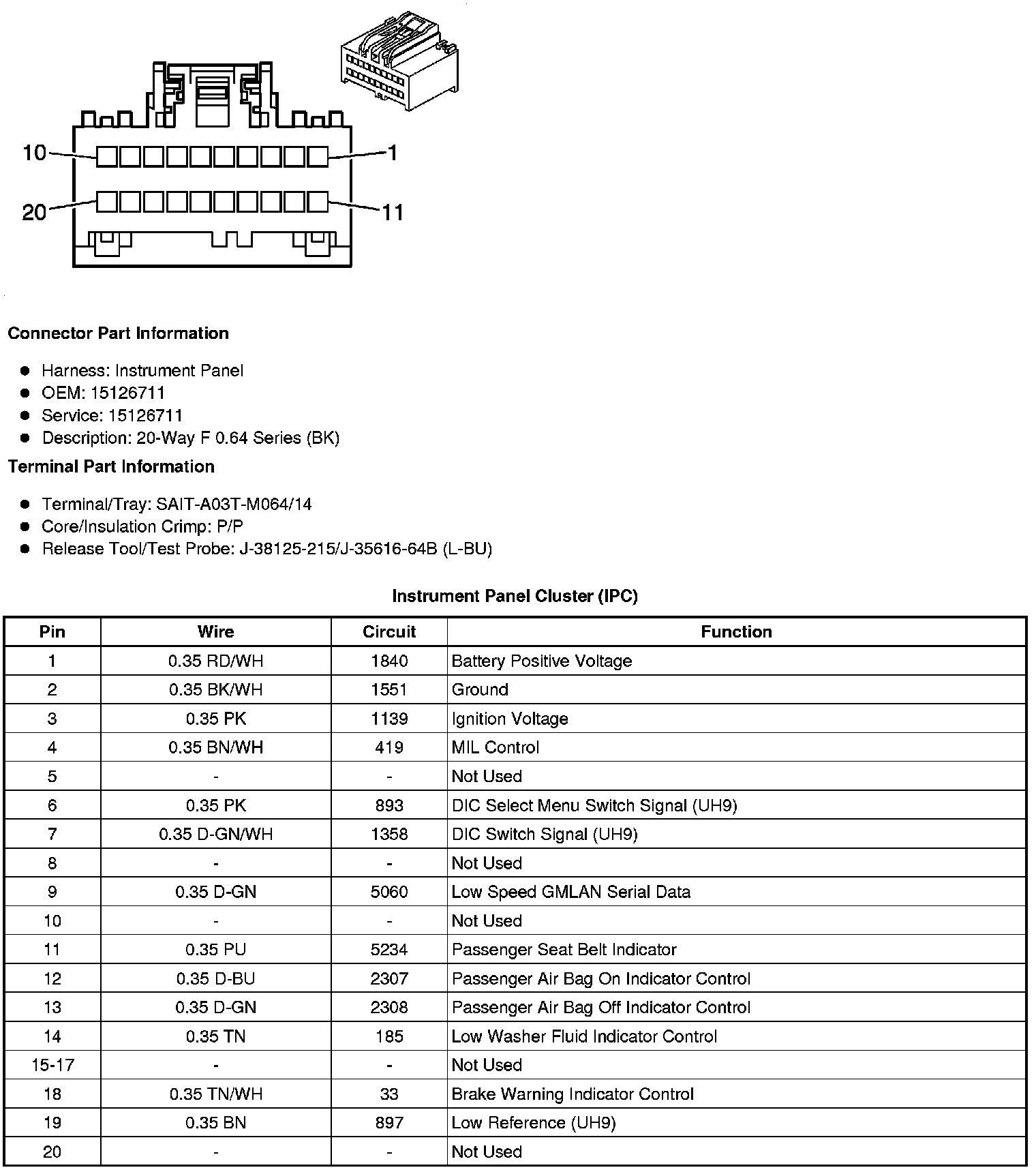

Instrument Panel Cluster (IPC)
Multifunction Switch - I/P
