Power Seat Switch




Component Connector End Views

Memory Seat Adjuster Switch - Driver (A45)

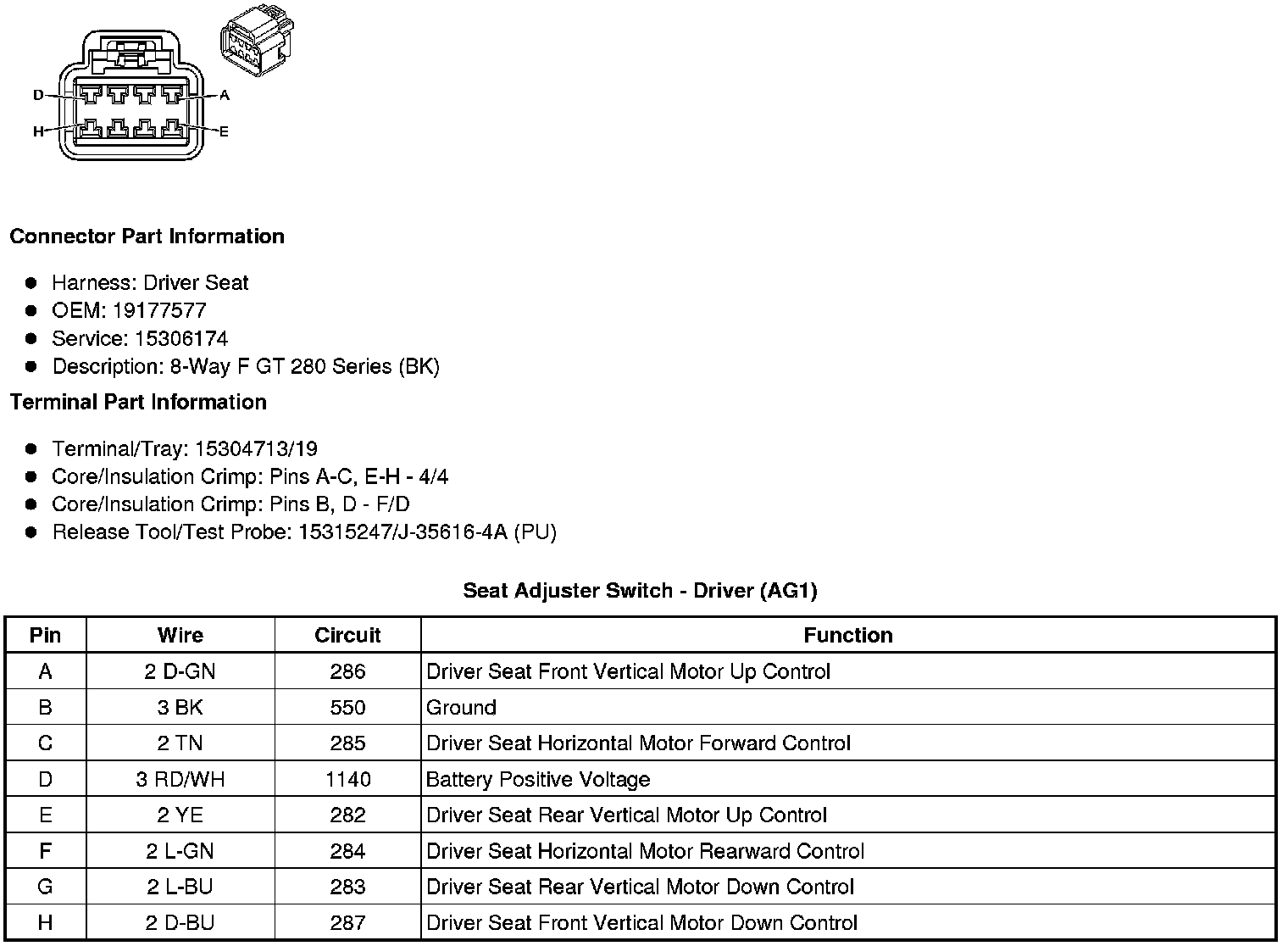

Seat Adjuster Switch - Driver (AG1)

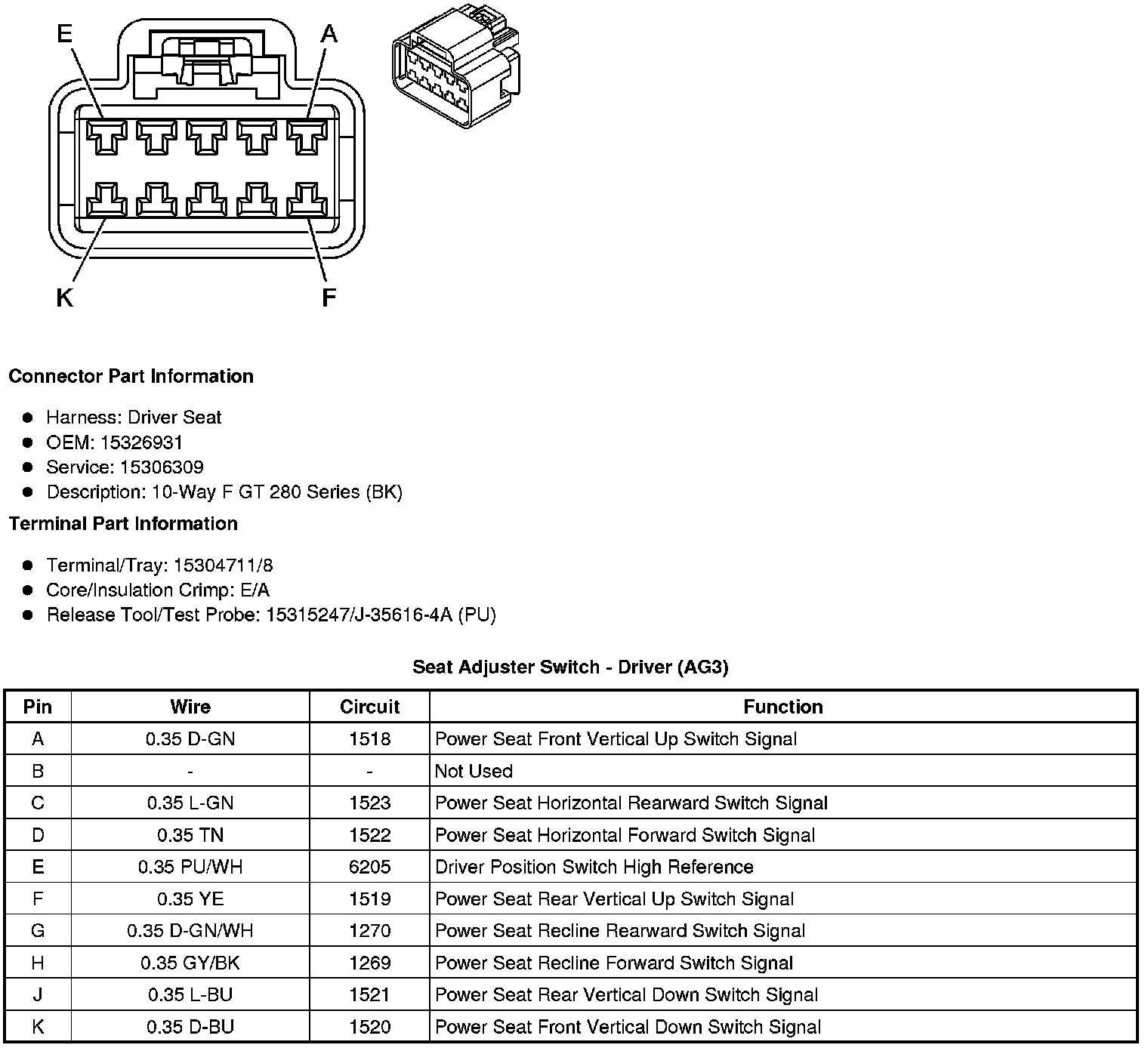

Seat Adjuster Switch - Driver (AG3)

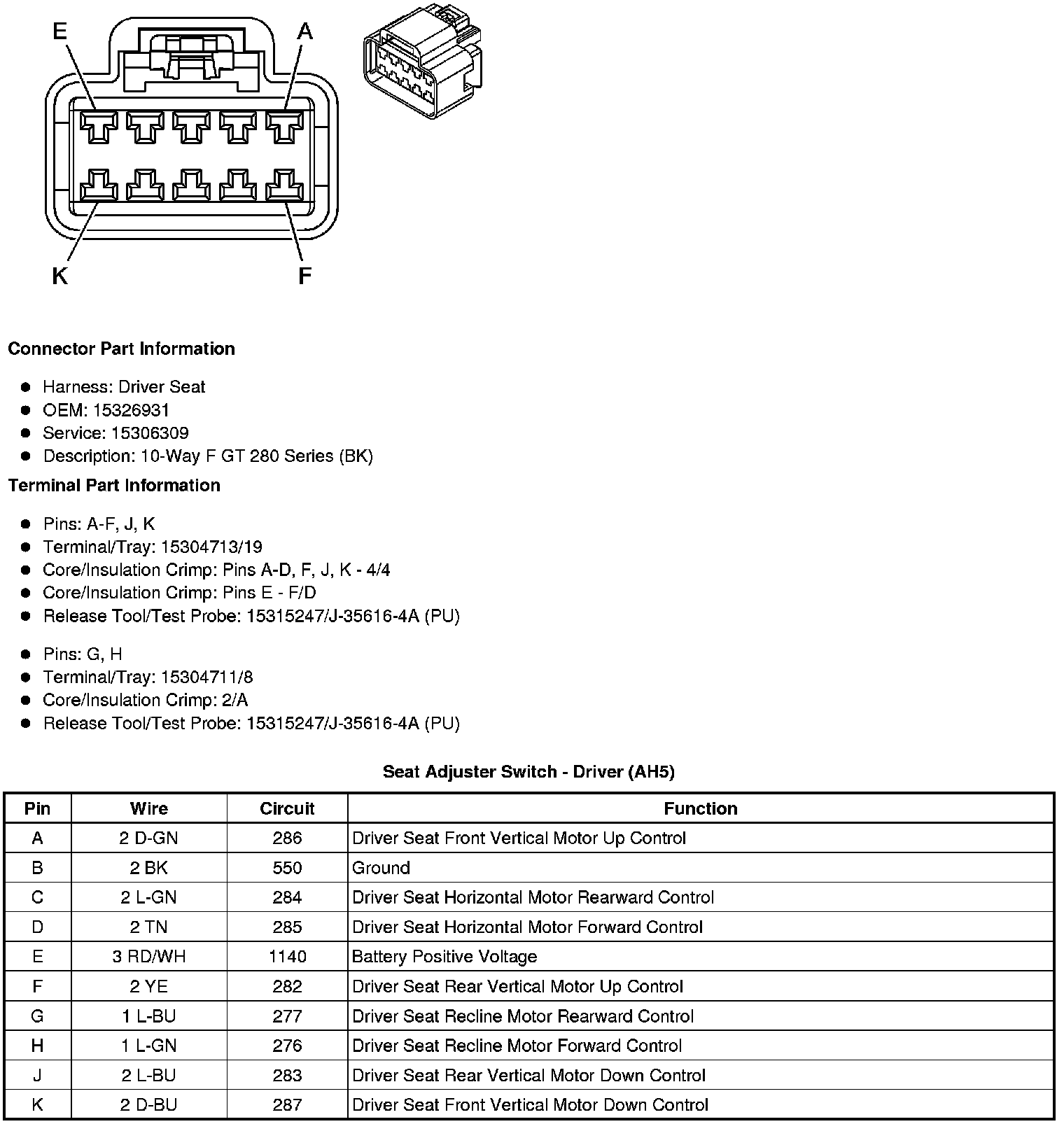

Seat Adjuster Switch - Driver (AH5)

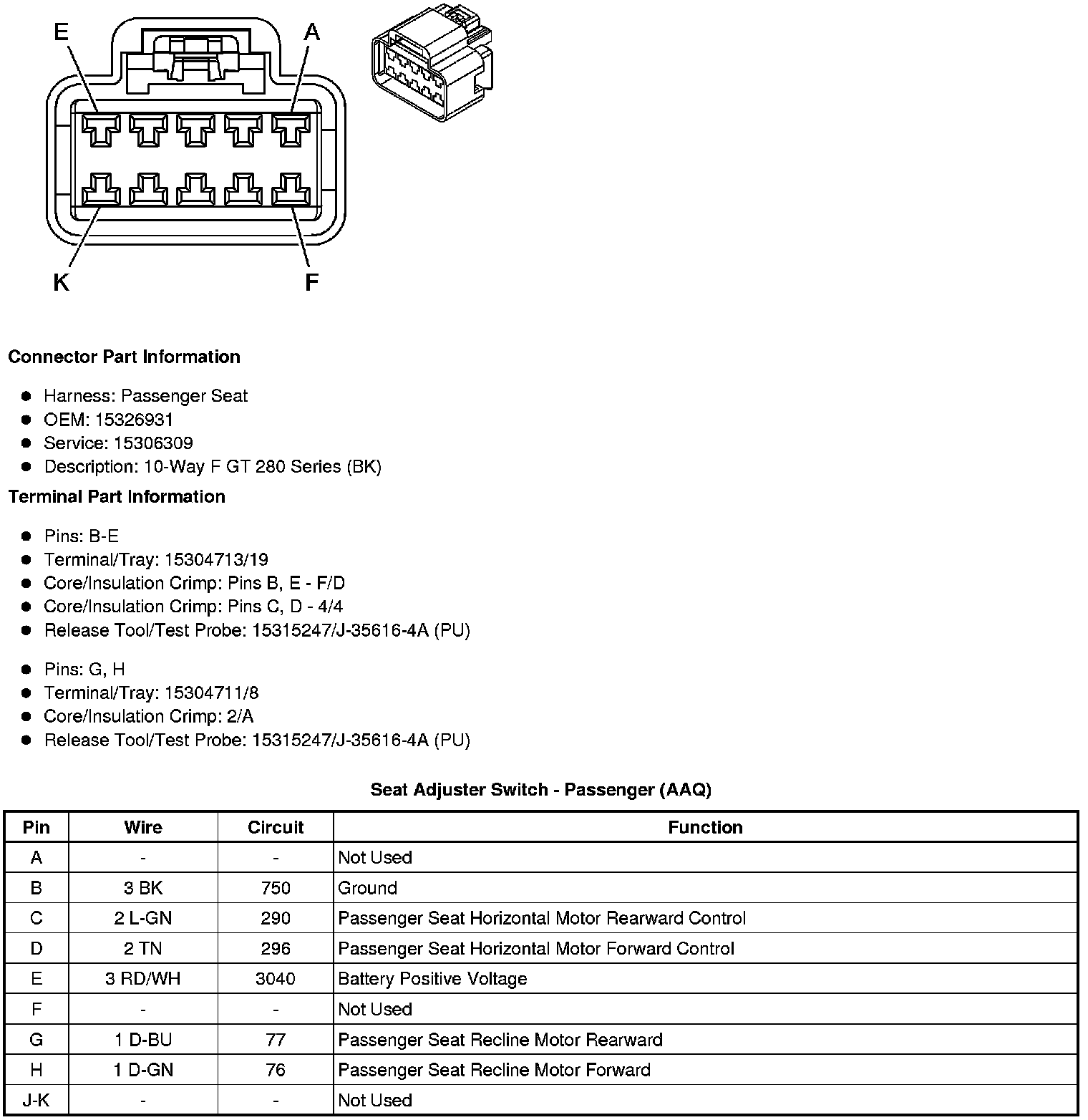

Seat Adjuster Switch - Passenger (AAQ)

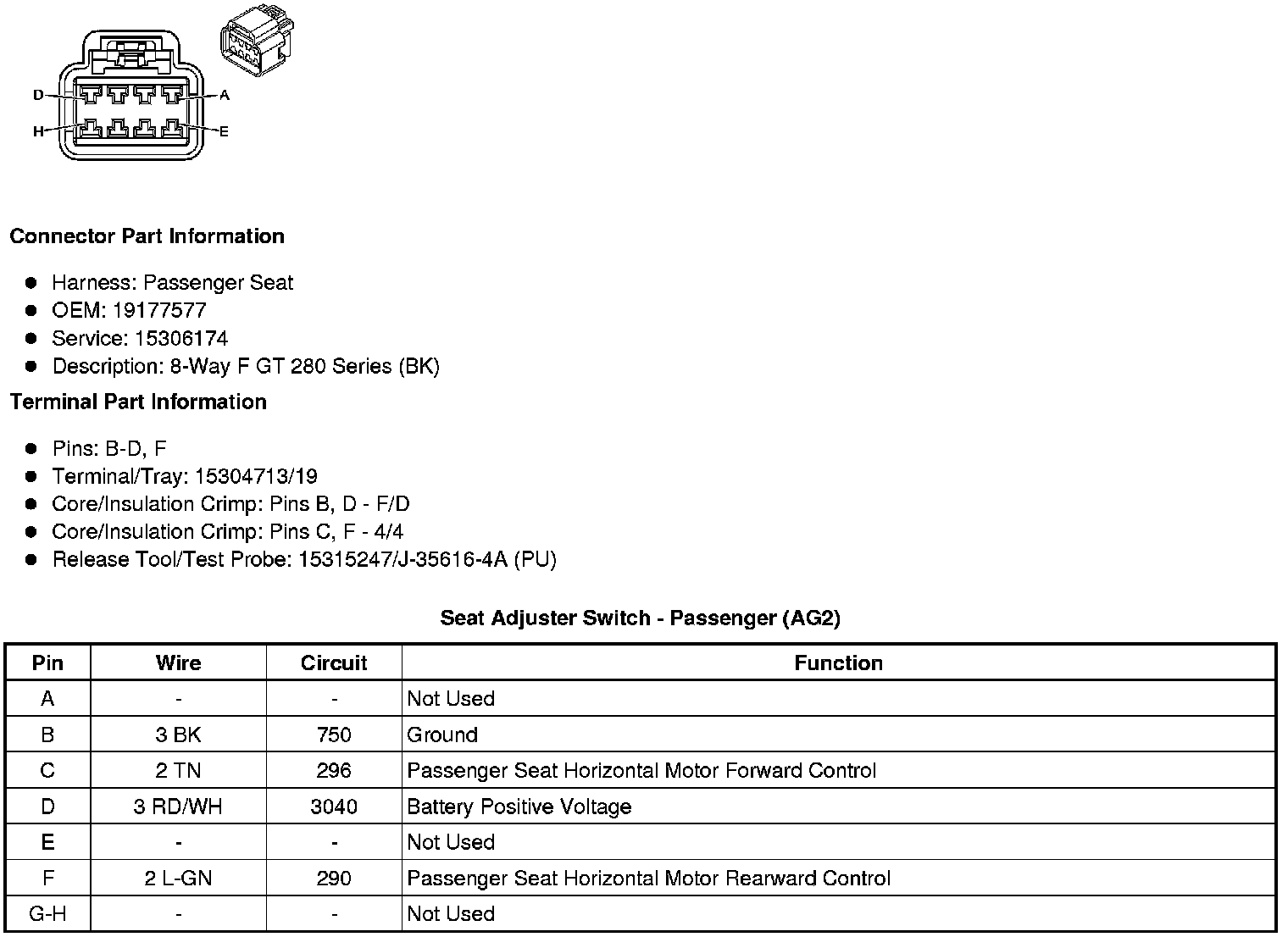

Seat Adjuster Switch - Passenger (AG2)





Seat Lumbar Switch - Driver (AG3 or AH5)





Seat Lumbar Switch - Passenger (AAQ)
