Home >> Chevrolet >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> System Diagram >> Liftgate Schematics
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Liftgate Schematics




Liftgate Schematics

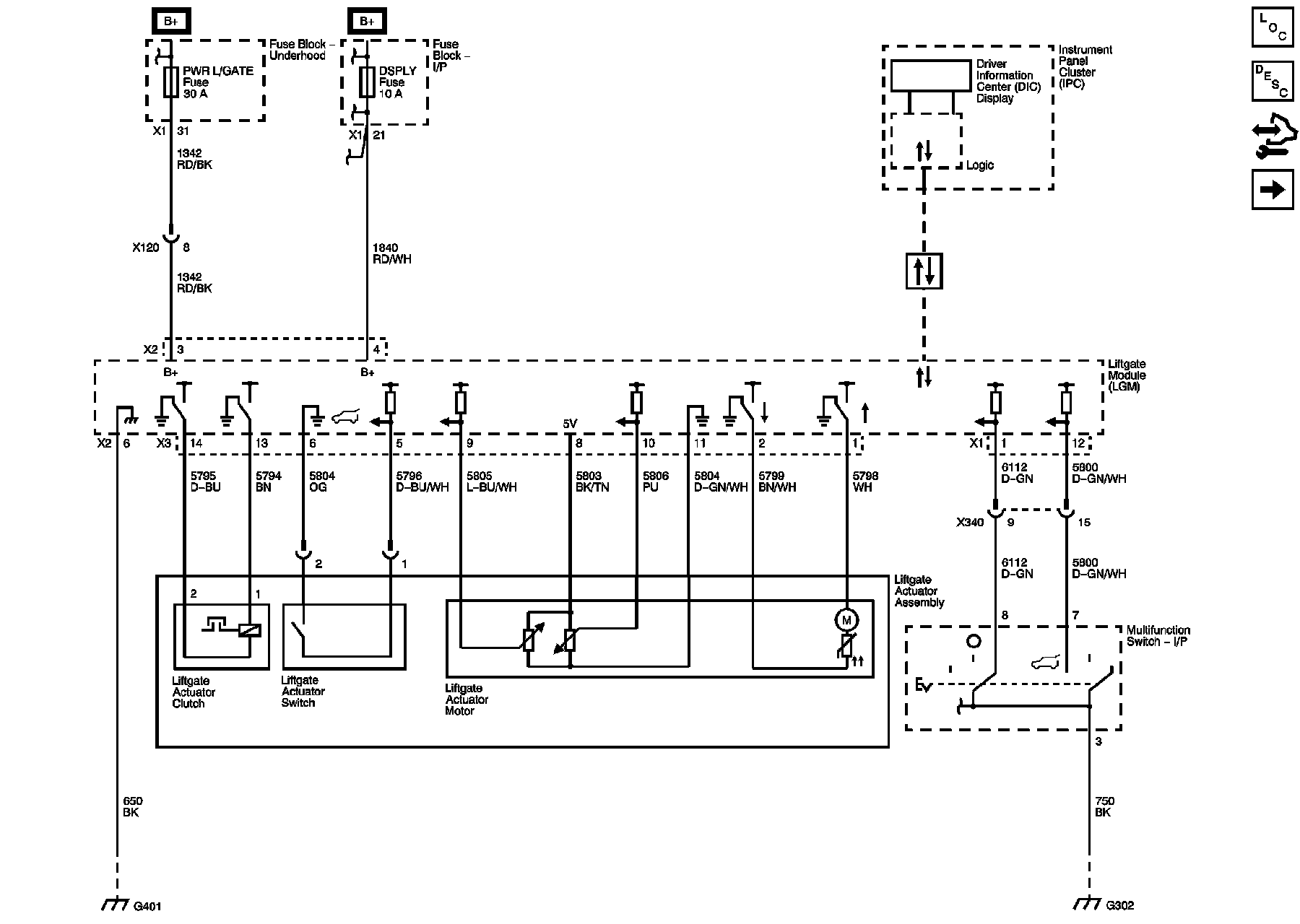

Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator

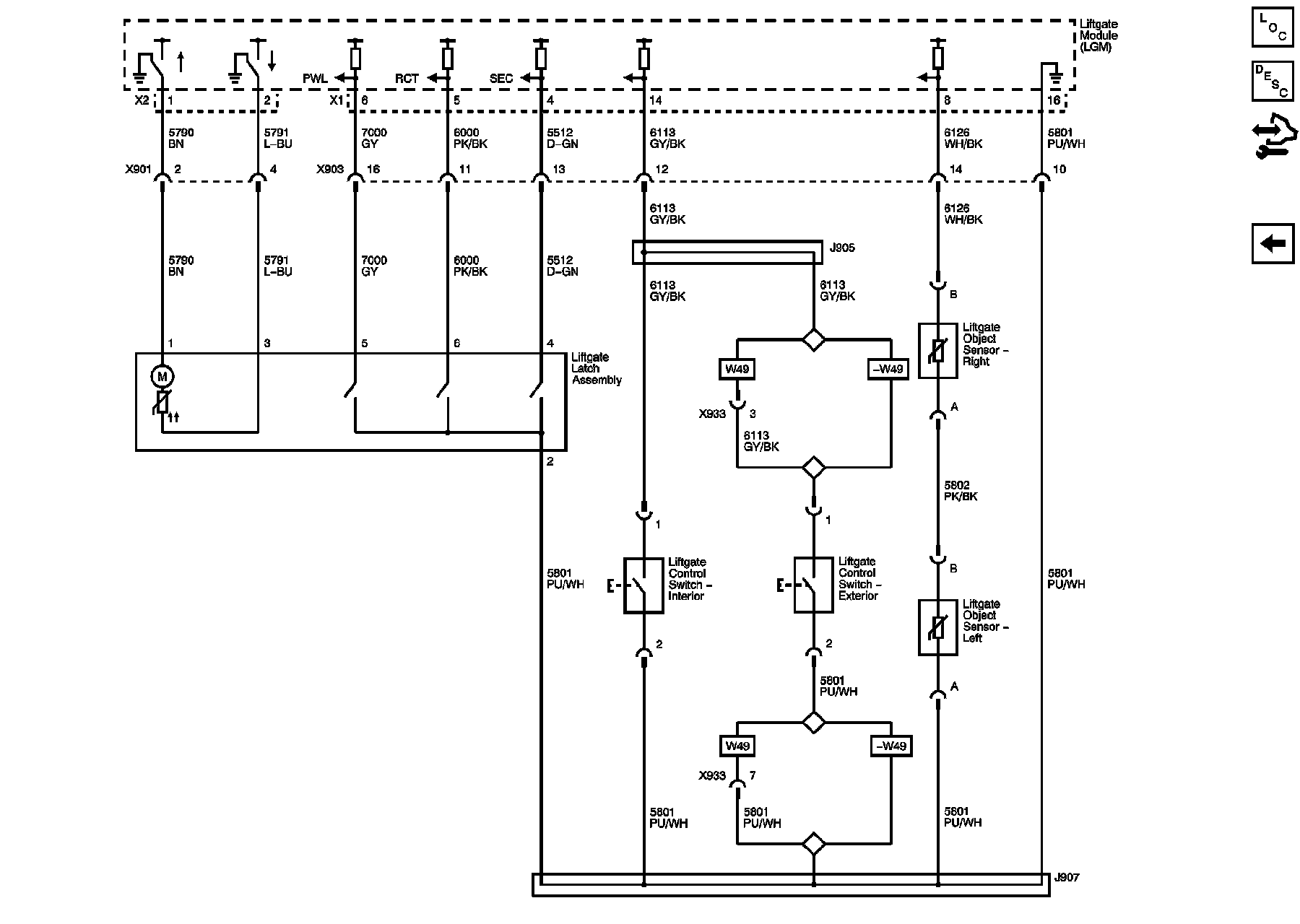

Latch, Object Sensors, and Switches (TB5)
