Front Floor Console Harness Routing




Harness Routing Views

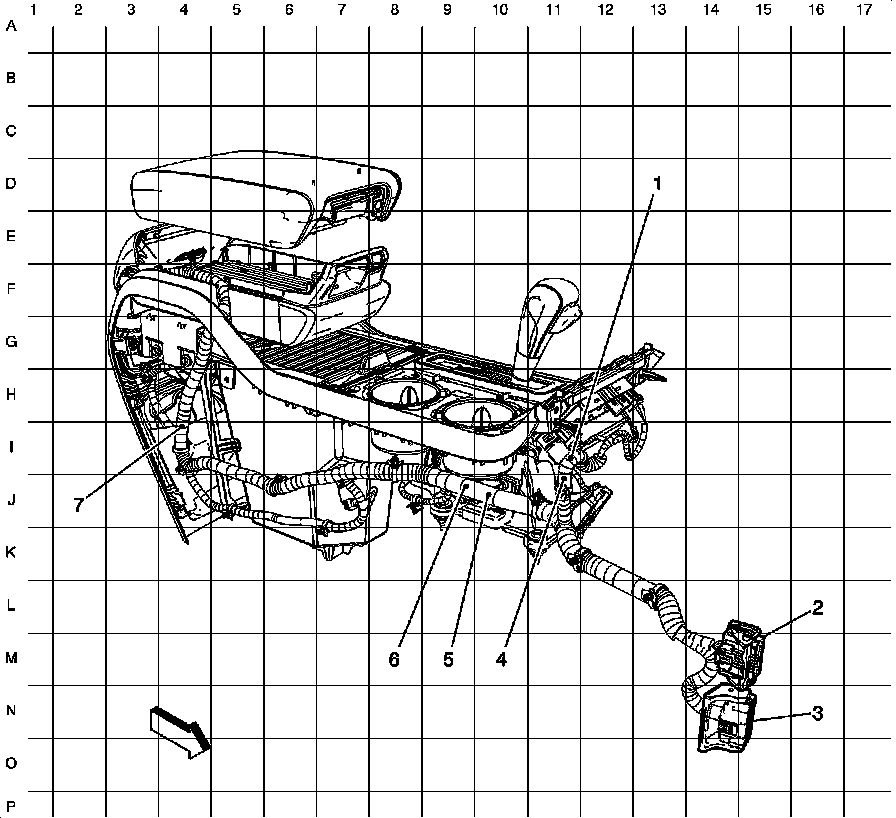

Front Floor Console Harness Routing




1 - J371 (without KA1 or ULD)
2 - X240
3 - X340
4 - J377
5 - J373
6 - J379 (without ULD)
7 - J375
