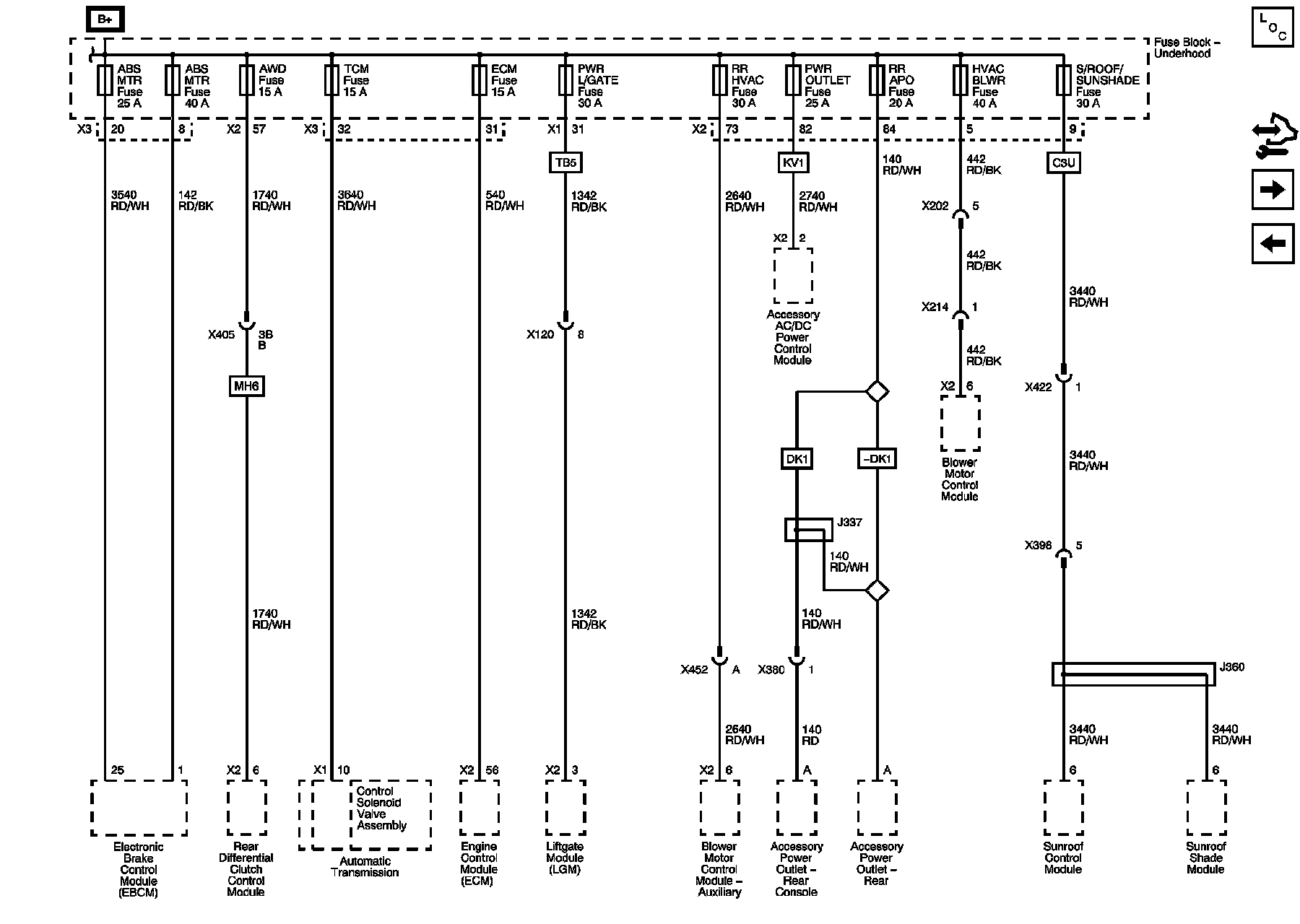

Power Distribution Schematic 8
Power Distribution Schematics
ABS MTR, AWD, ECM, HVAC BLWR, PWR L/GATE, PWR OUTLET, RR APO, RR HVAC, S/ROOF/SUNSHADE and TCM Fuses
