Ignition Coil: Diagrams




Component Connector End Views

Ignition Coil 1





Ignition Coil 2

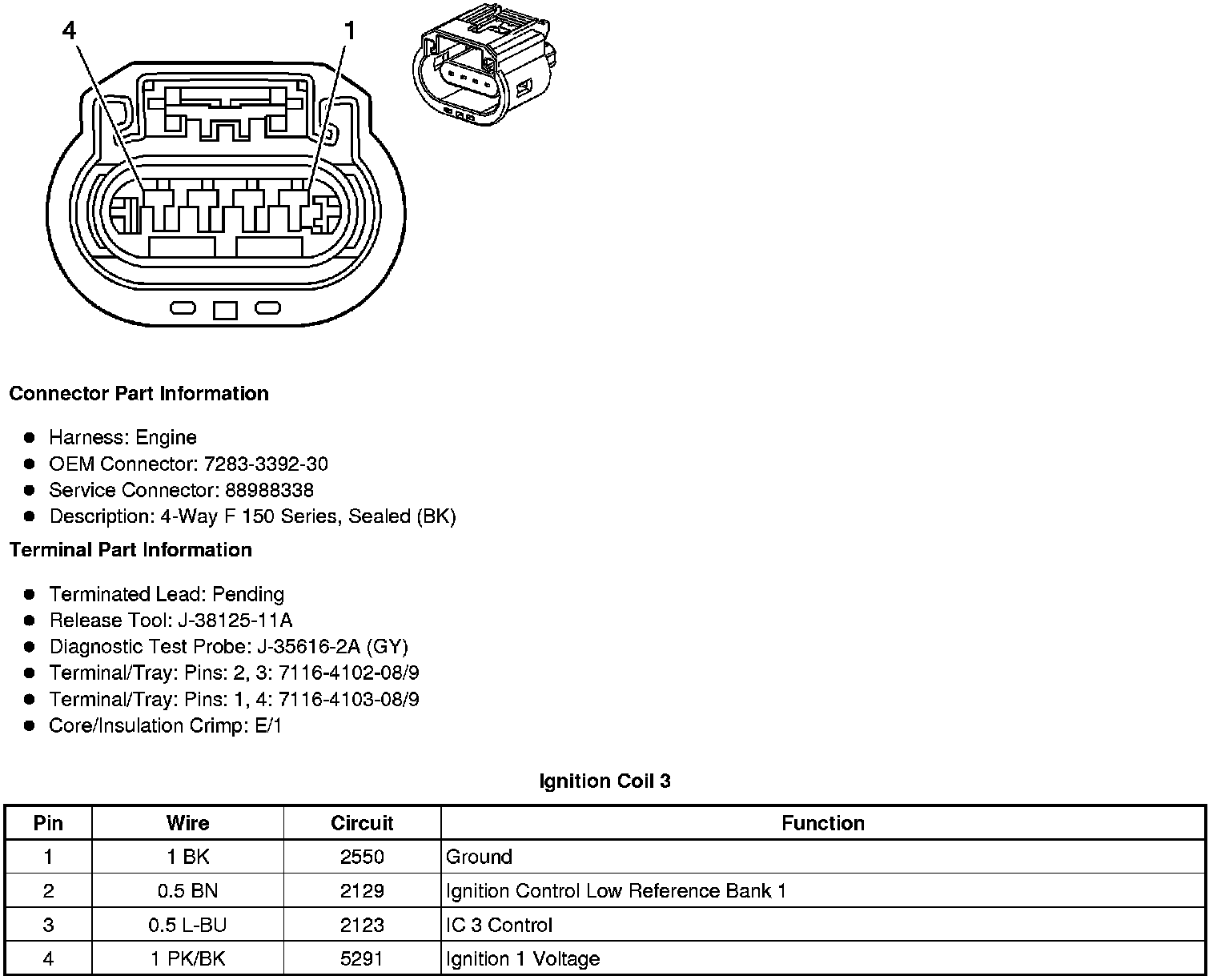

Ignition Coil 3





Ignition Coil 4





Ignition Coil 5

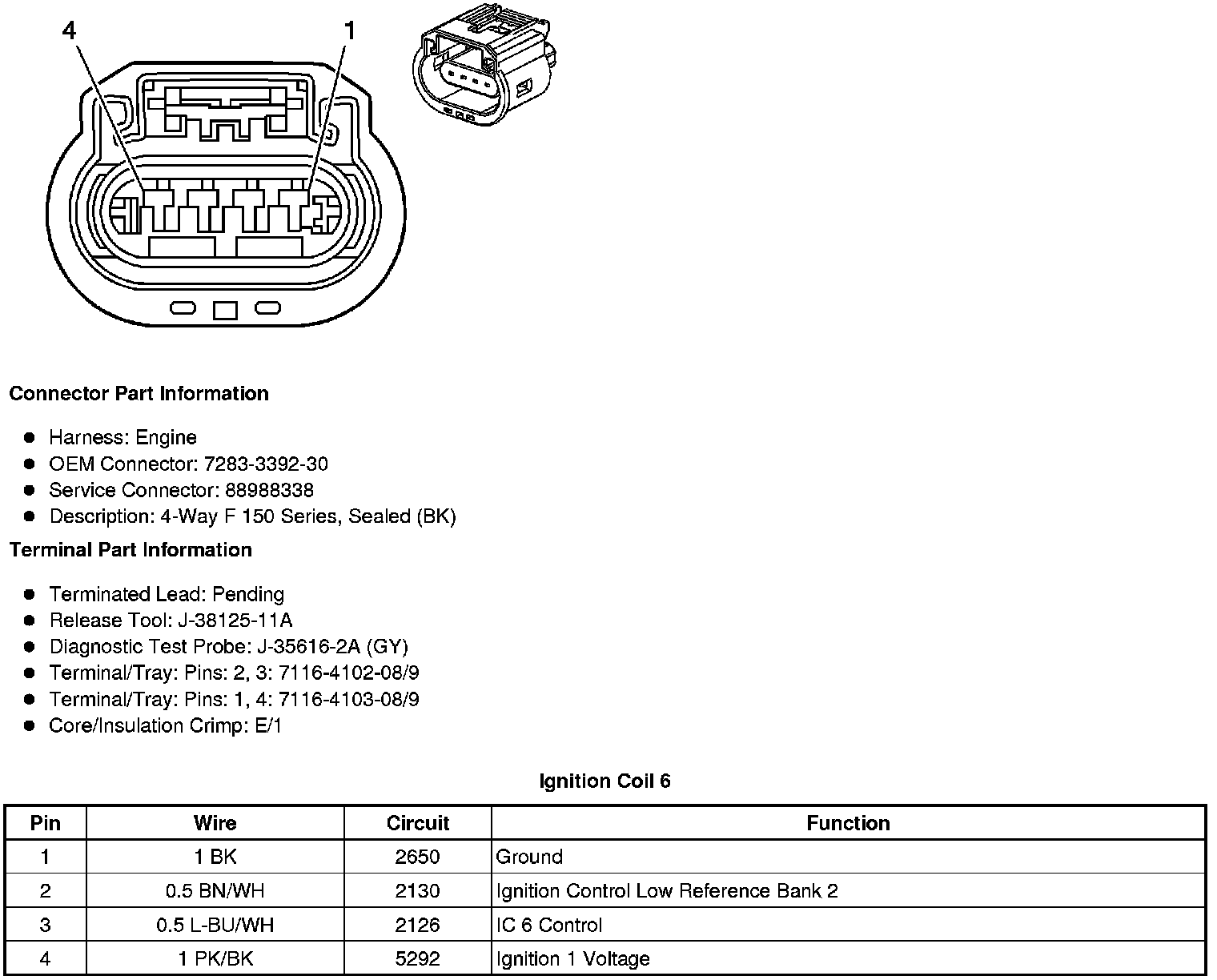

Ignition Coil 6
