Rear Toe Adjustment
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

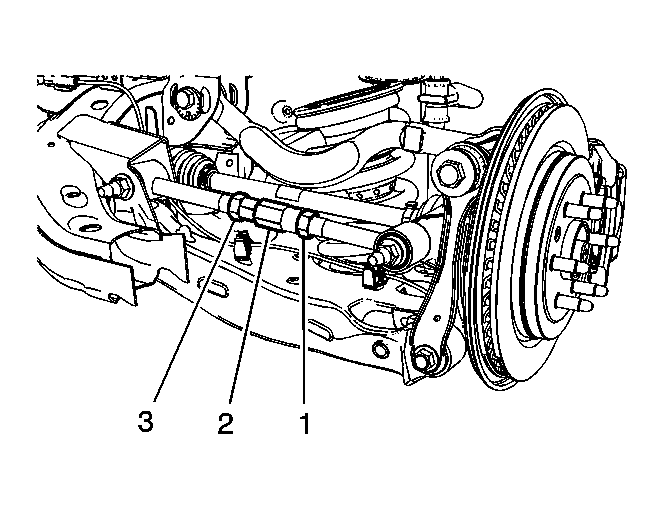

- Loosen the rear suspension adjustment link nuts (1) and (3).
- Rotate the rear suspension adjustment link (2) until the proper specification is achieved. Refer to Wheel Alignment Specifications
- Using a backup wrench, hold the rear suspension adjustment link (2) and tighten outer nut (1) to 150 N.m (110 lb ft), then tighten the inner nut (3) to 150 N.m (110 lb ft).
- Recheck the toe setting after tightening, readjust if necessary.
CAUTION:
Refer to Component Fastener Tightening Caution
.
