Cylinder Head Assembly

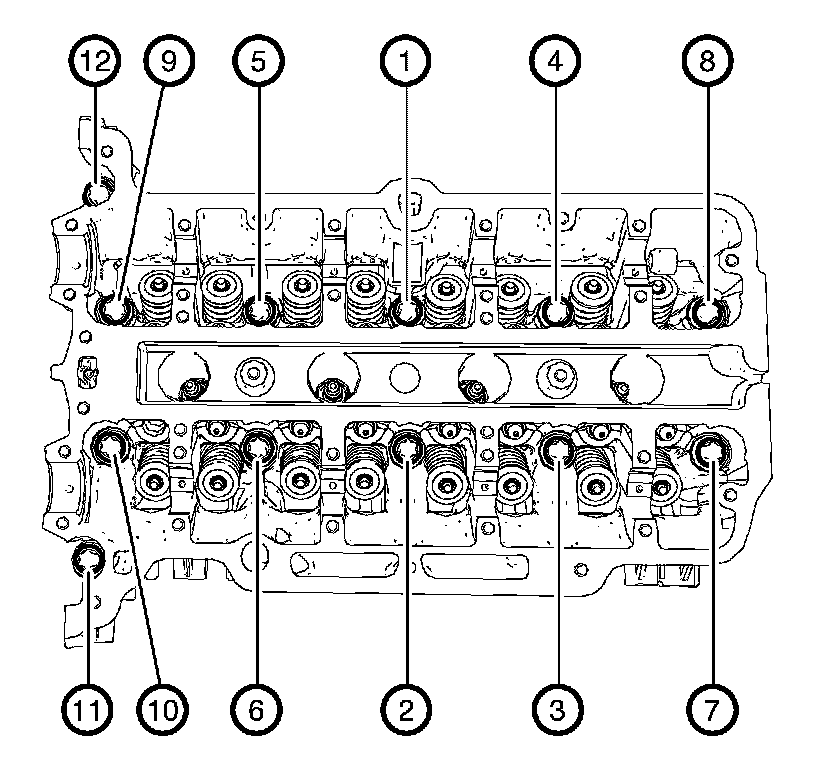

Tighten the cylinder head bolts to 25 Nm (18 lb ft)
Tighten the cylinder head bolts an additional 180°

Refer to Camshaft Replacement. Service and Repair

Refer to Intake Manifold Replacement. Service and Repair

Refer to Exhaust Manifold Replacement. 72. Exhaust Manifold Installation

Refer to Camshaft Gear/Sprocket. Service and Repair
