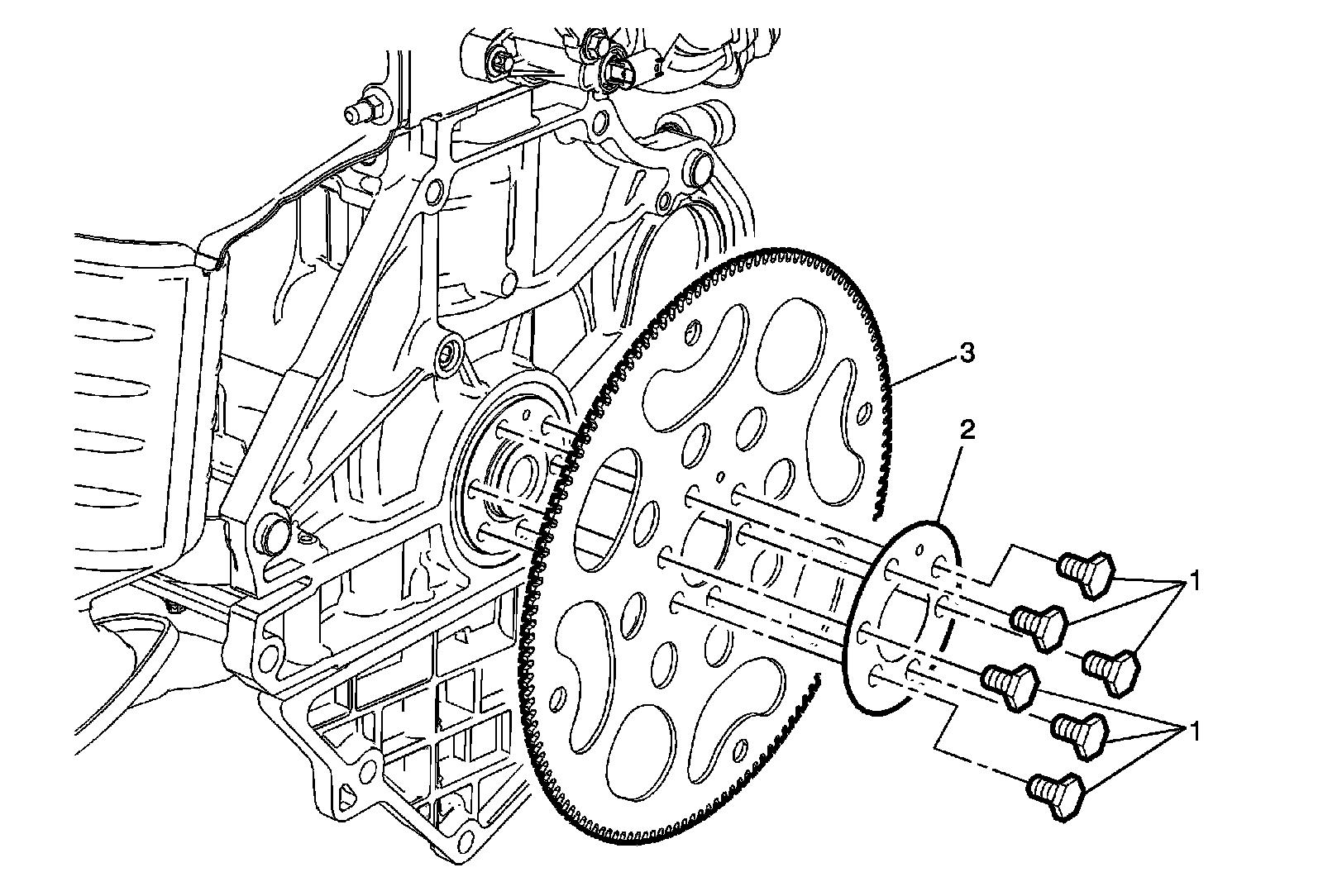

Flex Plate
Tighten the 6 automatic transmission
flex plate bolts in a cross sequence to 35 Nm (26 lb ft)
flex plate bolts in a cross sequence to an additional 30°
flex plate bolts in a cross sequence to an additional 15°
Tighten the 6 automatic transmission
flex plate bolts in a cross sequence to 35 Nm (26 lb ft)
flex plate bolts in a cross sequence to an additional 30°
flex plate bolts in a cross sequence to an additional 15°
