Window Switch - Driver

Door Component Views

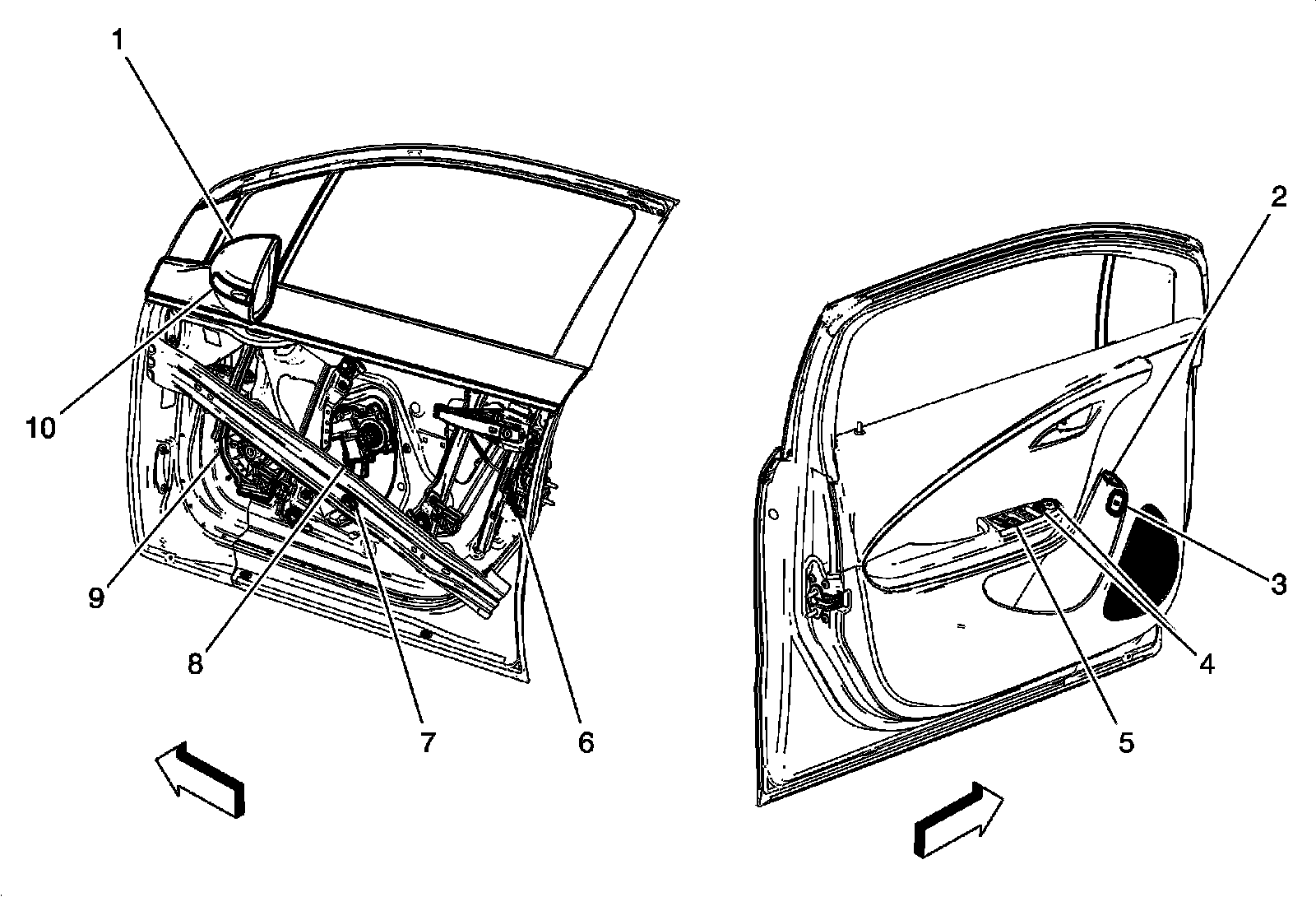

Driver Door Components




1 - A9A Outside Rearview Mirror - Driver
2 - S117 Refuel Request Switch
3 - S113 Charge Port Door Open Request Switch
4 - S52 Outside Rearview Mirror Switch
5 - S79D Window Switch - Driver
6 - A23D Door Latch Assembly - Driver
7 - B63LF Side Impact Sensor - Left Front
8 - M74D Window Motor - Driver
9 - P19AG Speaker - Left Front Door
10 - E4Y Turn Signal Repeater Lamp - Left
