Window Switch - Right Rear




Door Component Views

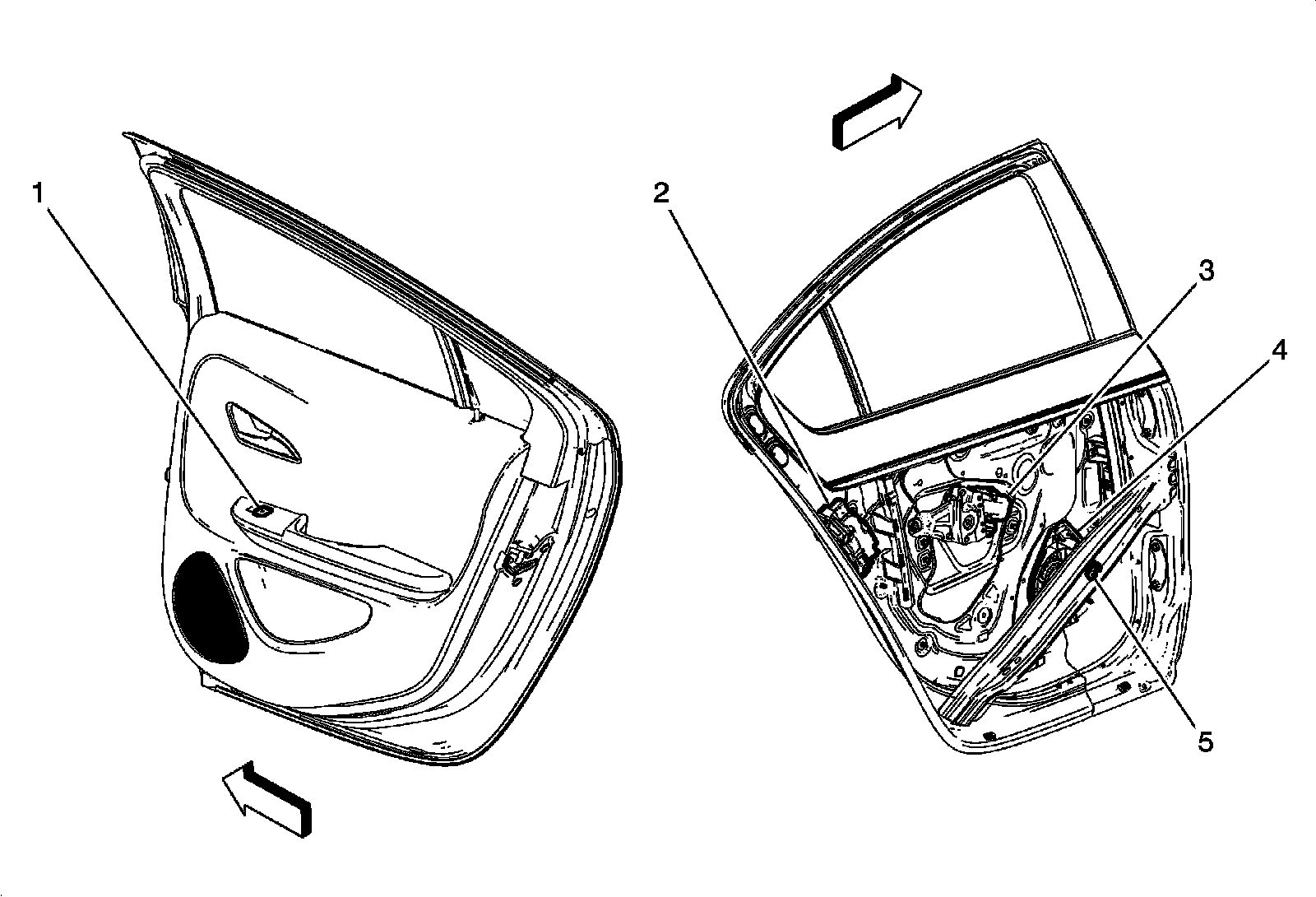

Right Rear Door Components




1 - S79RR Window Switch - Right Rear
2 - A23RR Door Latch Assembly - Right Rear
3 - M74RR Window Motor - Right Rear
4 - P19AM Speaker - Right Rear Door
5 - B63RR Side Impact Sensor - Right Rear
