Chevrolet
>>
2011
>>
Volt
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Immobilizer System
>>
Wiring Schematics
>>
Immobilizer Wiring Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Immobilizer Wiring Schematics

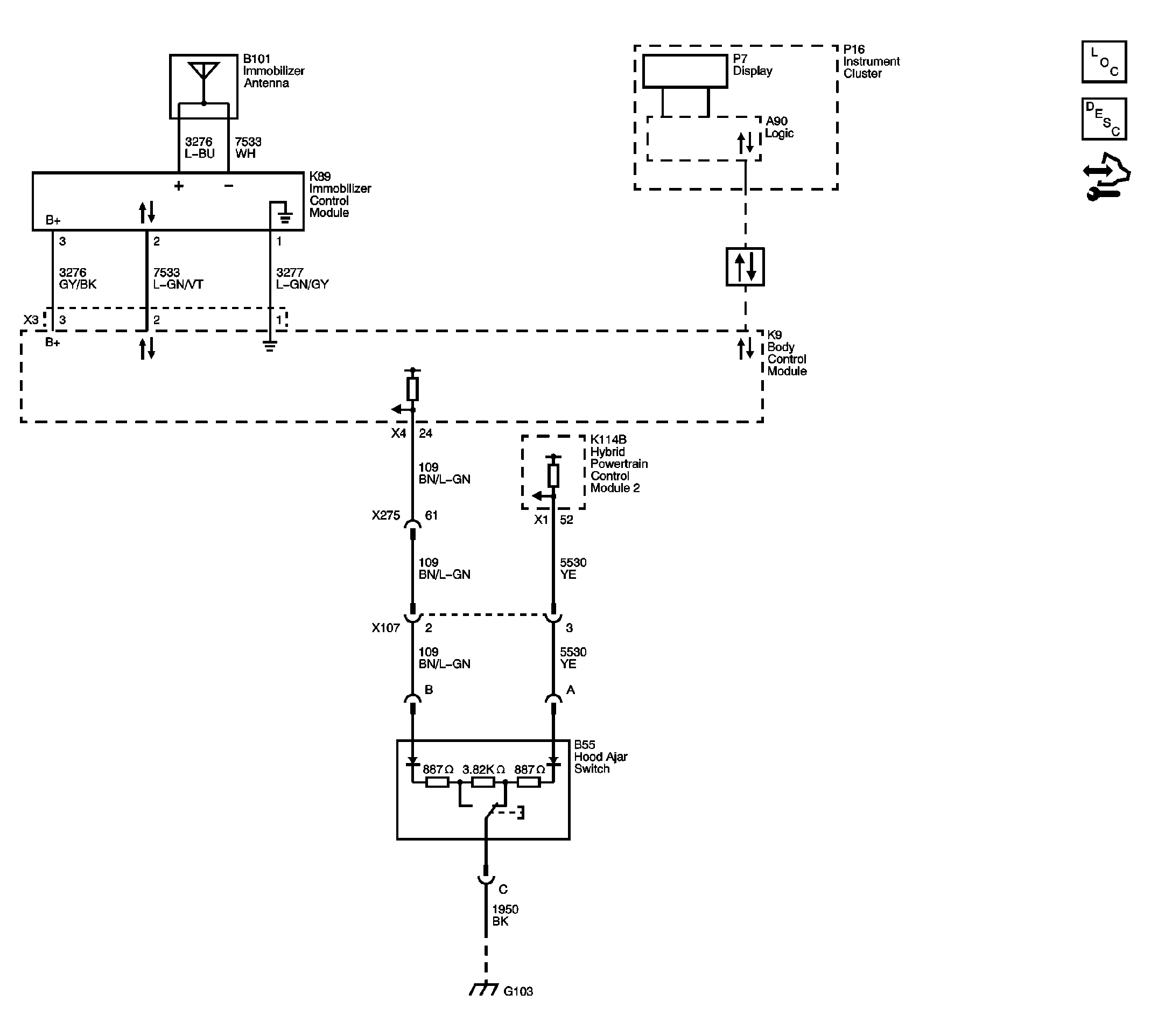

Fig 1: Immobilizer Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
