Removal Procedure

WARNING: Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death.

WARNING: Refer to Hot Exhaust System Warning .

WARNING: Refer to Exhaust Service Warning .

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Lower the rear suspension to gain clearance for the exhaust system removal. Refer to Rear Axle Replacement .

Fig 1: Exhaust Muffler Clamp Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the exhaust muffler clamp nut (1).
Remove the exhaust muffler from the catalytic converter (2).
Remove the rear exhaust muffler (1) from the rear exhaust hanger isolators (2)..

Fig 2: Exhaust Muffler Isolator

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust muffler isolator (1) from the exhaust isolator rod.

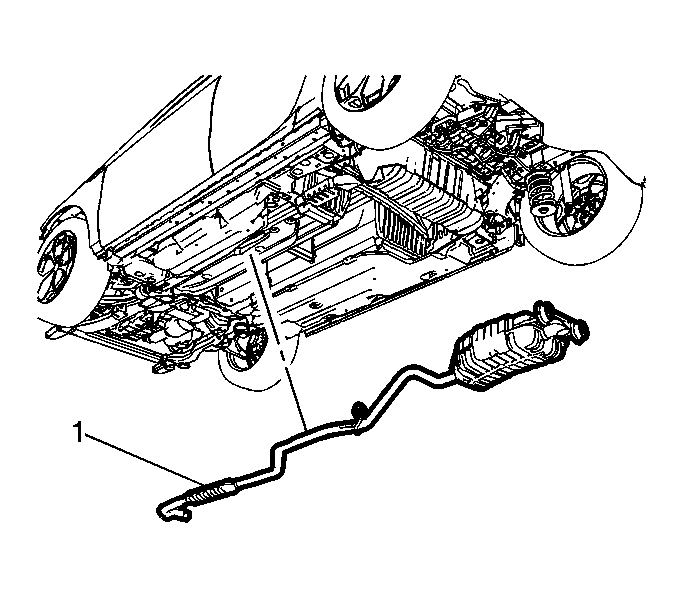

Fig 3: Exhaust Muffler Assembly

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, carefully lower the exhaust muffler assembly (1).
