Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

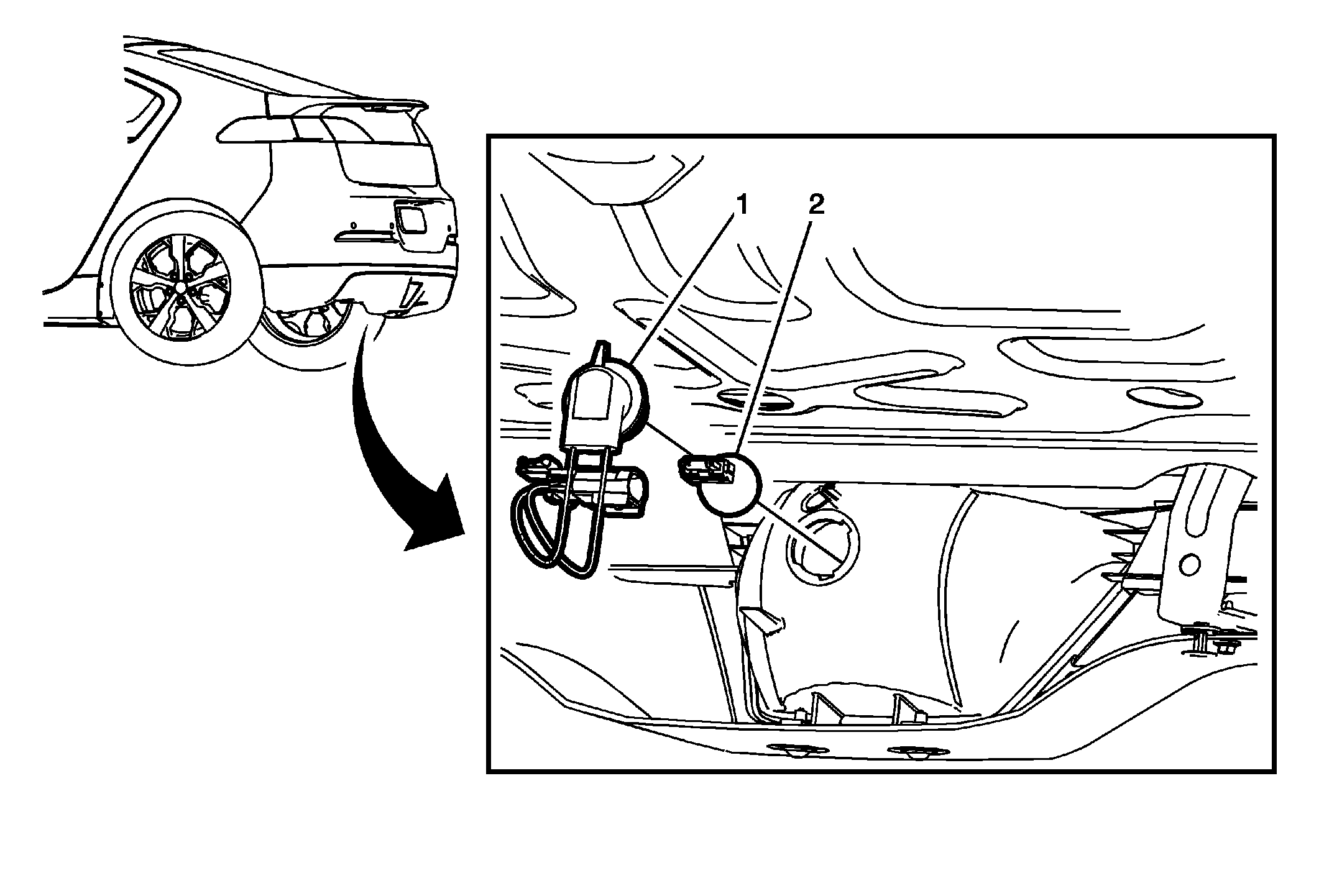

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the underbody rear air deflector. Refer to Underbody Rear Air Deflector Replacement (Volt) .
1	Back Up Lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counter-clockwise and remove from the lamp housing.
2	Back Up Lamp Bulb TIP: Do not touch the bulb with bare fingers, use a cotton shop towel to cover when replacing the bulb.
