Backup Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

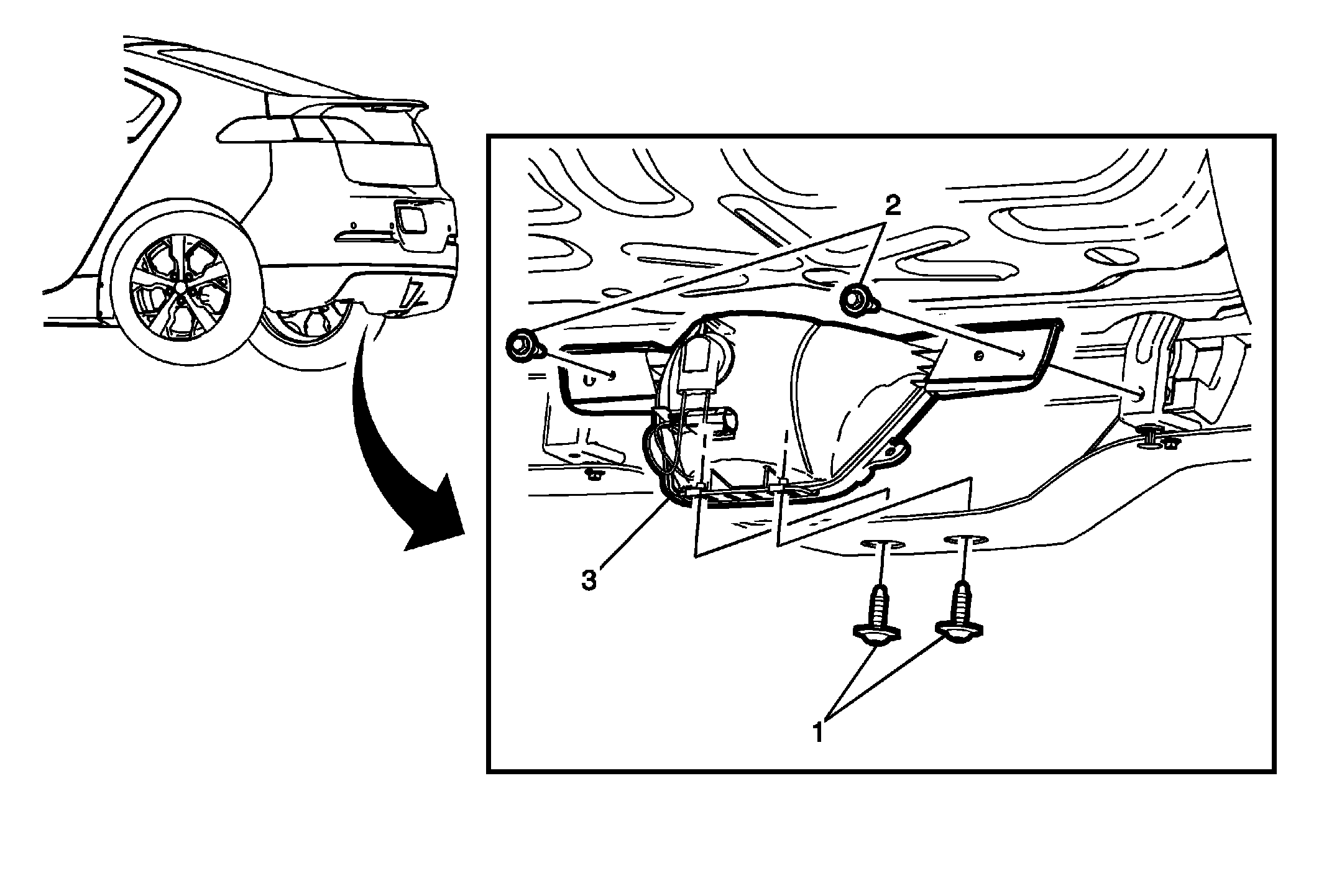

Fig 1: Backup Lamp
GM2382062Courtesy of GENERAL MOTORS COMPANY
Backup Lamp Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the underbody rear air deflector. Refer to Underbody Rear Air Deflector Replacement (Volt) .
  2. Disconnect the electrical connector from the tail lamp harness.
  3. Transfer the electrical connector jumper harness as needed.
1 Rear Bumper Fascia Lower Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Energy Absorber Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Backup Lamp
