Installation Procedure
WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

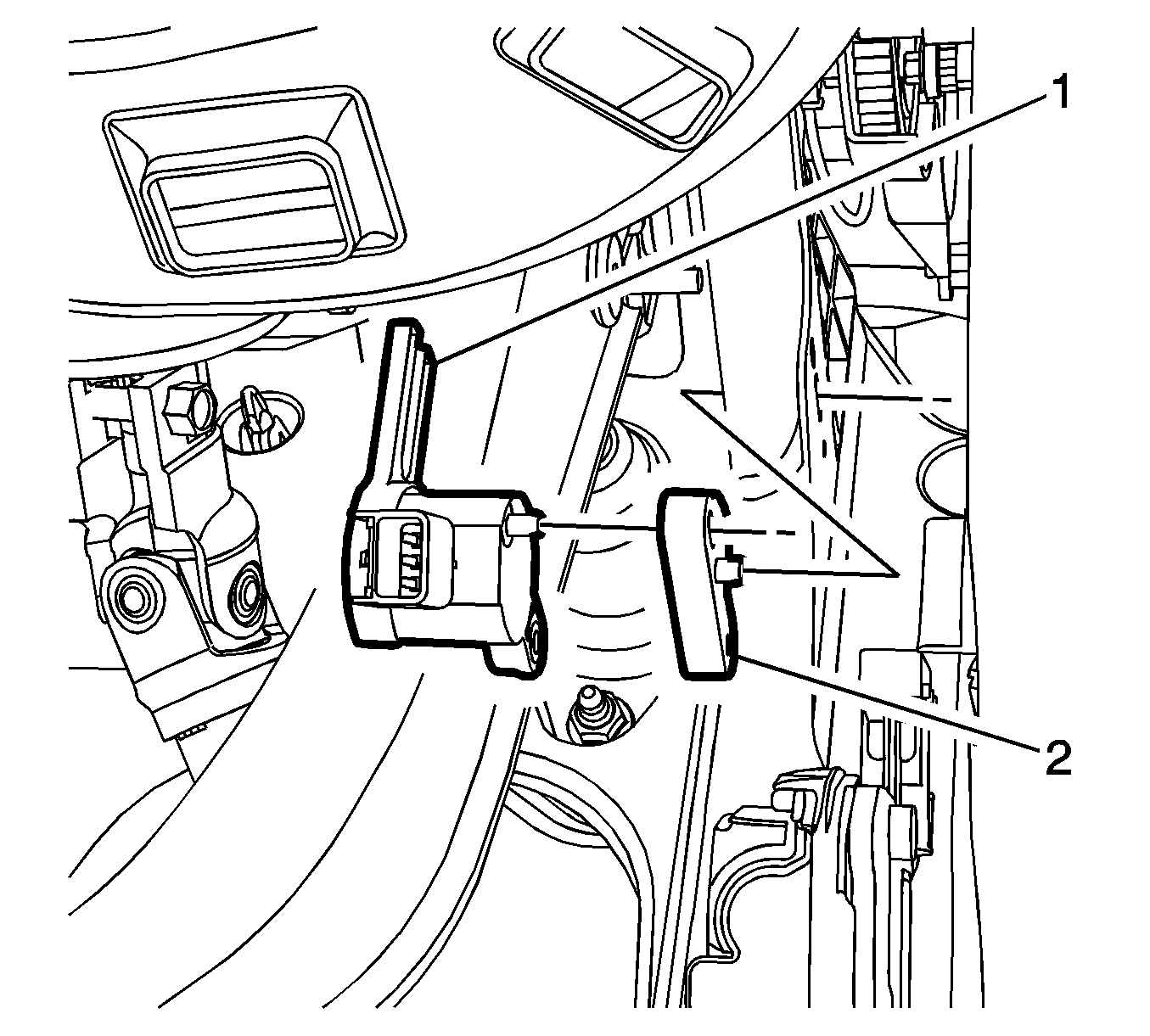

- Align the locating pin on the brake pedal position sensor (1) to the hole on the spacer (2).
- Align the locating pin on the brake pedal position sensor to the hole on the brake pedal assembly bracket.
- Ensure the brake pedal position sensor fork is properly located on the brake pedal pin.

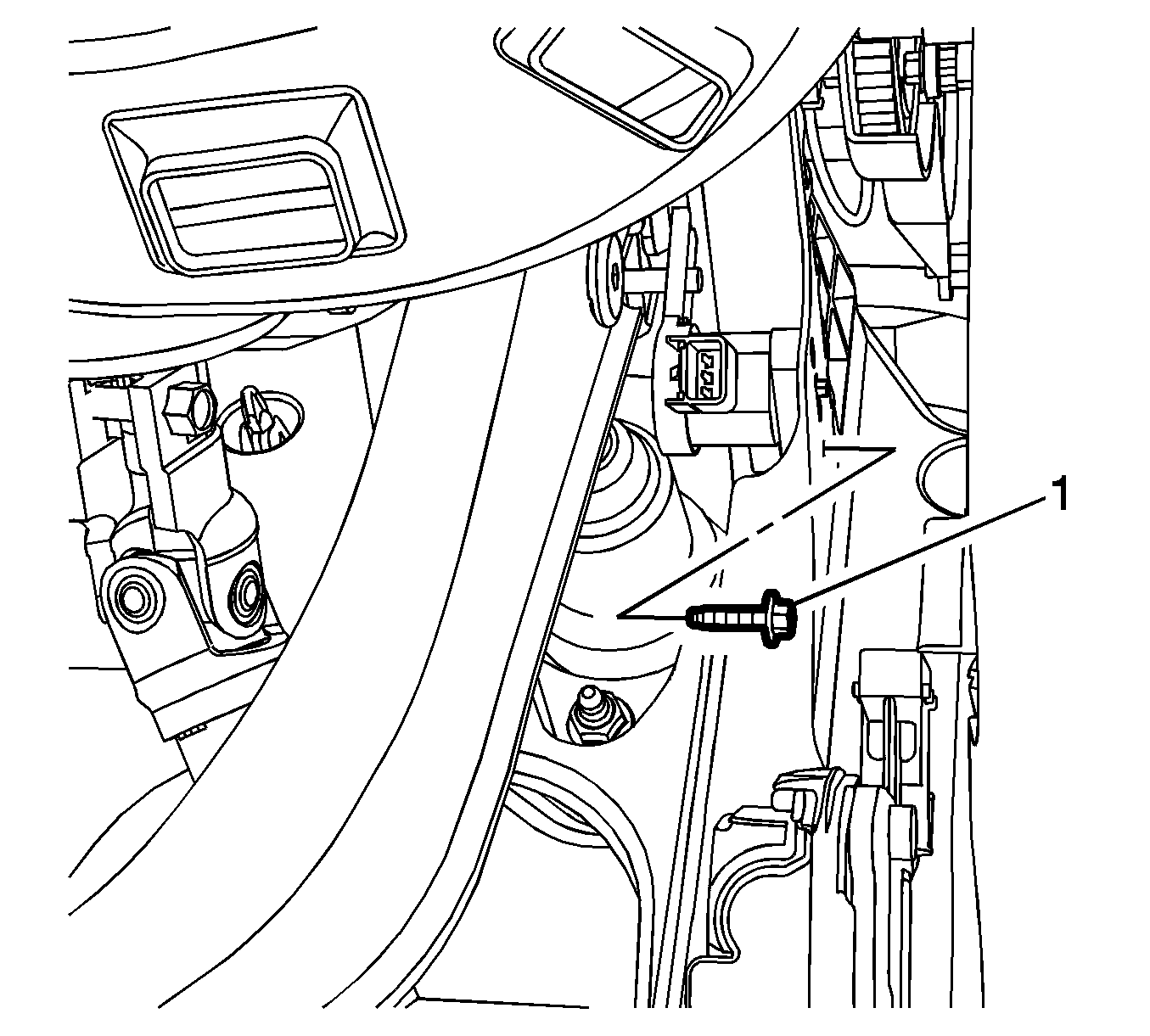

- Install the brake pedal position sensor bolt (1) and tighten to 9 N.m (80 lb in).
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
CAUTION:
Refer to Fastener Caution .
