Tail Lamp Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

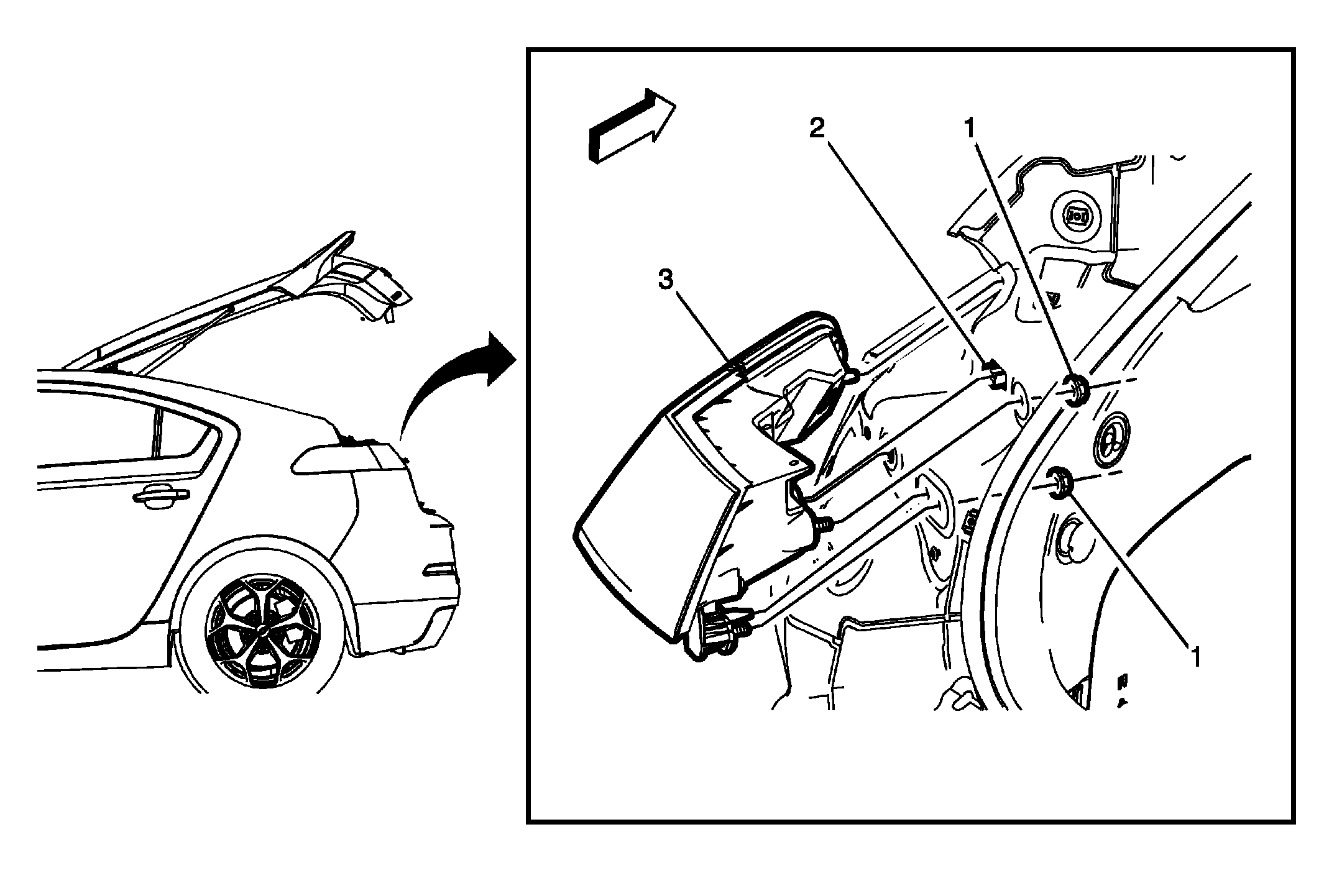

Fig 1: Tail Lamp

GM2382070

Courtesy of GENERAL MOTORS COMPANY

Tail Lamp Replacement

Callout	Component Name
Preliminary Procedures Remove either the LH or RH rear bumper fascia inner guide. Refer to Rear Bumper Fascia Inner Guide Replacement . Remove the quarter panel tail lamp upper molding. Refer to Quarter Panel Tail Lamp Upper Molding Replacement . Reposition the sound deadening material in order to access the tail lamp nuts.
1	Tail Lamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Tail Lamp Electrical Connector
3	Tail Lamp Assembly Procedure Upon removal, grasp the tail lamp and give a quick pull rearward in order to disengage the outer tail lamp locator pin from the tail lamp pocket. TIP: The tail lamp is serviced as a unit, the tail lamp is (LED) Light Emitting Diode.
