Front Side Door Window Regulator Replacement

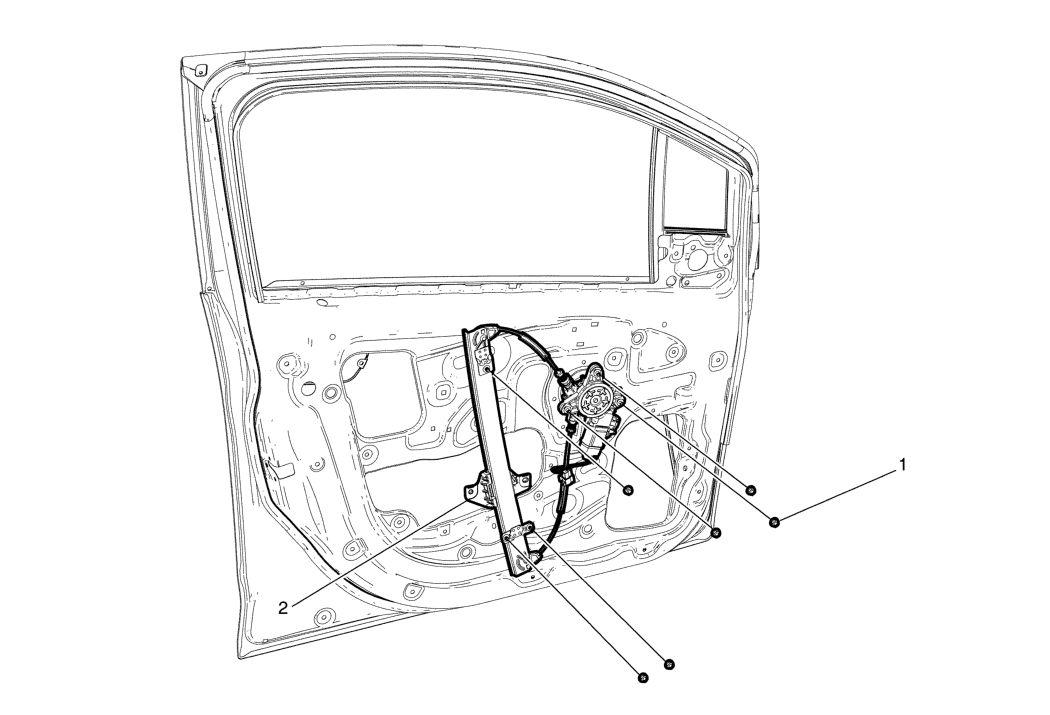

Fig 1: Front Side Door Window Regulator
GM2309145Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door window. Refer to Front Side Door Window Replacement .
1 Front Side Door Window Regulator Nut (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Front Side Door Window Regulator Assembly
