Folding Top Control Module Replacement

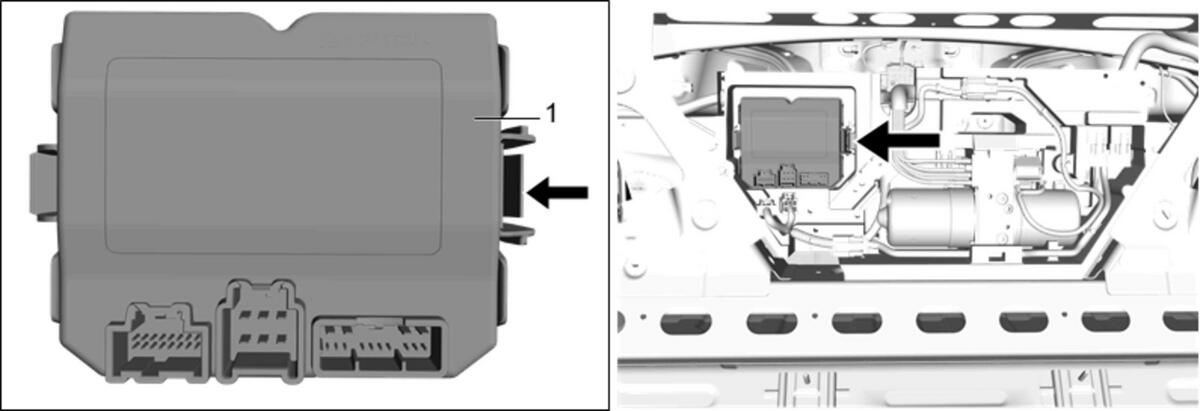

Fig 1: Folding Top Control Module
GM4261109Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Back Cushion Pad Replacement (Convertible)
1 Folding Top Control Module

Procedure

  1. Disconnect the electrical connections.
  2. Remove tie strap.
  3. Release module and swing out of holder.
  4. Perform the necessary programming and setup procedure:Control Module References
