Installation Procedure

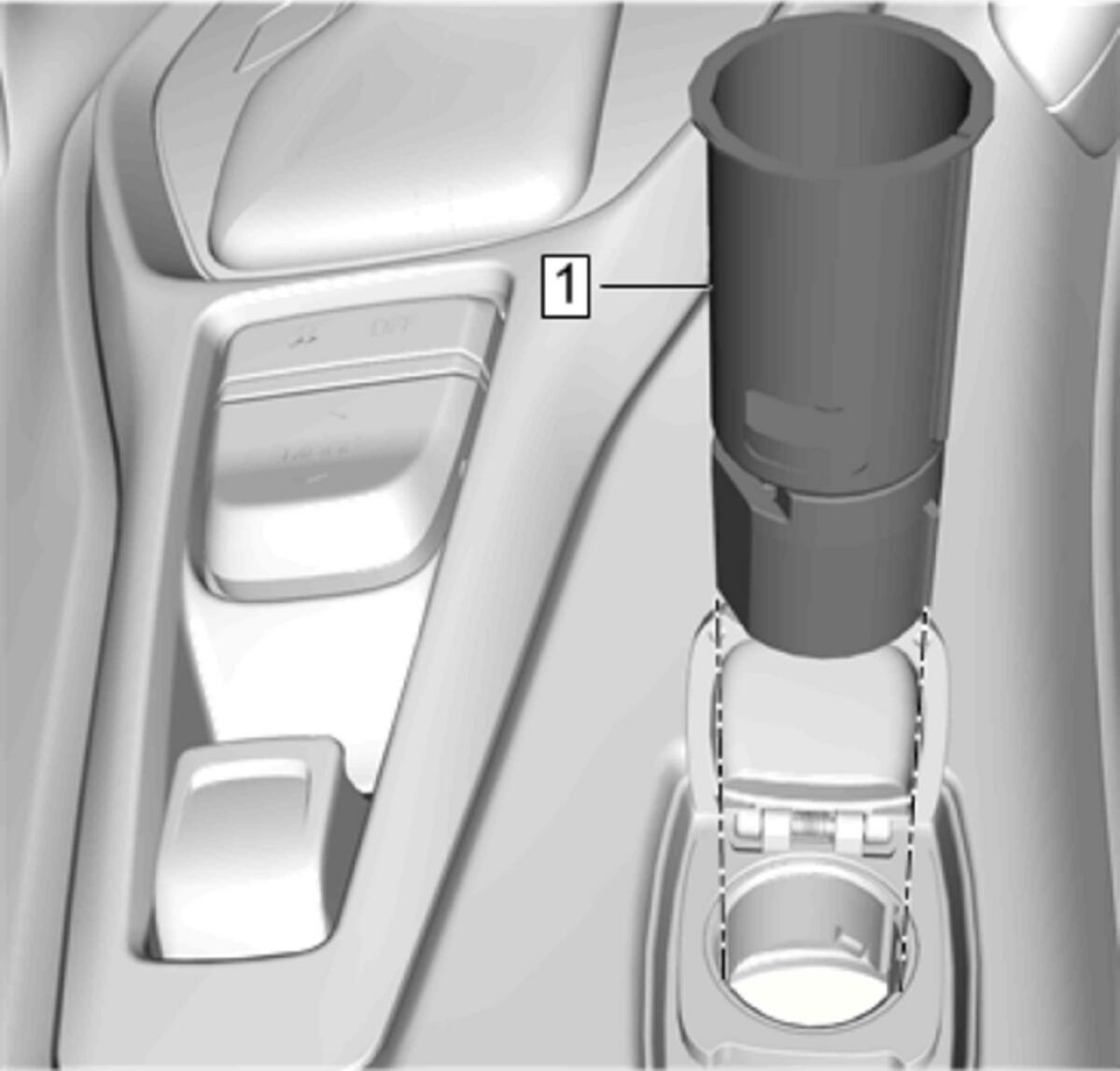

    Fig 1: Accessory Power Receptacle Alignment
    GM4193816Courtesy of GENERAL MOTORS COMPANY
  1. Align the accessory power receptacle (1) to the slots in the opening.
  2. Install the receptacle (1) by pressing into place until fully seated.
  3. Install Front Floor Console Upper Panel - Front Floor Console Upper Panel Replacement
  4. Install Accessory Power Receptacle Fuse.
