Installation Procedure

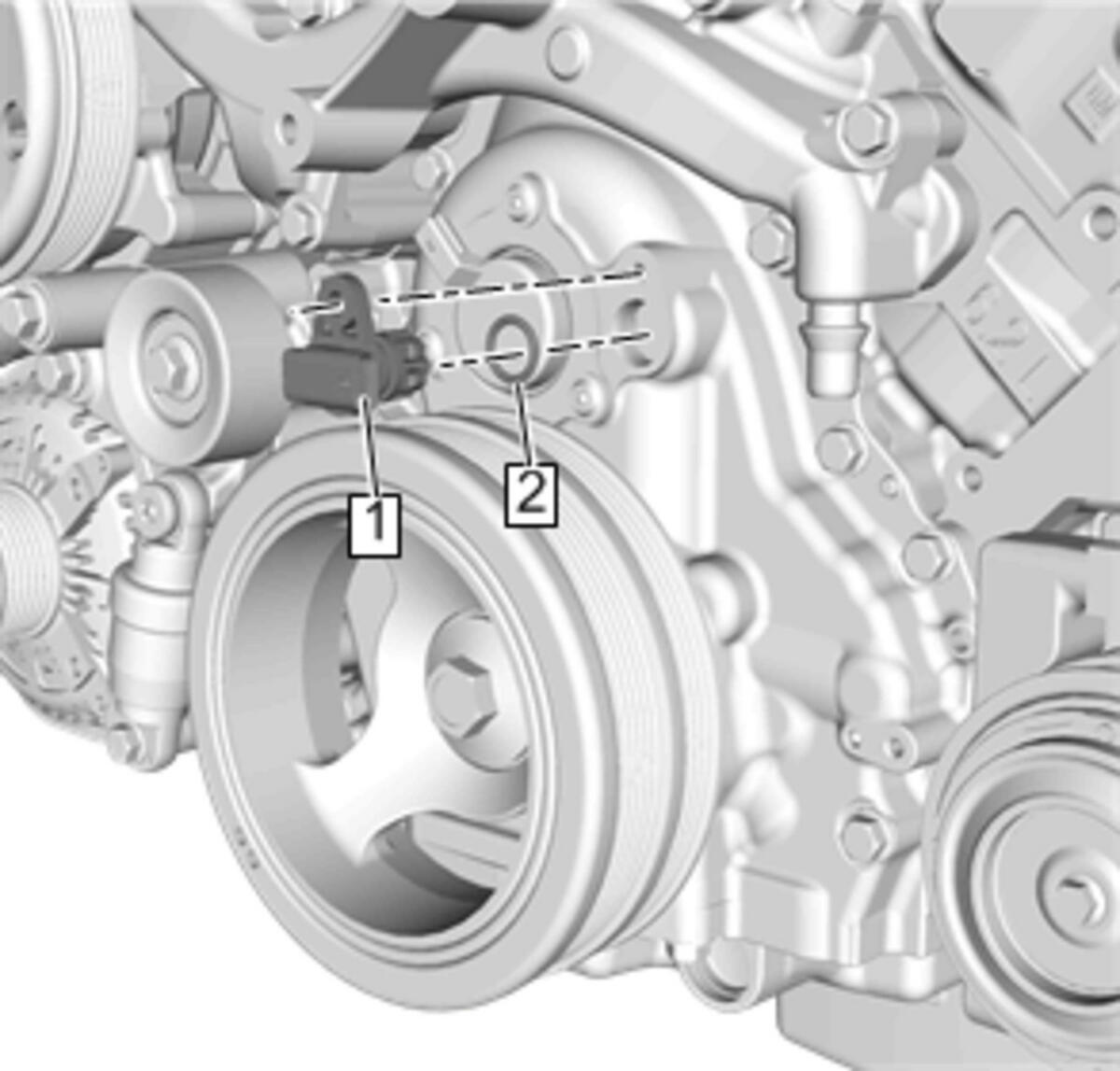

    Fig 1: Camshaft Position Sensor
    GM4212006Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If a new sensor is not being installed, inspect the camshaft sensor seal (2) and replace as needed.

  1. Install the camshaft position sensor (1) into the engine front cover.

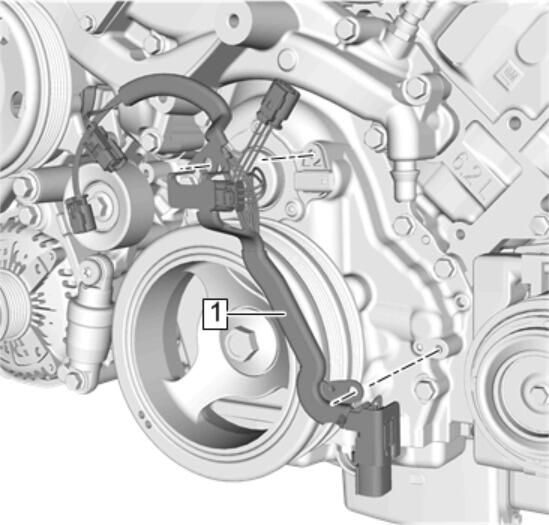

    2. Fig 2: Camshaft Position Sensor Bracket
    GM4211991Courtesy of GENERAL MOTORS COMPANY
  2. Position the camshaft position sensor bracket (1) in place.

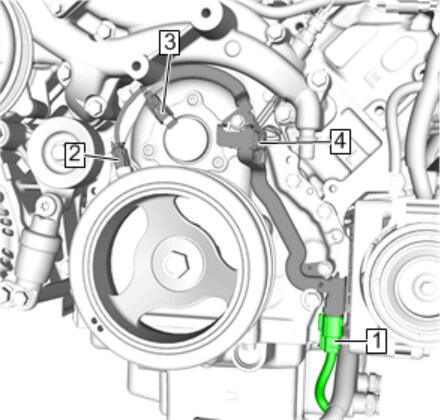

    3. Fig 3: Engine Wiring Harness Connector
    GM4211962Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness connector (1), oil pump flow control valve connector (2), camshaft position actuator solenoid connector (3), camshaft position sensor connector (4).

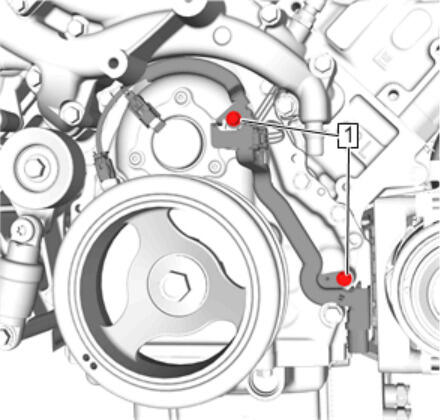

    4. Fig 4: Camshaft Position Sensor Bracket Fasteners
    GM4211965Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the camshaft position sensor bracket fasteners (1) and tighten to 25 N.m (18 lb ft).
  5. Install the drive belt. Drive Belt Replacement - Accessory
  6. Install Air Cleaner Resonator-Air Cleaner Outlet Duct to Engine - Air Cleaner Resonator Replacement (Air Cleaner Outlet Duct to Engine)
