Engine Coolant Temperature Sensor Replacement

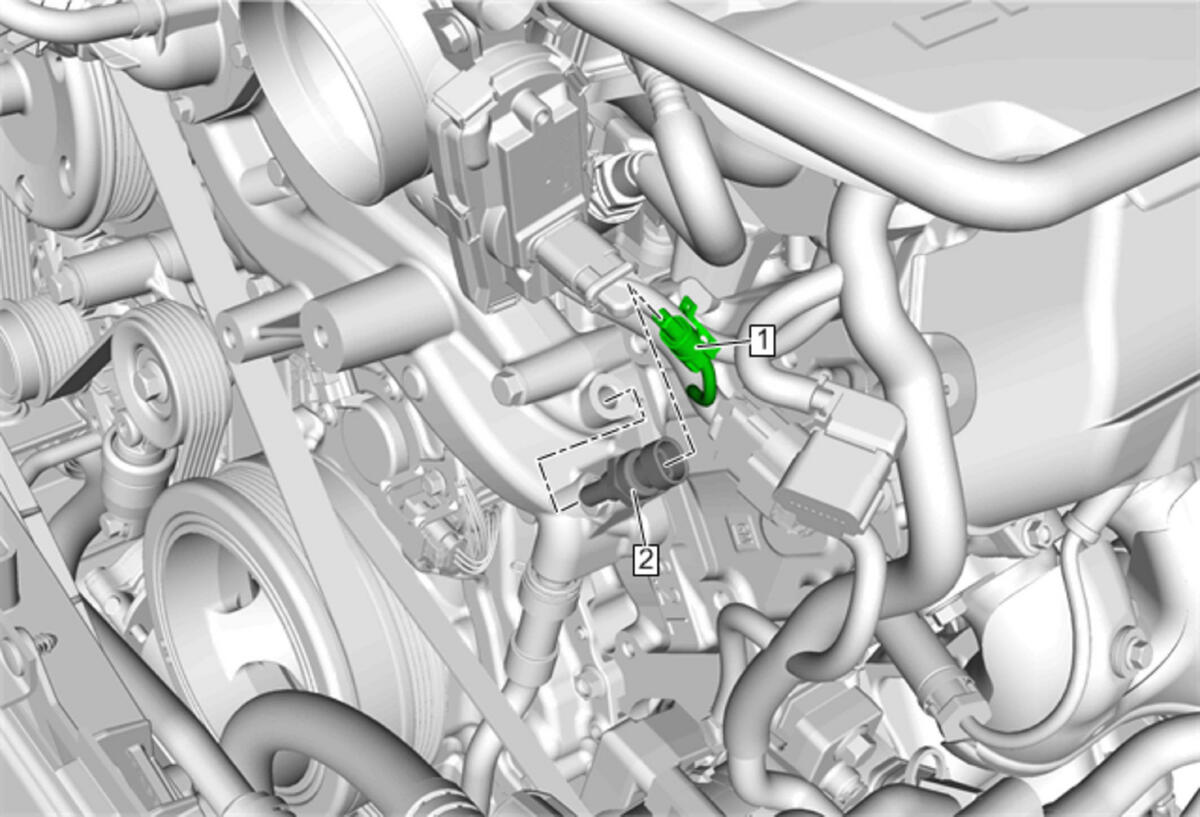

Fig 1: Engine Coolant Temperature Sensor
GM4206066Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Duct Replacement
1 Electrical Connector
2 Engine Coolant Temperature Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
20 N.m (15 lb ft)
