Removal Procedure

    WARNING:

    Refer to Gasoline/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Remove Fuel Tank Replacement
  2. Remove Fuel Tank Vent Valve Hose Replacement (At Tank) Fuel Tank Vent Valve Hose Replacement (Fuel Tank Fuel Pump Module)  at Fuel Tank Fuel Pump Module.
  3. Remove Fuel Pump Fuel Feed Hose Replacement
  4. Disconnect the electrical connector.

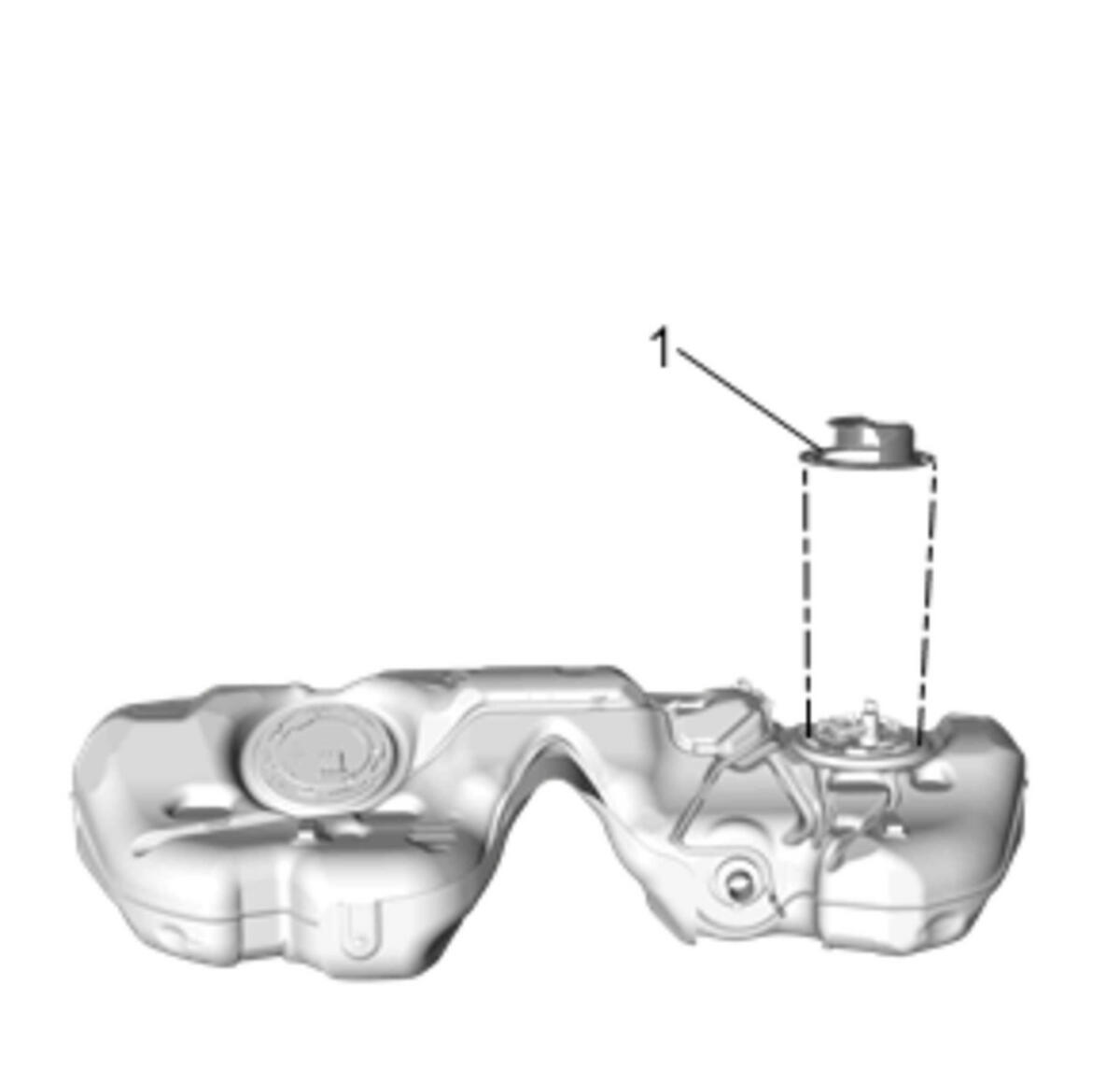

    5. Fig 1: Lock Ring
    GM4179557Courtesy of GENERAL MOTORS COMPANY
  5. Use the CH 45722  wrench by turning counter clockwise and remove the lock ring (1)

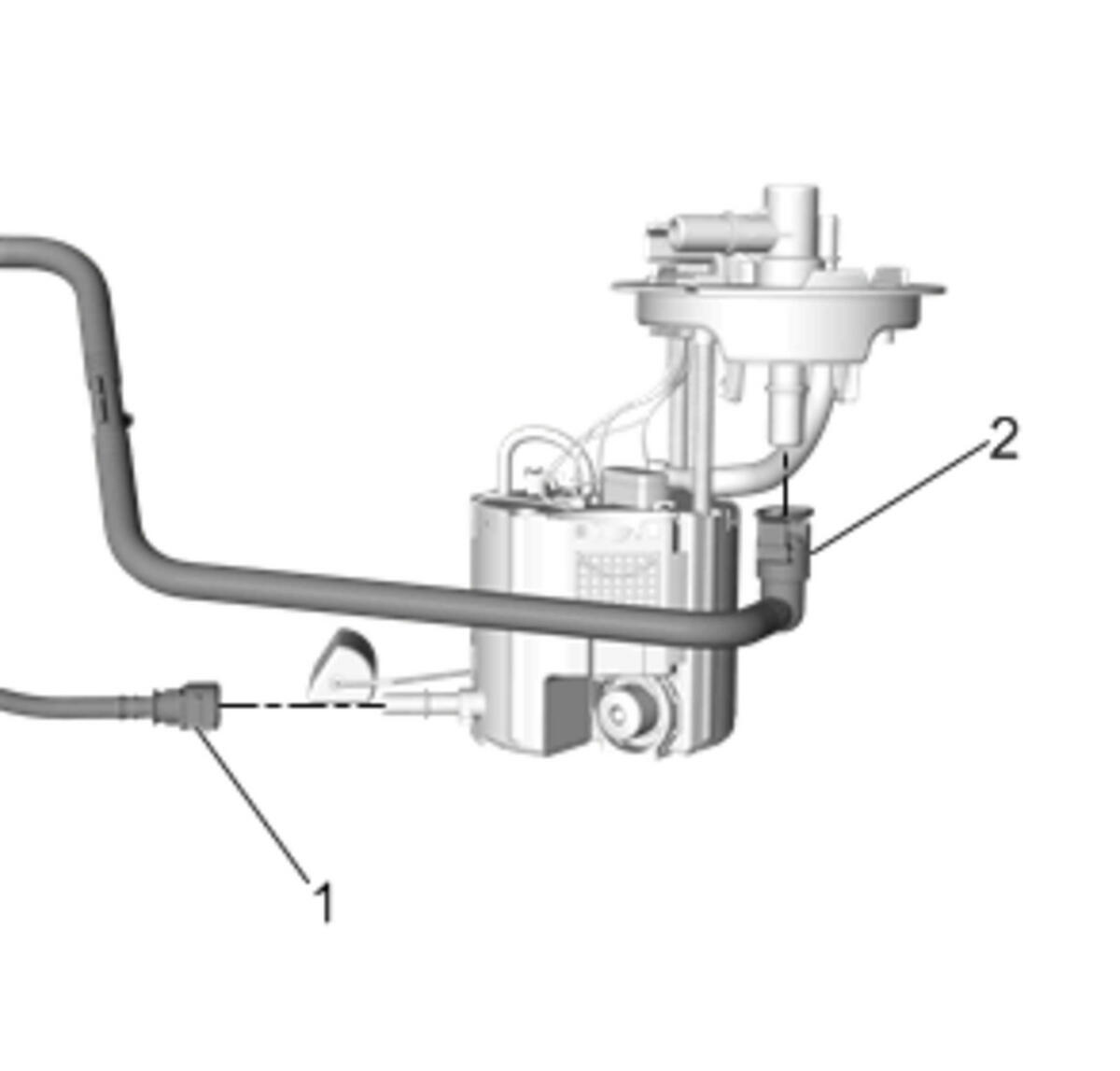

    6. Fig 2: Transfer Hose
    GM4179561Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect Transfer Hose (1) - Plastic Collar Quick Connect Fitting Service
  7. Disconnect Fuel Tank Vent Hose (2) - Plastic Collar Quick Connect Fitting Service

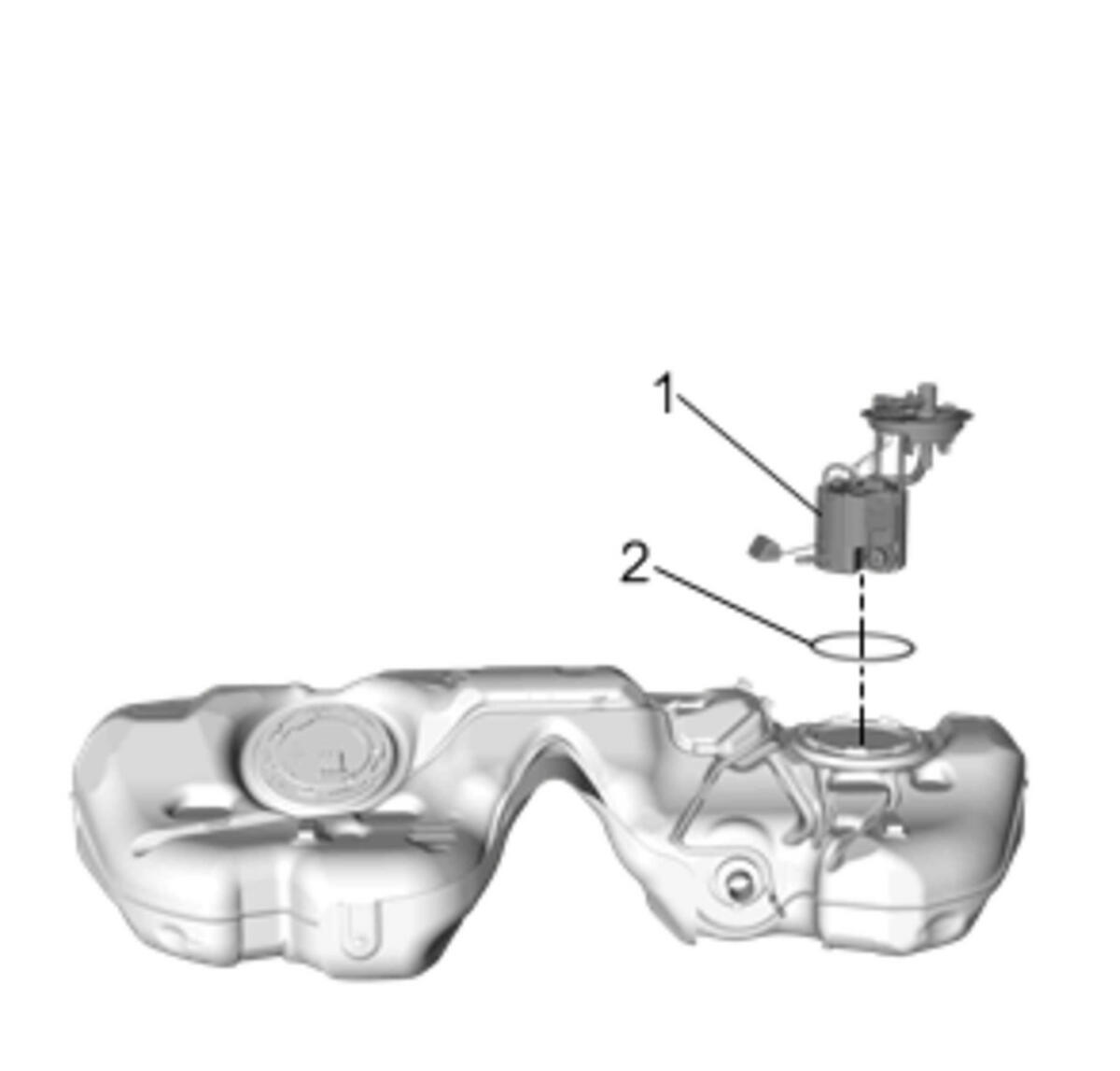

    8. Fig 3: Fuel Tank Fuel Pump Module
    GM4179562Courtesy of GENERAL MOTORS COMPANY
  8. Remove Fuel Tank Fuel Pump Module (1)
  9. Remove Fuel Pump Seal (2) and DISCARD
