Fuel Tank Pressure Sensor Replacement

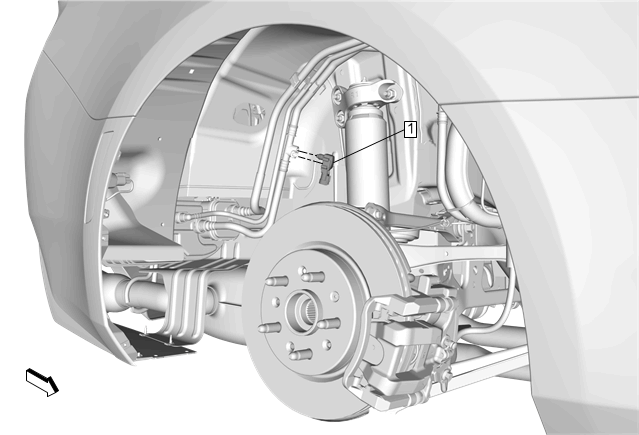

Fig 1: Fuel Tank Pressure Sensor
GM4170133Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Wheelhouse Liner Replacement
1 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
