Intake Air Splash Shield Replacement

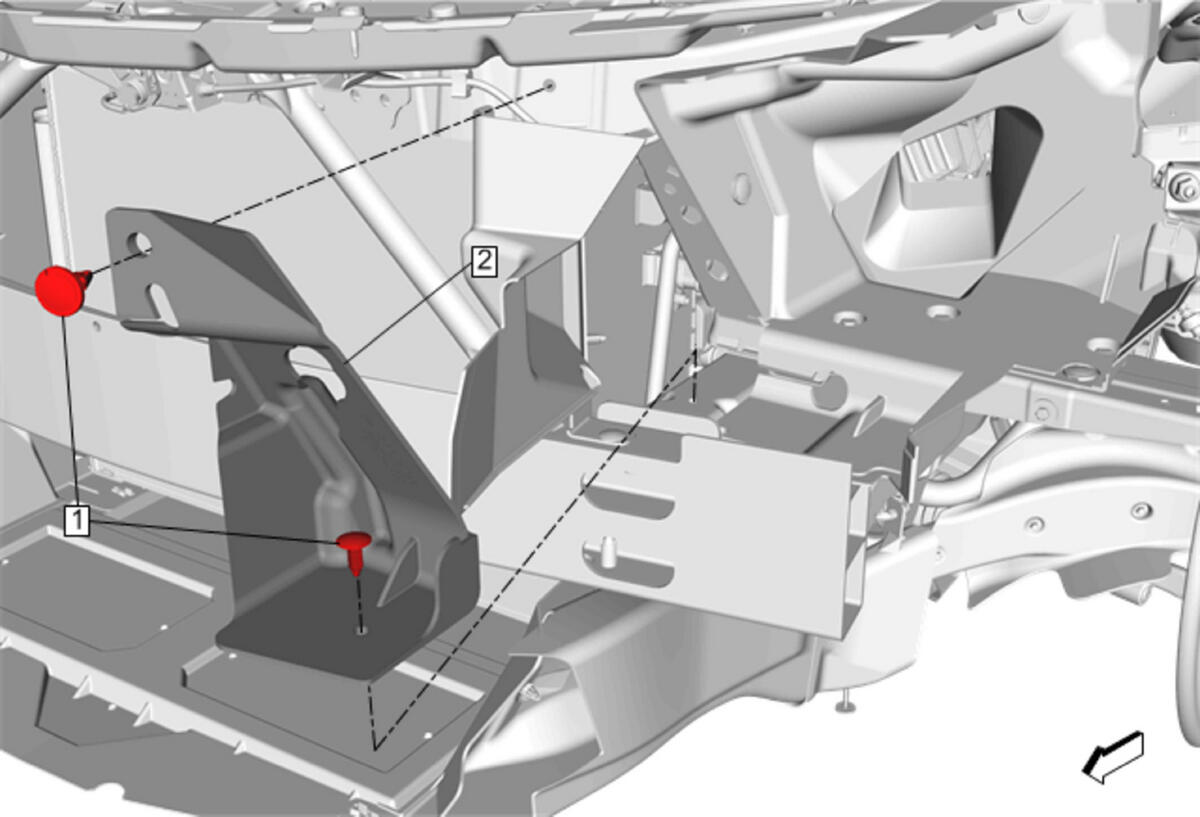

Fig 1: Intake Air Splash Shield
GM4195663Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Headlamp Replacement (HID)Headlamp Replacement (Halogen)
  2. Remove ground wire bolt and reposition ground wire and harness.
1 Intake Air Splash Shield Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
