Powertrain Expansion BUS

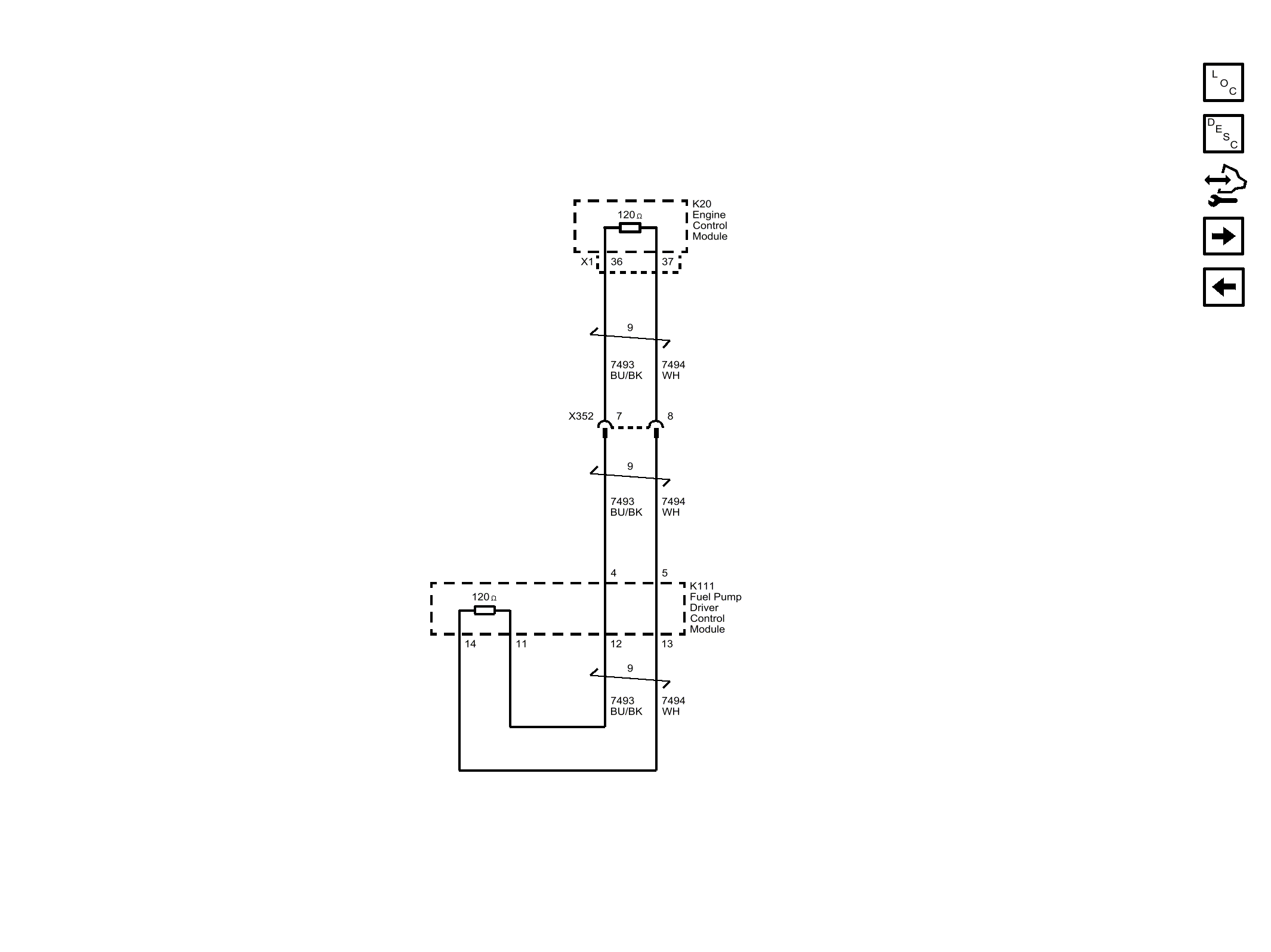

Fig 1: Powertrain Expansion BUS
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
