Front Wheel Speed Sensor Replacement

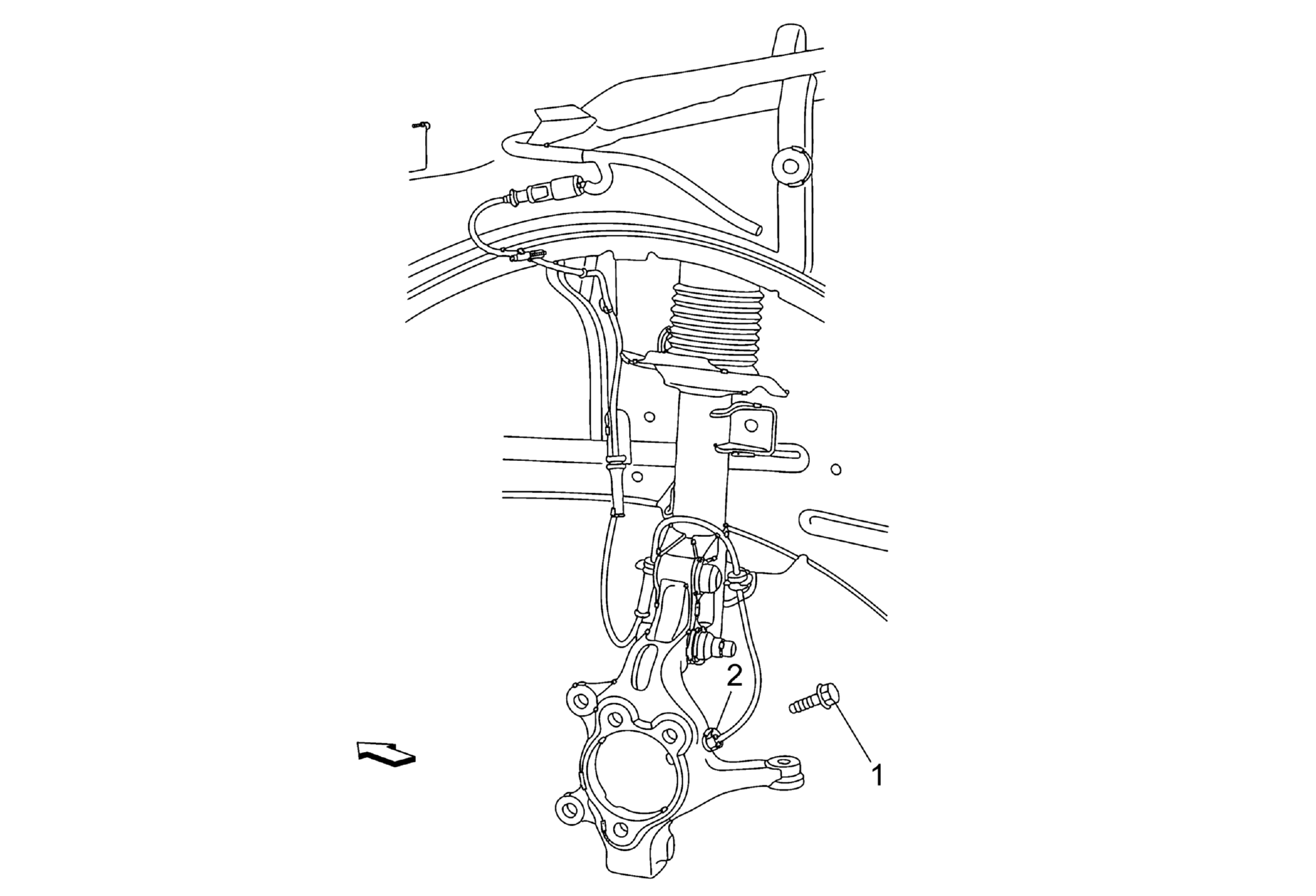

Fig 1: Front Wheel Speed Sensor With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle Tire and Wheel Removal and Installation Front Wheelhouse Liner Replacement
1	Wheel Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Wheel Speed Sensor Procedure Wheel Speed Sensor Connector - Disconnect

Callout

Component Name

Preliminary Procedure

Wheel Speed Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Wheel Speed Sensor
Procedure
Wheel Speed Sensor Connector - Disconnect
